SPCE652.100 Expander,8Ein/2Aus,Abreiss.

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

temporarily out of stock, please check availability with your local Customer Service team.

  • V54542-F106-A100
  • 4025515470854
Product information "SPCE652.100 Expander,8Ein/2Aus,Abreiss."

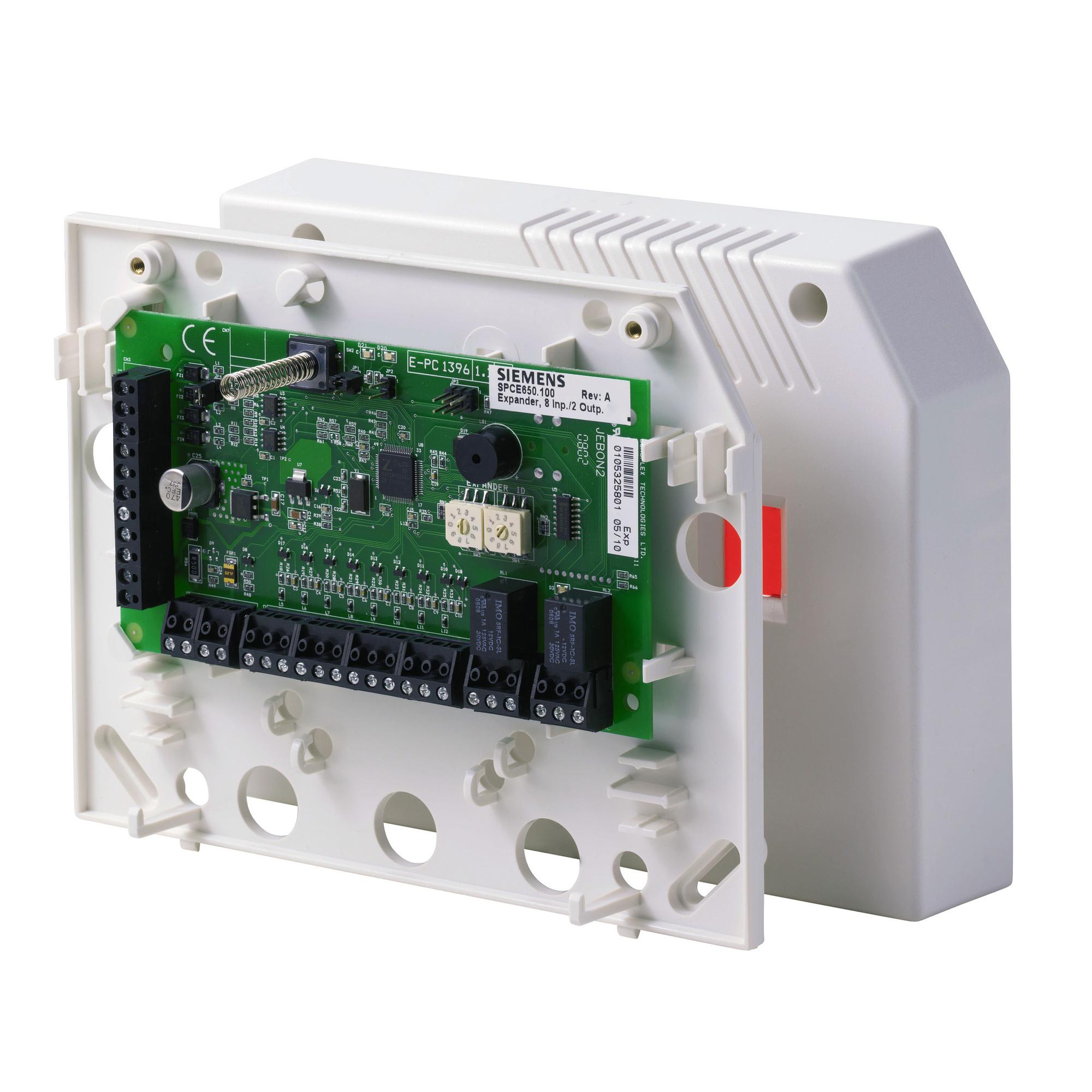

The SPCE652.100 expander extends the SPC system via X-BUS with 8 wired zones and 2 fully programmable relay outputs. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front and back tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Gross weight (KG) 0.53
Purchase unit PCE
EAN/UPC-Code: 4025515470854
Minimum order 1
ECCN N
Material code V54542-F106-A100
Statistical code 85311030
Net weight 0.460
Country of origin PH
Tamper contact: Front spring tamper, back tamper
Weight: 0.350 kg
Number of on-board relays: 2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Quiescent current: Max. 40 mA at 12 VDC
Operating current: Max. 80 mA at 12 VDC (all relays activated)
Interfaces: X-BUS (in, out, branch)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Number of on-board zones: 8
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 200 x 153 x 47 mm (housing), 150 x 82 x 20 mm (PCB)
