SPCE651.100 Expander,8 In/2 Out, Analy.

SPCE651.100 Expander,8 In/2 Out, Analy.
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54542-F102-A100
  • EAN/UPC-Code: 4025515470823
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCE651.100 Expander,8 In/2 Out, Analy."

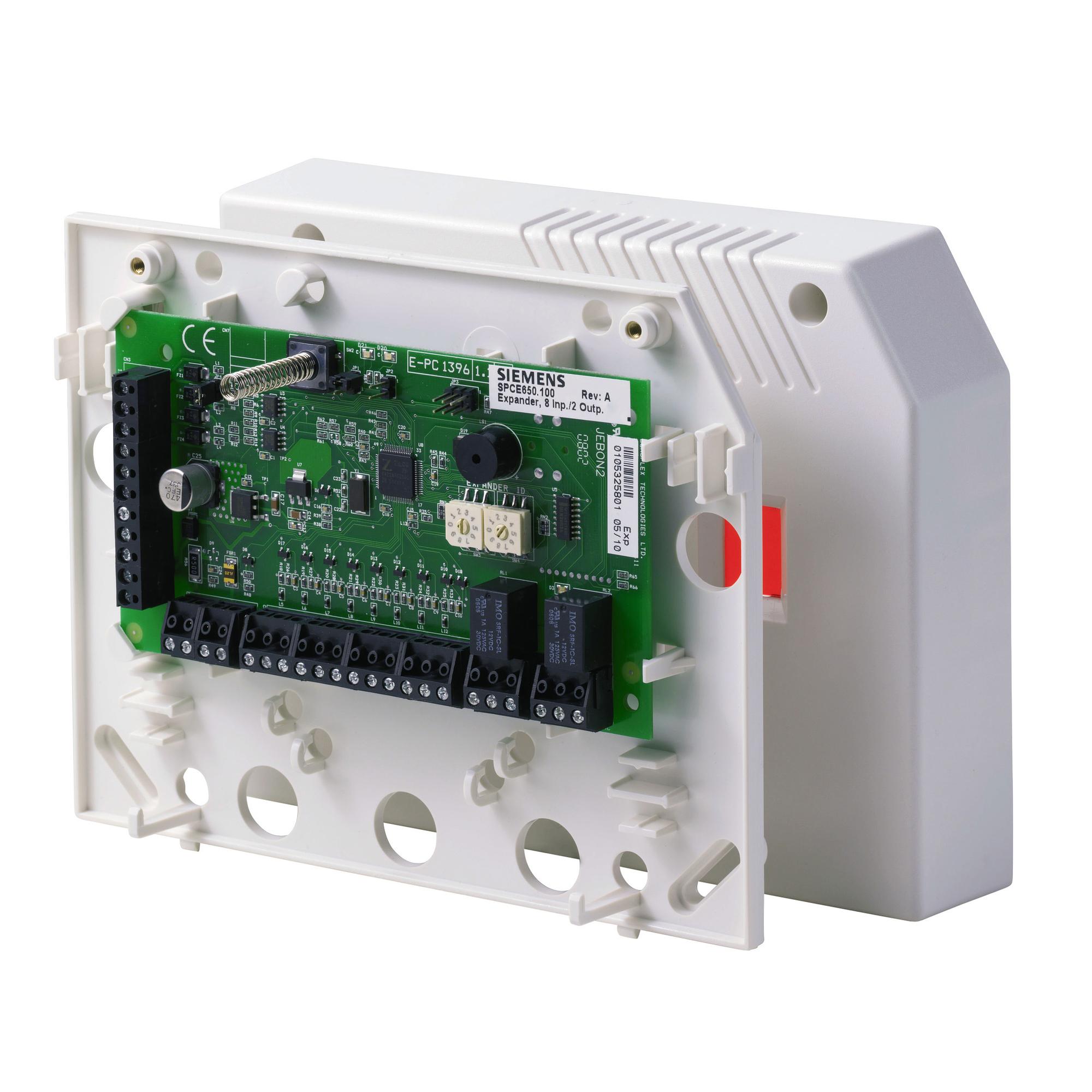

The SPCE651.100 expander extends the SPC system via X-BUS with 8 analysed zones and 2 fully programmable relay outputs. Analysed zones allow to connect inertia sensors. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.48
Purchase unit PCE
EAN/UPC-Code: 4025515470823
Minimum order 1
ECCN N
Material code V54542-F102-A100
Net weight 0.456
Statistical code 85311030
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Documentation
