GM730 Seismic detector
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54534-F107-A100
- EAN/UPC-Code: 4025515469636
Description
Certificates
Import & Export
Resources
Technical data
Documentation
Software
Useful Links

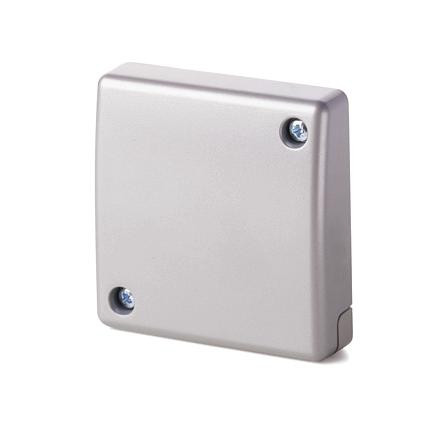

Product information "GM730 Seismic detector"
The GM730 seismic detector offers an outstanding price/performance ratio with advanced functionality for the use in safes, ATMs,
ticket machines, night deposit boxes, vaults and strongrooms. It is perfectly suited for protecting valuables repositories made of
concrete and steel. Intelligent signal processing enables the level of detection sensitivity to be custom-set, thereby reducing the
risk of false alarms. The anti-tamper for the detector cover will detect opening of the detector, and the anti-tamper on the back
of the detector will detect forcible removal.
Vanderbilt`s powerful GM7xx- series is the result of over 45 years engineering experience in the field of seismic detectors. Our
products are specifically designed for round-the-clock monitoring of safes, ATMs, strong rooms or any other environment with a high
concentration of valuable assets or dangerous goods.
All known types of intruder attacks generate unique vibration patterns. Their characteristic values such as timing, frequency and
amplitude are detected and analysed using Vanderbilt`s patented Senstec® technology. This technology also ensures that
environmental disturbances are ignored, and false alarms eliminated.
- Certificate (CE) - Issued by Vanderbilt, on 16/09/2017
- Certificate - Issued by CCC, on 14/09/2021
- Certificate - Issued by CNPP, on 31/12/2021
- Certificate - Issued by IMQ, on 28/09/2006
- Certificate - Issued by INCERT, on 14/05/2019
- Certificate - Issued by SBSC, on 08/02/2017
- Certificate - Issued by SBSC, on 08/02/2017
- Certificate - Issued by UL, on 28/06/2016
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 26/01/2022
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VSÖ, on 23/05/2022
- Certificate - Issued by KVALITET, on 06/05/2019
- Certificate (Other) - Issued by CCC
- Certificate (CE) - Issued by Vanderbilt, on 01/07/2022
- Certificate - Issued by CSP, on 10/10/2022
- Certificate - Issued by Vanderbilt, on 27/07/2022
- Certificate - Issued by CNPP, on 31/12/2022
- Certificate - Issued by IMQ, on 28/09/2006
- Certificate - Issued by SBSC, on 12/07/2023
- Certificate - Issued by SBSC, on 12/07/2023
Operating temperature: | -40°C ~ +70°C |
Dimensions (W x H x D): | 89 x 89 x 22 (mm) |
Current consumption: | 2.5 mA (rms) 3.5 mA (max. peak) |
Weight: | 0.285 kg |
Approval: | VdS, UL, CCC, RCM, CNPP, IMQ, INCERT, REQ, F&P, NBÚ, VSÖ, SBSC, PIE, MABISZ, BSI, PD6662 |
DIP switch settings: | 3 fixed DIP settings |
Alarm output relay: | Opens on alarm, 30 VDC / 100 mA |
Power supply: | 8 - 16 VDC (12 V nominal) |
Housing protection (EN 60529): | IP43 |
Range: | 4 m / 50 m² (Concrete)/ 2 m / 12 m² steel |
- Datasheet - (English) - GM730
- Datasheet - (Dutch) - GM730
- Datasheet - (French) - GM730
- Datasheet - (German) - GM730
- Datasheet - (Spanish) - GM730
- Datasheet - (Italian) - GM730
- Installation Manual - (Multilingual) - GM730
- Product Support Guide - (English) - Seismic Detectors Application Guide
- Product Support Guide - (English) - Vanderbilt Seismic Support guide
- Application Note - (English) - GM730 an SPC VDS
- Application Note - (English) - GM775 an SPC VDS
