MK-4460 Magn. Cont.,G2,SPDT

Preview: MK-4460 Magn. Cont.,G2,SPDT Preview: MK-4460 Magn. Cont.,G2,SPDT
MK-4460 Magn. Cont.,G2,SPDT
MK-4460 Magn. Cont.,G2,SPDT

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54536-F115-A100
  • EAN/UPC-Code: 4025515478867
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "MK-4460 Magn. Cont.,G2,SPDT"

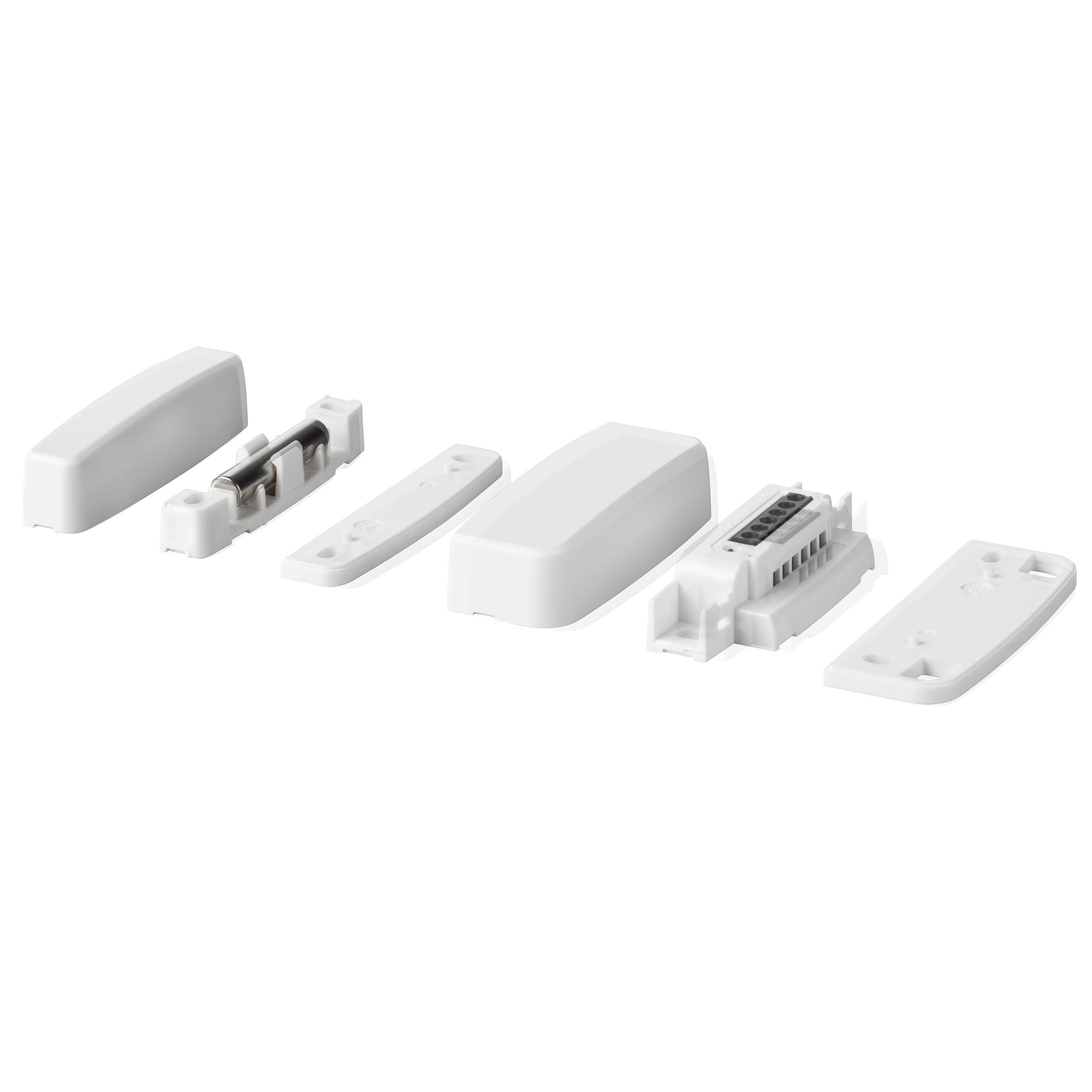

The MK-4000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted on window and door frames of non-magnetic materials. Secondary Packaging: 50 Units
Certificates
Close menu
Import & Export
Gross weight (KG) 0.035
Purchase unit PCE
EAN/UPC-Code: 4025515478867
Minimum order 1
ECCN N
Material code V54536-F115-A100
Statistical code 85311030
Net weight 0.033
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Switching voltage: Max. 30 VDC
Approval: EN 50131-2-6, Grade 2 SBSC, Larmklass 1/2
Tamper contact: Single-pole NC contact
Colour: White
Tamper switch: NC
Environmental class: II
Housing protection: IP43
Operating temperature: -40 ~ +70 °C
Switching current: Max. 200 mA
Contact rating: 3 W
