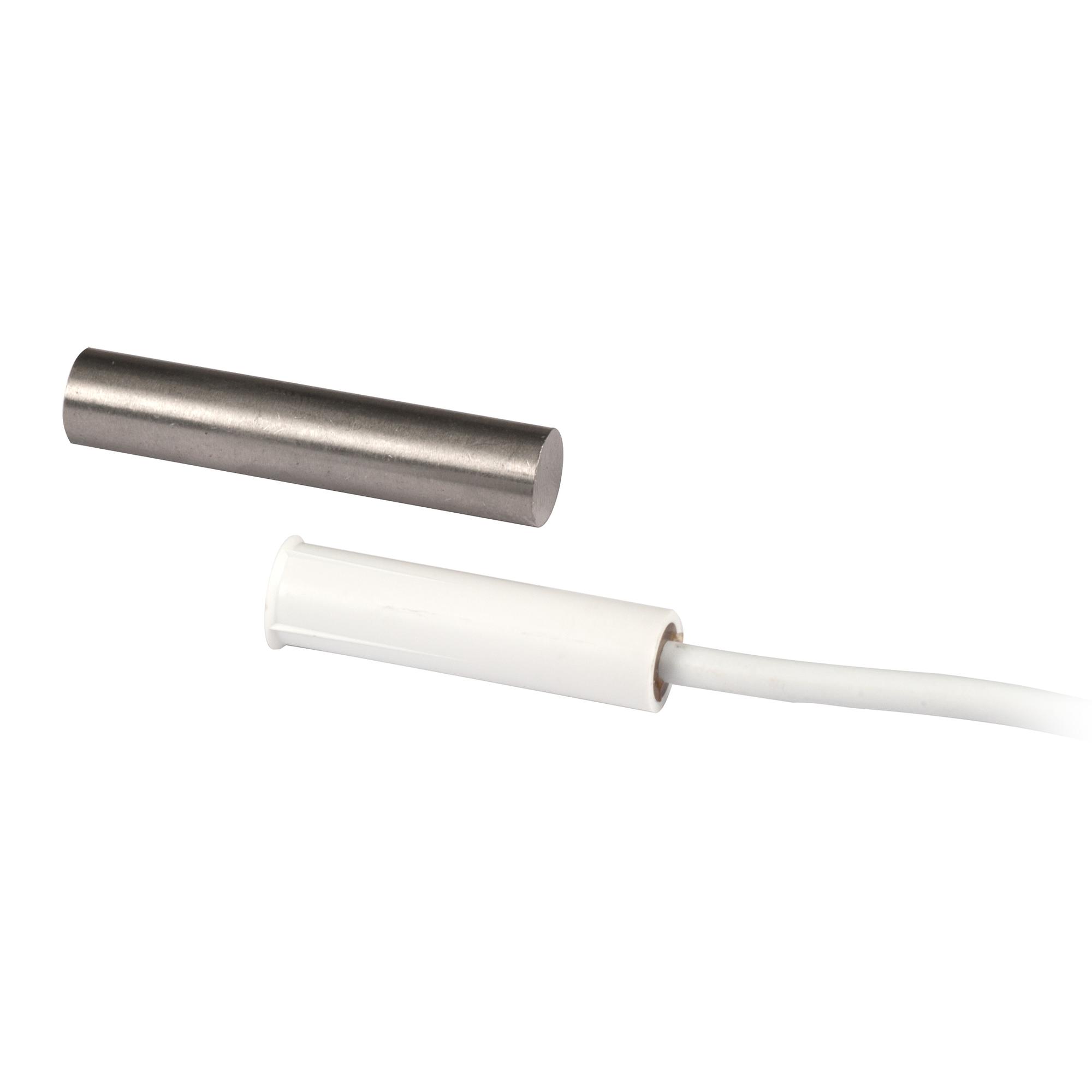

Product information "EMK48LSA-W4M Einbaumagnetkontakt"
Recess mount magnetic contact suitable for doors and windows surveillance. High fuctional reliability through an integrained carrier board for the reed contact. For surface mounting the EMK-AT can be used.
|Approval:||VdS geprüft, Klasse B, Nr.: G 191564|
|Contact resistance:||0.15 Ω|
|Cable length:||4 m|
|Supply voltage:||max. 40 VDC|
|Housing material:||SB, ABS|
|Operating temperature:||-40 ~ +70 °C|
|Contact rating:||Max. 6 W|
|Switching current:||Max. 500 mA|
|Switching voltage:||Max. 100 VDC|
