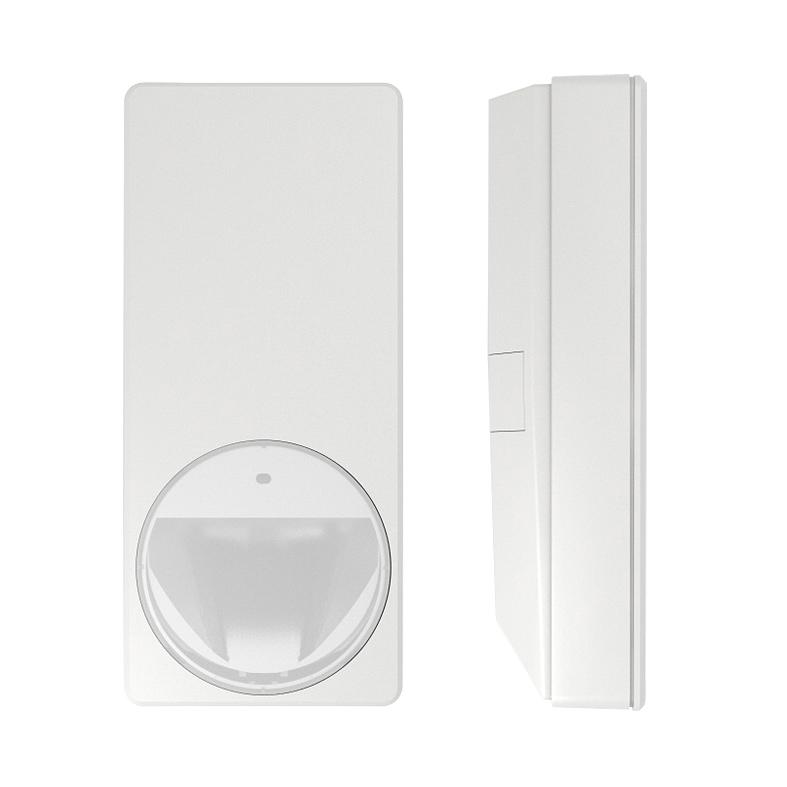

PDM-IXA12T Dual AM detector 10.525GHz

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54531-F116-A100
  • 4025515470489
Product information "PDM-IXA12T Dual AM detector 10.525GHz"
MAGIC motion detector PDM-IXA12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Gross weight (KG) 0.105
Purchase unit PCE
EAN/UPC-Code: 4025515470489
Minimum order 1
Statistical code 85311030
ECCN EAR99
Country of origin RO
Net weight 0.100
Material code V54531-F116-A100
Storage temperature: - 20° ... + 60°C
Supply voltage: 9 ... 16 VDC (12 V nom.)
Outputs: 30 VDC / 100 mA, NC
Walk test input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
Set/unset input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
EOL resistor: RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW
Operating temperature: - 10° ... + 55°C
Weight: 0.1 kg
Colour: RAL9003
Detection characteristics / range: Volumetric / 12 m
Pet immunity: yes (option)
Sensitivity evaluation mode: 6 settings
Approval: EN50131-2-4 grade 3
Current consumption: 6.3 mA (rms) 10.5 mA (max peak)
Walking speed: 0,1 ... 4,0 m/s / 0,1 ... 4,0 m/s
Microwave (MW): 10.525 GHz
Air humidity (EN 60721): < 95% RH, non-condensing
Housing protection (EN 60529): IP41 / IK02
Optical system: MAGIC mirror
Dimensions (W x H x D): 57 x 128 x 32 mm
