GB-5000-IN Relay-Interface for GB

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54550-F112-A100
  • 4025515478911
Product information "GB-5000-IN Relay-Interface for GB"

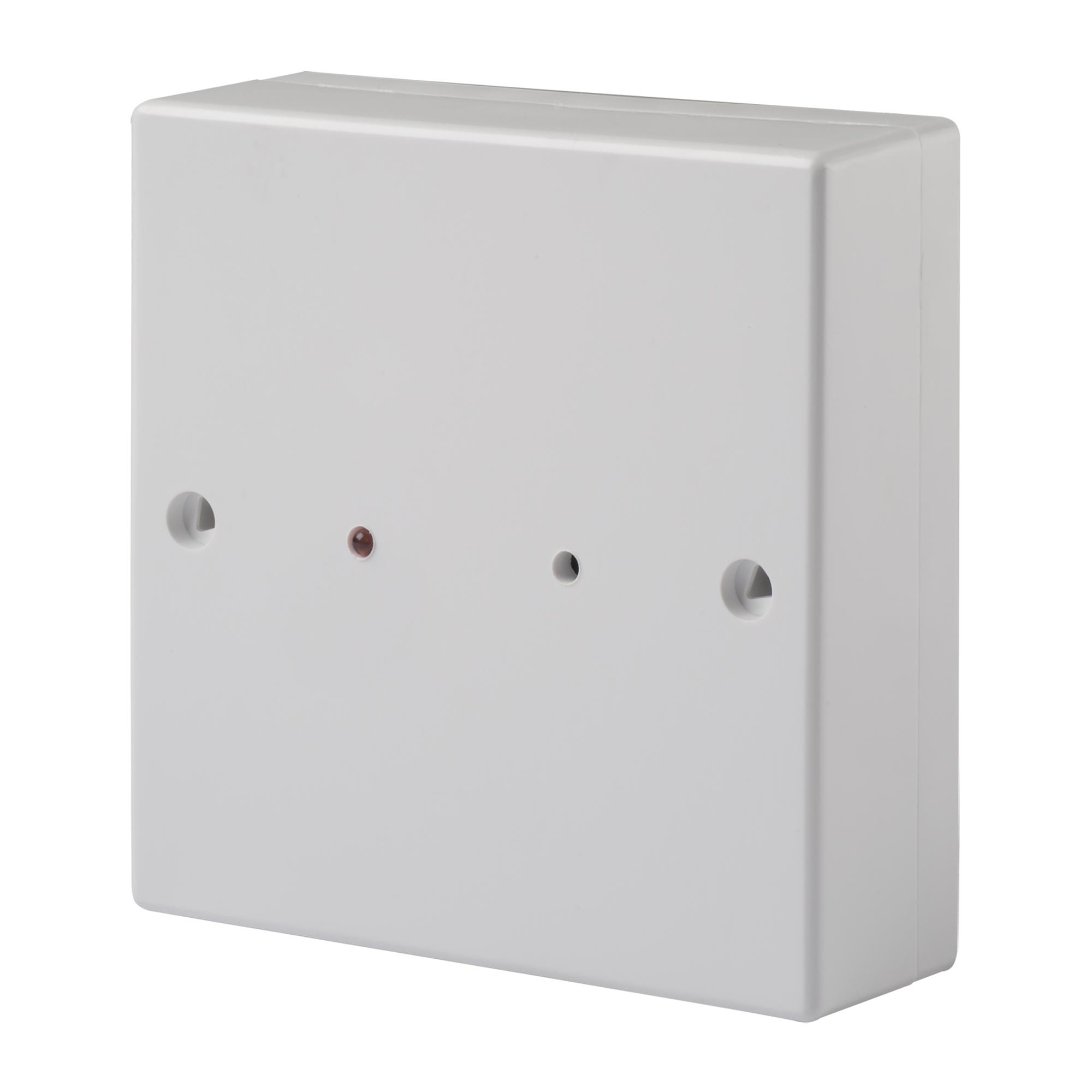

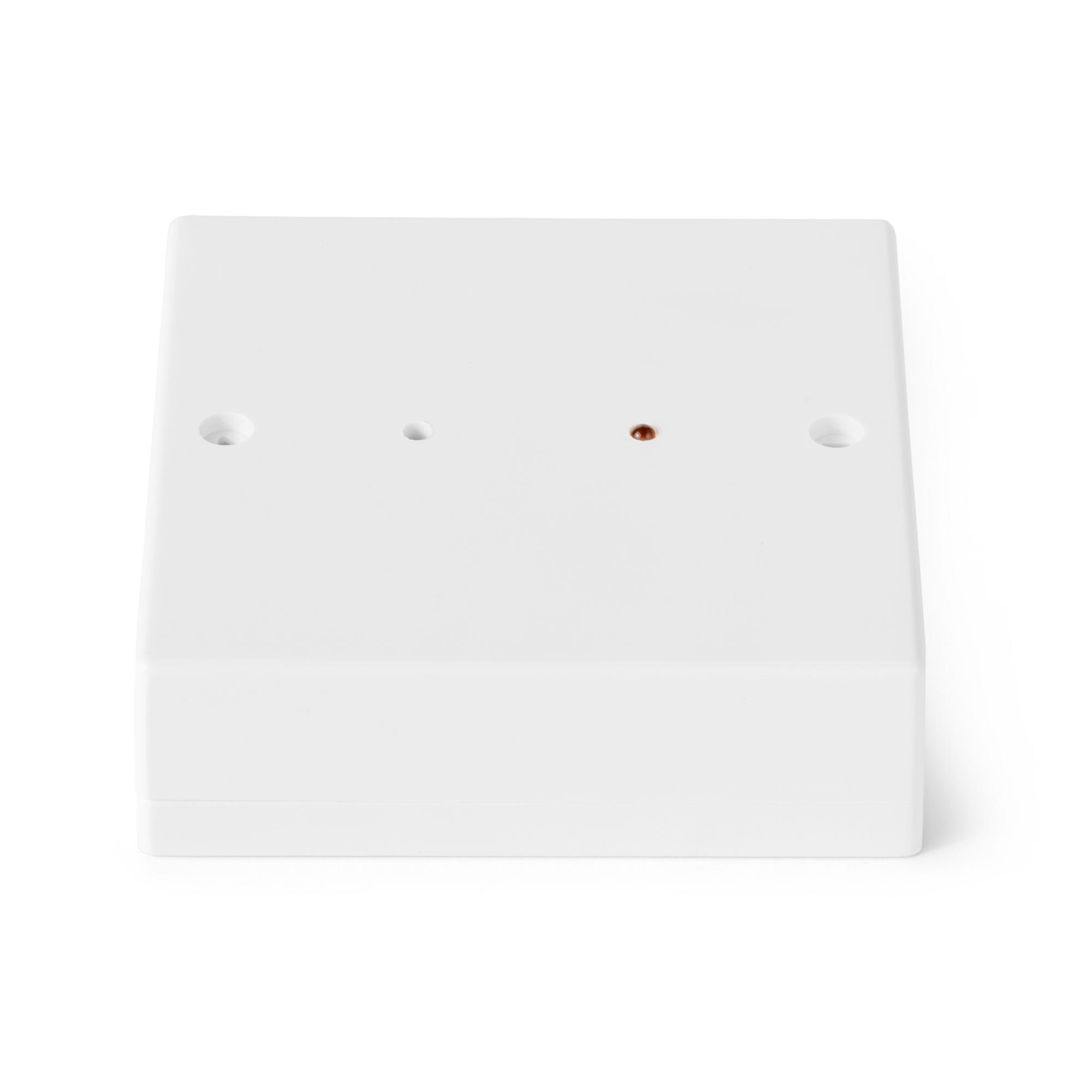

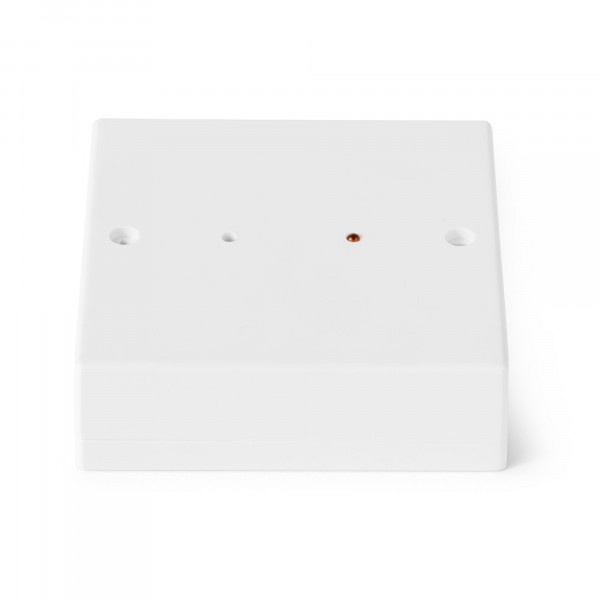

The Relay-Interface is needed, if the line doesn’t allow to connect glass break detectors. This could happen because of several reasons: At series-technology, digital supervision or if the line-voltage is below 3 V. As a connecting link between a glass break detector and the panel, the Relay-Interface can be connected at or in each loop because of it’s floating relay-contact. The electronic is placed in a plastic case. It allows the lead-in of wire on three sides. The housing-cover is monitored against unauthorized opening by a tamper-switch. Secondary Packaging: 25 Units
Gross weight (KG) 0.08
Purchase unit PCE
EAN/UPC-Code: 4025515478911
Minimum order 1
ECCN N
Material code V54550-F112-A100
Net weight 0.076
Statistical code 85311030
Country of origin DE
