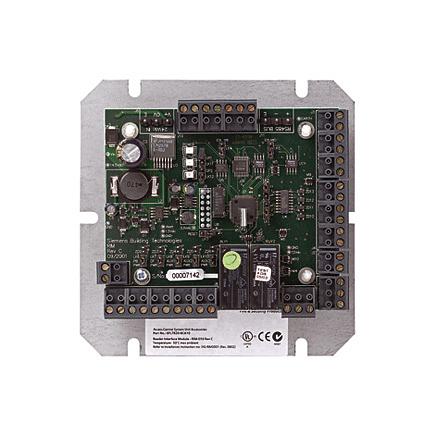

ADD5100 Dual Reader Interface

ADD5100 Dual Reader Interface
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V6FL7820-8CA10
  • EAN/UPC-Code: 4025515475071
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "ADD5100 Dual Reader Interface"
The ADD5100 provides an interface between a card reader and the advanced central controller (AC5102 or AC5200) for up to two card readers. When a cardholder presents an access card at an entry or exit reader the ADD5100 reader interface interprets the encoded information and sends this data to the controller. The controller then checks the validity of the cardholder‚ and if the appropriate permissions have been assigned‚ the controller sends a message back to the reader interface allowing it to unlock the door and provide passage. It can also report the status of the door (locked or unlocked) at any time.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.34
Purchase unit PCE
EAN/UPC-Code: 4025515475071
Minimum order 1
ECCN N
Material code V6FL7820-8CA10
Net weight 0.318
Country of origin HU
Statistical code 84733020
