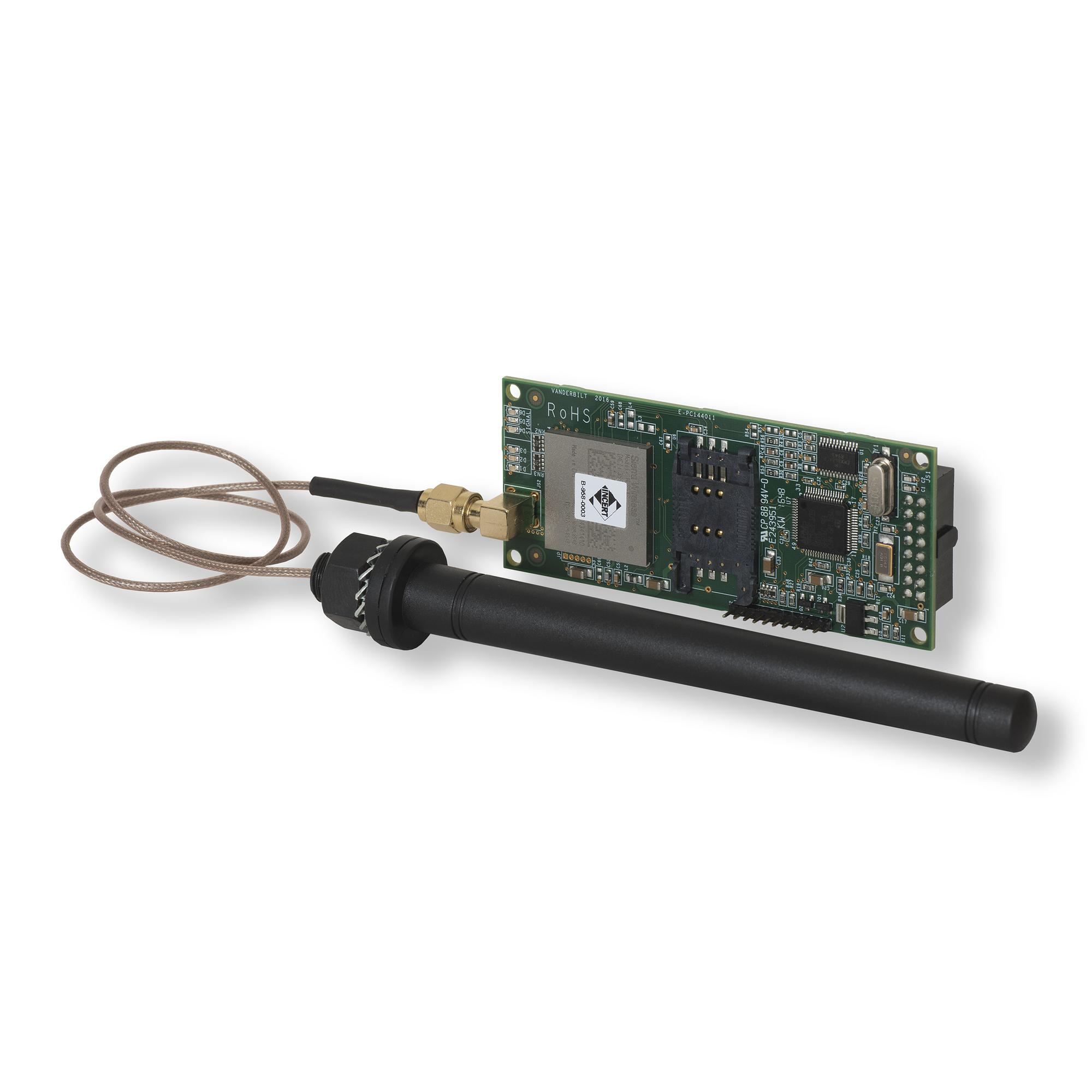

SPCN320.000 GSM Module incl. antenna

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54550-B102-A200
  • 7330082000135
Tuotetiedot "SPCN320.000 GSM Module incl. antenna"
The SPCN320.000 GSM module can be assigned to any mobile network by the insertion of a standard SIM card. The modem is compatible with the complete range of acre Intrusion panels and plugs directly on the main PCB removing the need for any additional wiring. The unit comes with an external antenna that fits on the cabinet. The modem communicates with a central station (ARC) using common format protocols (SIA, Contact ID) or IP over 2G/3G (FW3.8 or later) to SPC Com alarm receiver. It also supports PPP connection to acre Intrusion Connect Pro Software for remote programming and configuration up-/download. The SMS feature allows user / engineer to be sent a predefined text when selected events occur in the system or receiving of predefined SMS commands for security system control. The GSM modem can be used as the primary source of communication or as backup to the PSTN modem or IP communication.
Gross weight (KG) 0.126
Osta yksikkö PCE
EAN/UPC-Code: 7330082000135
Mindestabnahme 1
Country of origin PH
Material code V54550-B102-A200
ECCN 3A991
Net weight 0.056
Statistical code 85176200

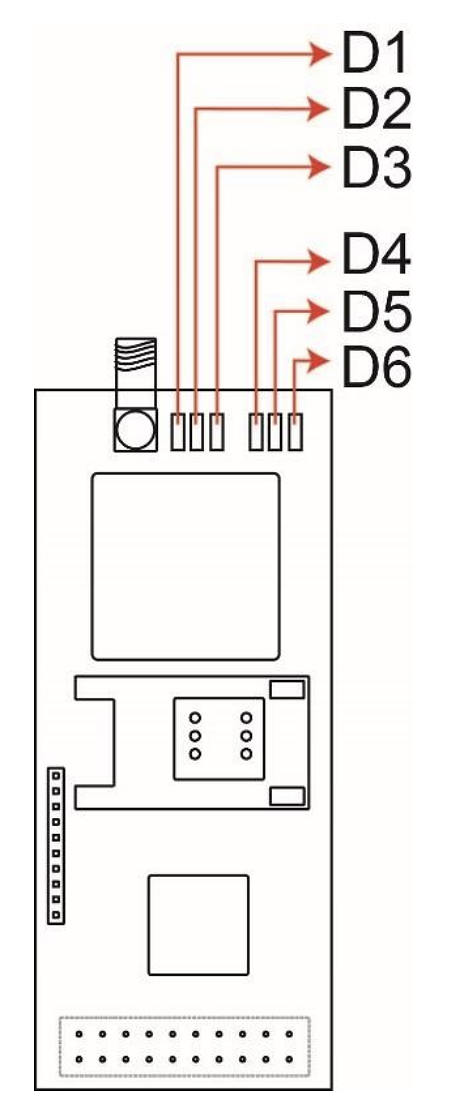

Indicators: Signal strength - Red LED – D4: Low (Off = 1, pulsing = 2-3 constant = 4-5) - Yellow LED – D5: Medium (pulsing = 6 & constant = 7) - Green LED – D6: High (pulsing = 8 & constant = 9) General - Green LED – D1: Pulsing = power connected - Green LED - D2:...
Dimensions (L x W x H): 90 x 38 x 25mm
Dimensions (W x H x D): 90 x 38 x 25 mm (PCB)
Frequency: Dualband 900/1.800 MHz
Operating current: Max. 130 mA at 12 VDC
Weight: 0.030 kg
Mounting: Plug on module to SPC controller
Quiescent current: Max. 40 mA at 12 VDC
Operating temperature: -10 ~ +50 °C
Tamper protection: Panel enclosure, signal loss
