SPCE652.100 Expander.8In/2Out,backtamp.

SPCE652.100 Expander.8In/2Out,backtamp.
Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V54542-F106-A100
  • EAN/UPC-Code: 4025515470854
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation Software
Kuvaus
Sulje valikko
Tuotetiedot "SPCE652.100 Expander.8In/2Out,backtamp."

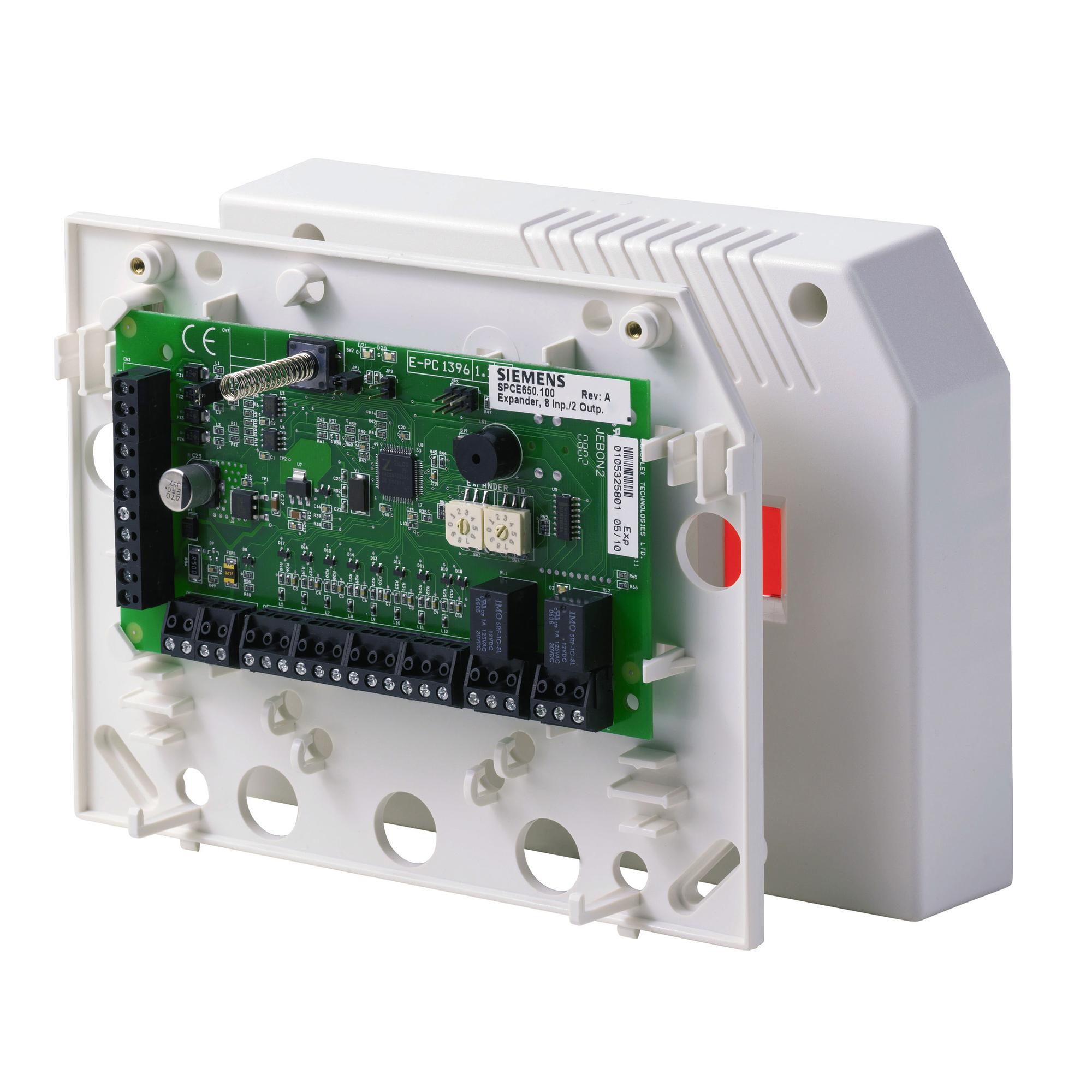

The SPCE652.100 expander extends the acre Intrusion system via X-BUS with 8 wired zones and 2 fully programmable relay outputs. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front and back tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 0.53
Osta yksikkö PCE
EAN/UPC-Code: 4025515470854
Mindestabnahme 1
ECCN N
Material code V54542-F106-A100
Statistical code 85311030
Net weight 0.460
Country of origin PH
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Tamper contact: Front spring tamper, back tamper
Weight: 0.350 kg
Number of on-board relays: 2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Quiescent current: Max. 40 mA at 12 VDC
Operating current: Max. 80 mA at 12 VDC (all relays activated)
Interfaces: X-BUS (in, out, branch)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Number of on-board zones: 8
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 200 x 153 x 47 mm (housing), 150 x 82 x 20 mm (PCB)
