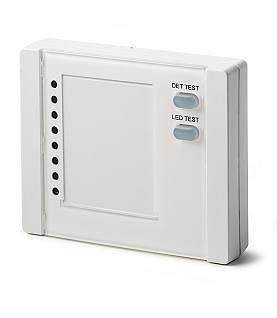

GMYA7-A Alarm indication module - GM775

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • V54534-F102-A100
  • 4025515469612
Produkt information "GMYA7-A Alarm indication module - GM775"
The alarm indicator module GMYA7-A enables the expansion of the alarm indication system GMYA7-AS with additional indicator modules. In total a system supports 7 indication modules. Each indication module connects 8 detectors.
Bruttovægt (KG) 0.415
Købs Enhed PCE
EAN/UPC-Kode: 4025515469612
mindste bestilling 1
Statistisk kode 85311030
Nettovægt 0.394
ECCN EAR99
Materialekode V54534-F102-A100
Oprindelsesland PH
Weight: 0.418 kg
Power supply: 8 - 16 VDC (12 V nominal)
Housing protection (EN 60529): IP41
Current consumption: 25 mA
Approval: VdS Class C
Storage temperature: -20°C ~ 60°C
Operating temperature: -10°C ~ 55°C
Dimensions (W x H x D): 112 x 92 x 31 (mm)
