GMYA7-AS Test & Indication system-GM775

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her

Varenummer: V54534-F101-A100
EAN/UPC-Kode: 4025515469605

Luk menu

Produkt information "GMYA7-AS Test & Indication system-GM775"

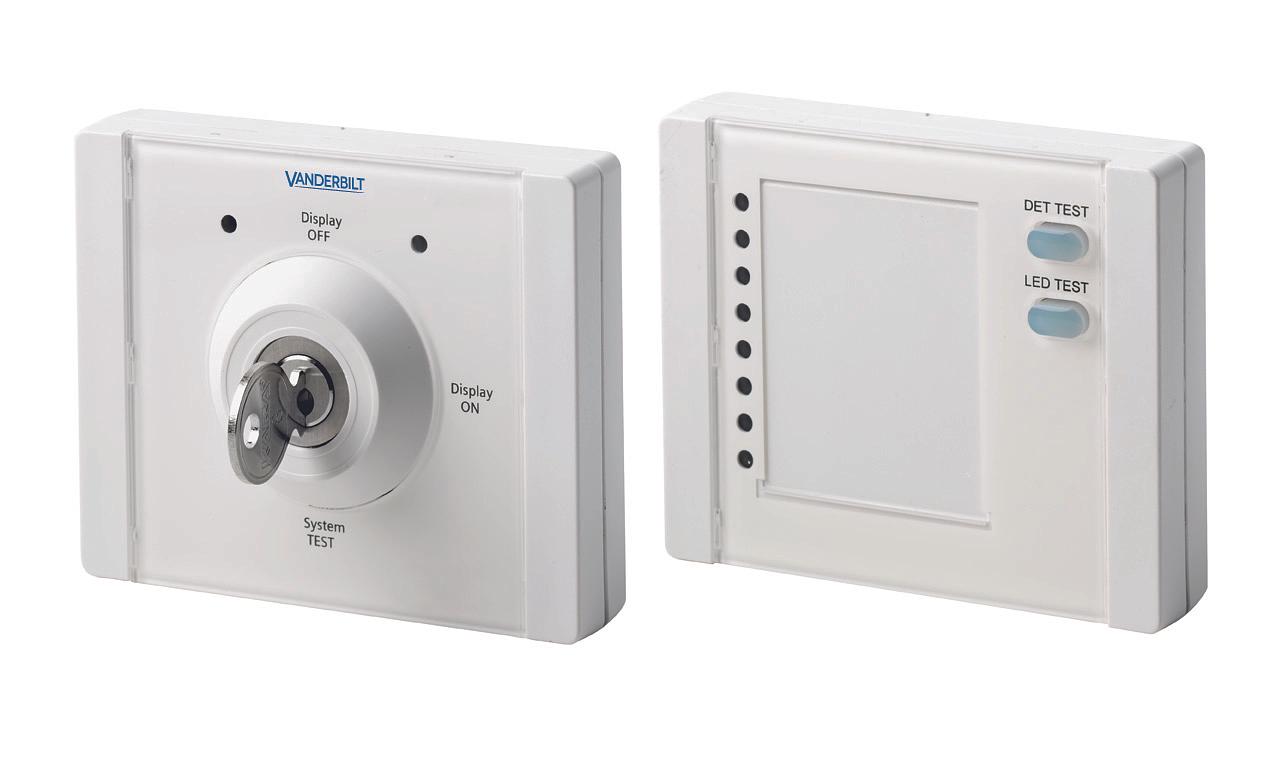

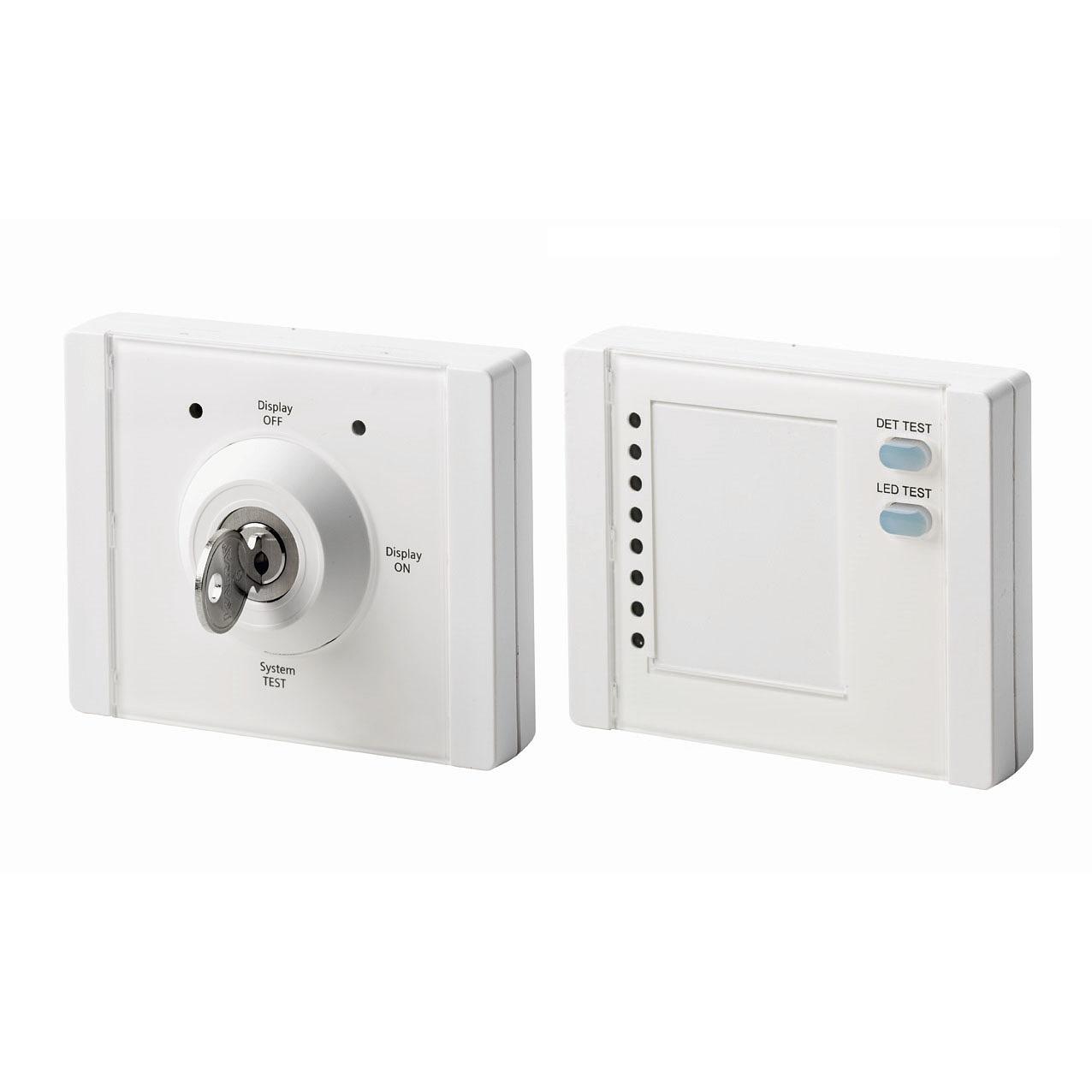

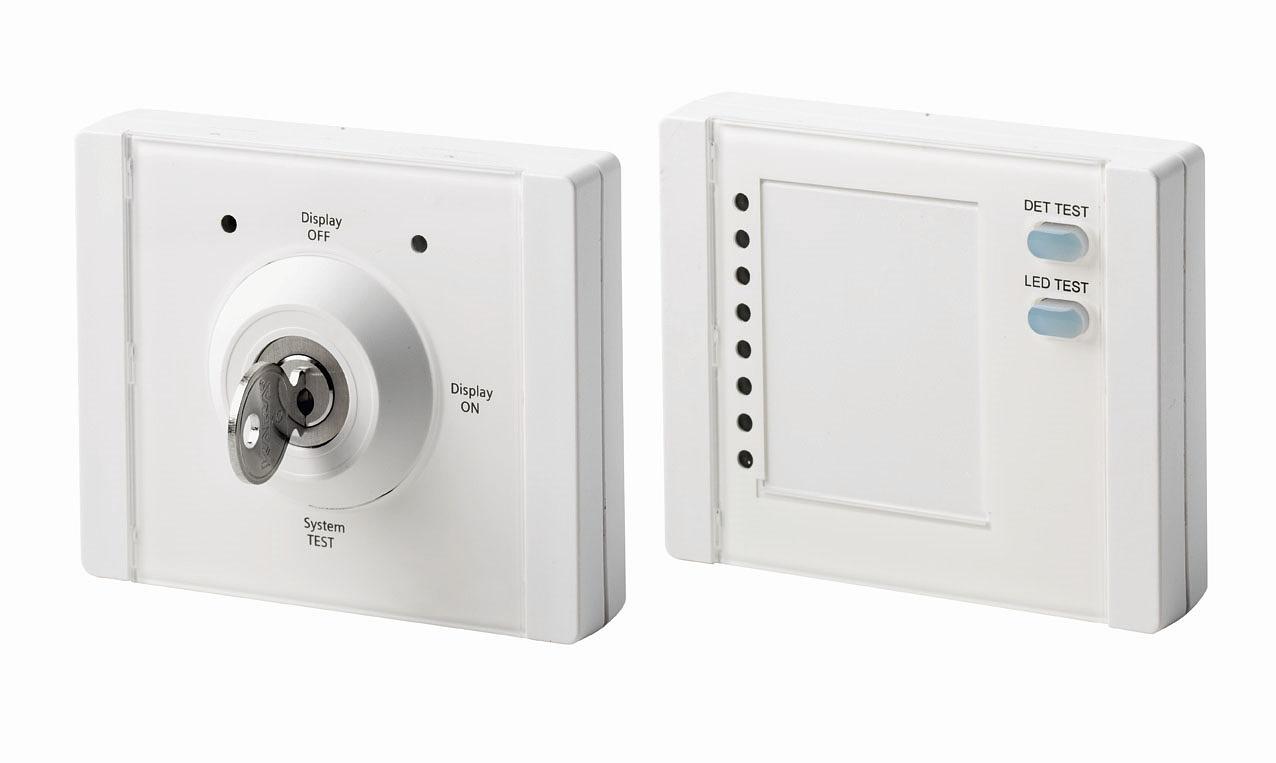

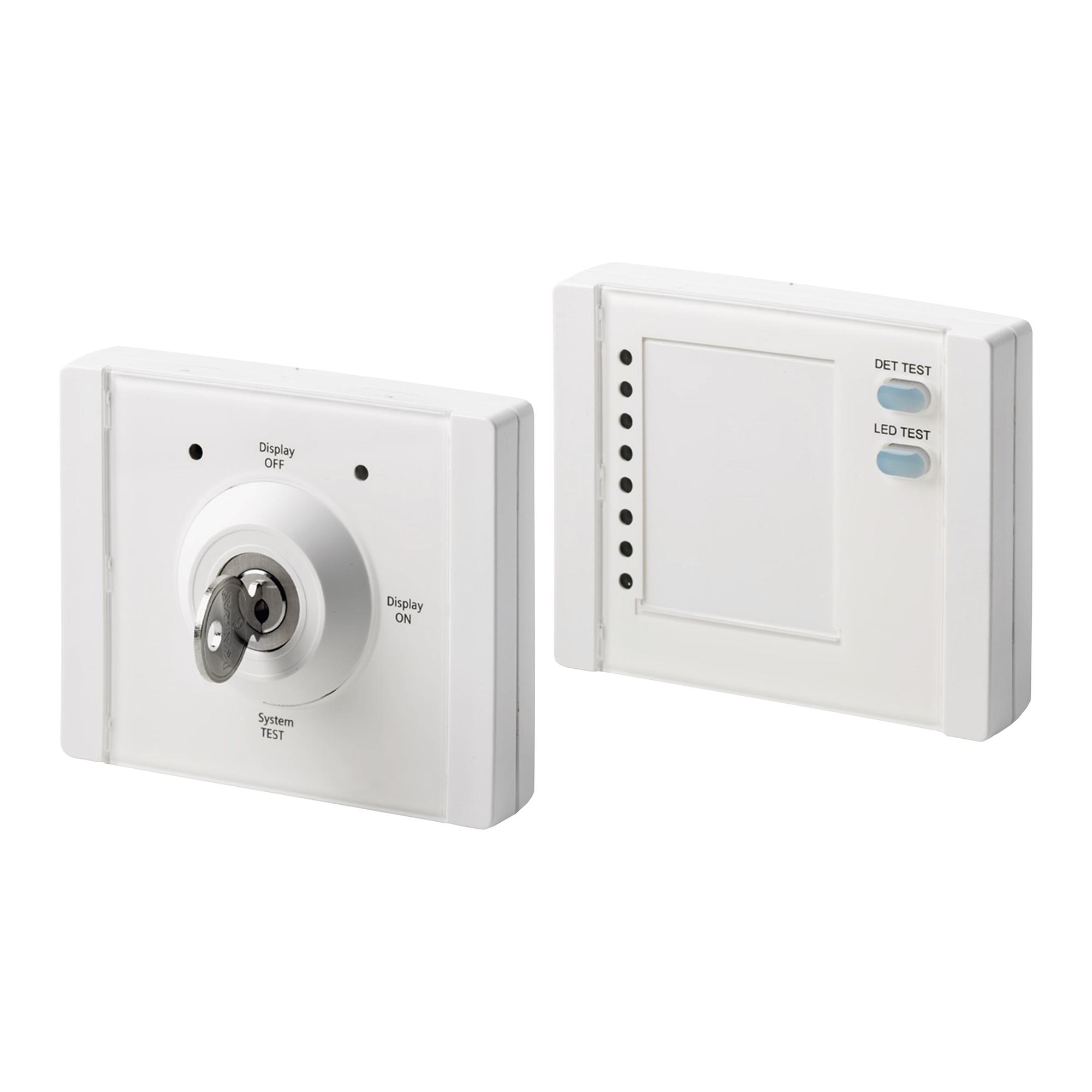

The GMYA7-AS remote test system consists of a key module and a single indicator module. It enables daily routine function tests to be conducted on up to 8 seismic detectors independent of an intruder alarm system. The GMYA-AS can only be used with the seismic detector GM775 and in combination with the GMXS1. The identification of alarms and test function independent of an alarm panel is mainly required and used for VdS approved seismic detector systems.

Luk menu

Bruttovægt (KG)	0.499
Købs Enhed	PCE
EAN/UPC-Kode:	4025515469605
mindste bestilling	1
ECCN	N
Materialekode	V54534-F101-A100
Nettovægt	0.400
Statistisk kode	85311030
Oprindelsesland	PH

Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.

Luk menu

Operating temperature:	-10°C to 55°C
Current consumption:	Indicator module: max. 25 mA Key module: max. 18 mA
Weight:	0.800 kg
Storage temperature:	-20°C to 60°C
Power supply:	8 - 16 VDC (12 V nominal)
Housing protection (EN 60529):	IP41
Approval:	VdS Class C
Dimensions (W x H x D):	Indicator module: 112 x 92 x 31 mm Key module: 112 x 92 x 37 mm
