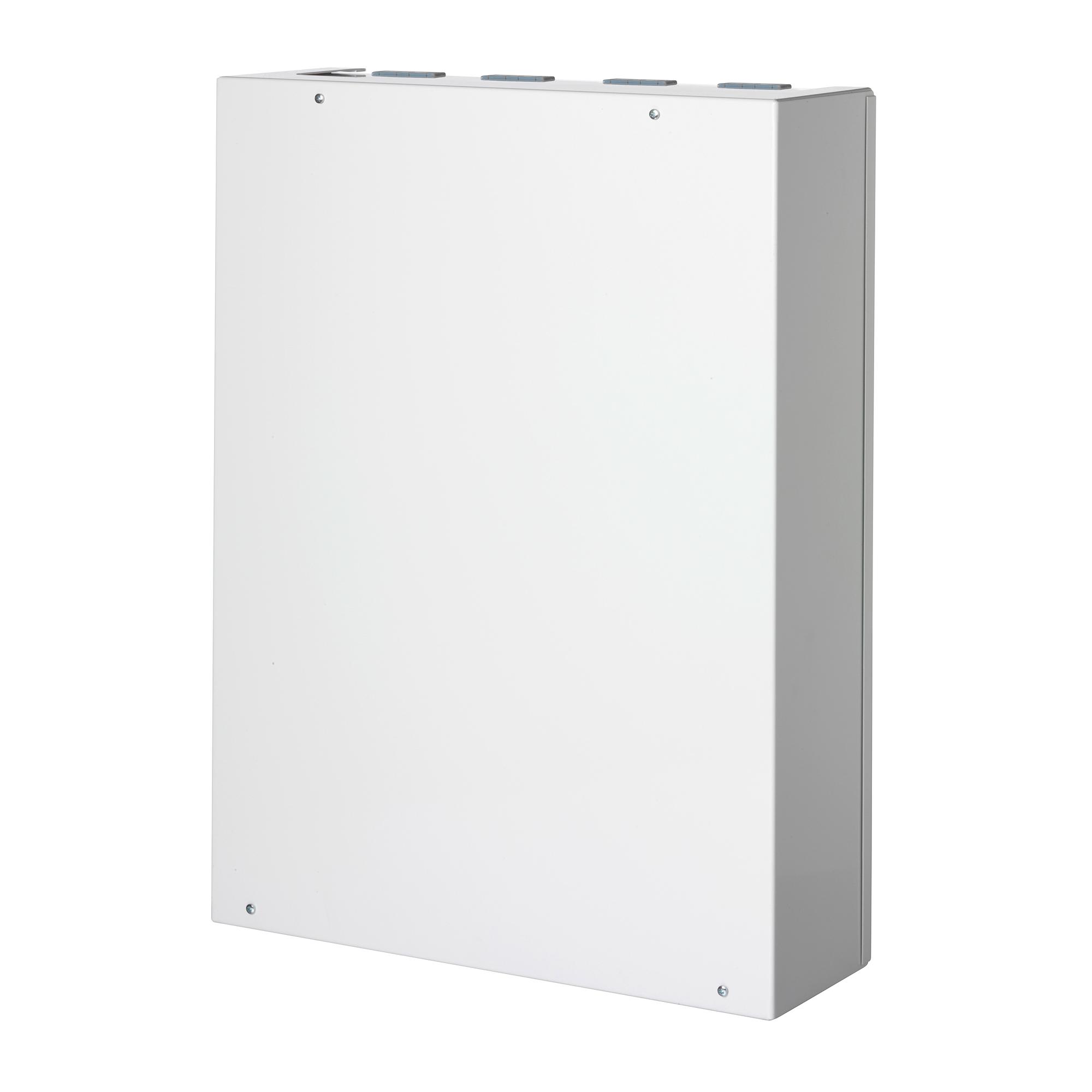

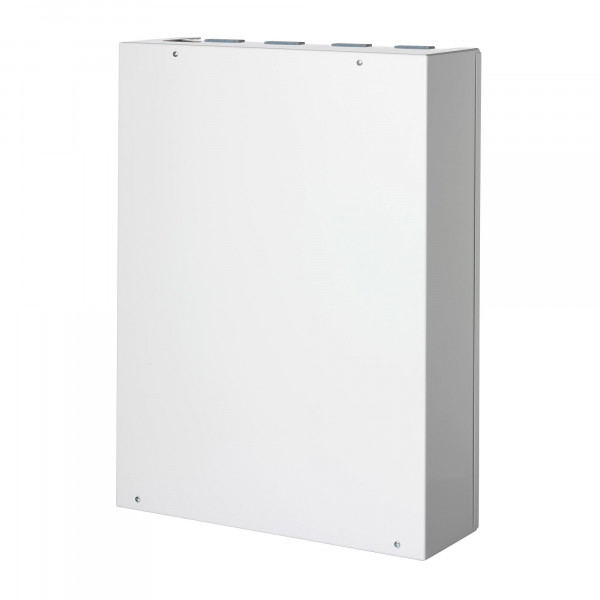

SPC6350.320-L1 Intrusion CP, G5

SPC6350.320-L1 Intrusion CP, G5
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54541-C118-A100
  • EAN/UPC-Kode: 4025515470816
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation Software
Beskrivelse
Luk menu
Produkt information "SPC6350.320-L1 Intrusion CP, G5"
The SPC6350.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 512 zones (16 on-board), 512 outputs (12 on-board), 32 system keypads, 64 doors, 16 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 60 areas, 2500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 64 detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for 2 optional 27 Ah batteries and 4 additional expanders.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 21
Købs Enhed PCE
EAN/UPC-Kode: 4025515470816
mindste bestilling 1
ECCN N
Statistisk kode 85311030
Oprindelsesland PH
Nettovægt 19.950
Materialekode V54541-C118-A100
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Number of on-board zones: 16
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Interfaces: 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Output voltage: 13-14 VDC in normal conditions (mains powered and fully charged battery)
Operating temperature: 0 ~ +40 °C
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)
Housing: Metal housing (1.5 mm mild steel)
Relay outputs: 4 (single-pole changeover, 30 V DC / max. 1 A resistive switching current)
Door capacity: Max. 64 entry doors or 32 entry/exit doors
Tamper contact: Front / back tamper, 1 auxiliary tamper contact input
Operating current: Max. 415 mA at 12 VDC (all relays activated)
Quiescent current: Max. 350mA at 12 VDC
Language: Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv.
Approval: DE: VdS G112104, Klasse C AT: W 130923/10 E, Klasse WS In Zertifizierungsverfahren nach SES EN CH Grad 3 FFIS A 11001 A - 1 bis Kat. 2 Ablauf der FFIS Genehmigung per 31.12.2014
Power output: Max. 2,2 A @ 12 V DC (8 x outputs with 300 mA)
Weight: 18,6 kg (housing incl. cover), 11,5 kg (housing without cover)
Max. number of wireless zones: 64 (take away wired zones)
Verification: 16 verification zones with max. 4 IP-cameras and 16 audio devices.
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Max. number of hardwired zones: 512
Colour: RAL 9003 (signal white)
Firmware: V3.6
Event memory: 10'000 intrusion events, 10'000 access events
Dimensions (W x H x D): 498 x 664 x 157 (mm)
