SPCY520.000 Flush Mount Box for SPCK52x

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V54543-H101-A100
  • 4025515471004
Product information "SPCY520.000 Flush Mount Box for SPCK52x"

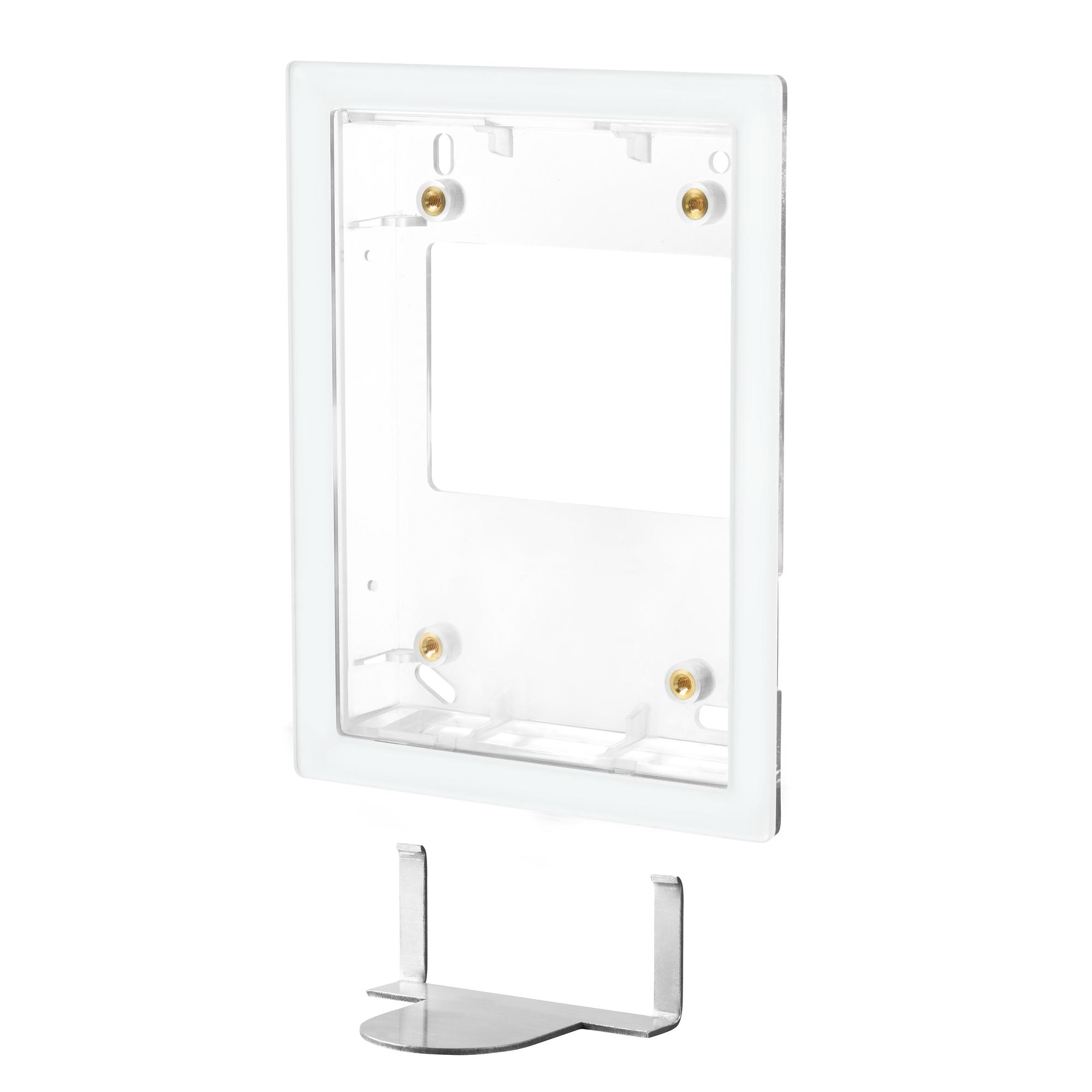

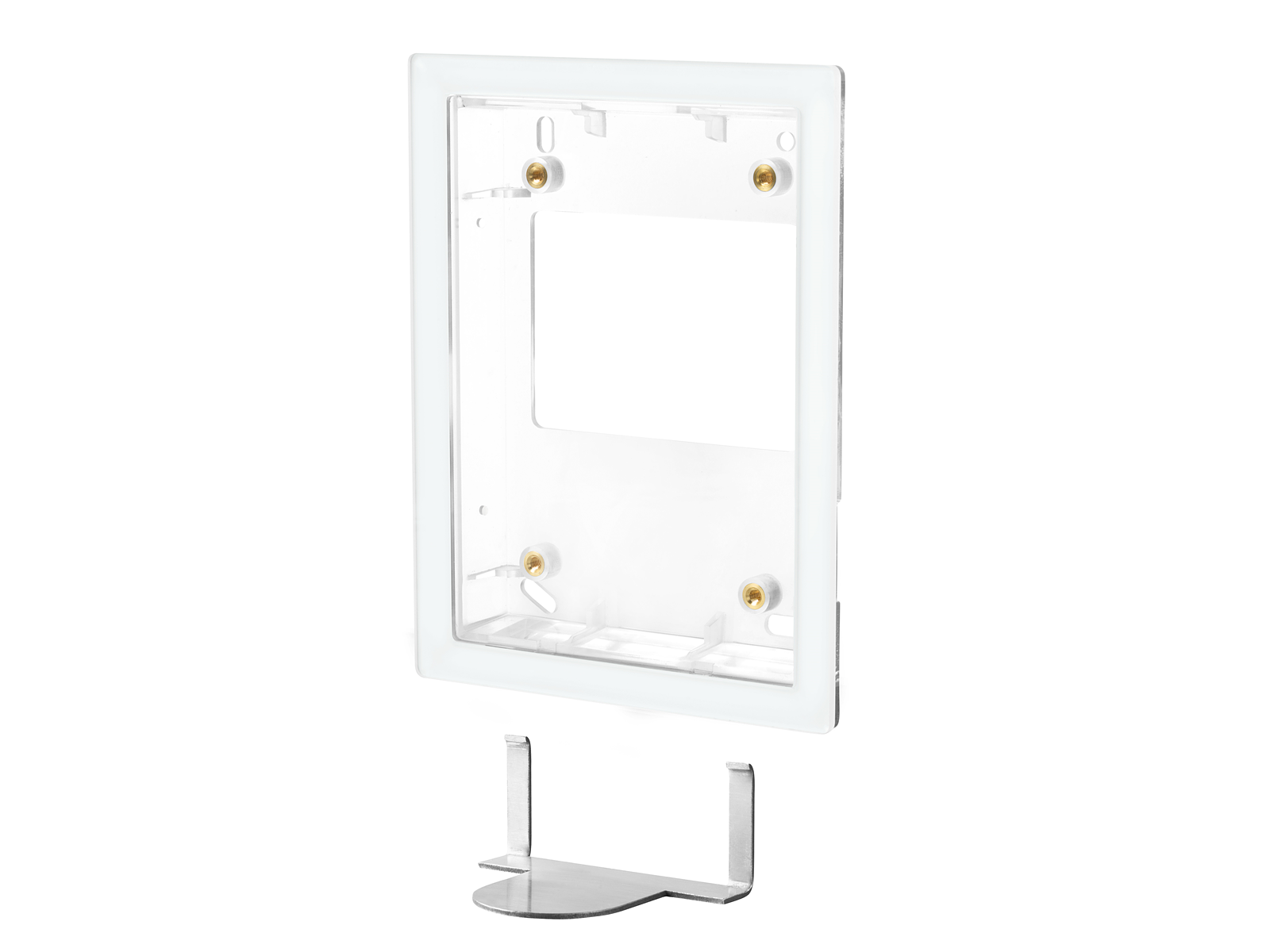

The SPCY520 is a flush mounting kit which allows a discrete installation of the SPCK52x Compact Keypad. This kit allows the keypad to be recessed into the wall, providing a sleek, elegant appearance. It can be used with SPCY521 for installation in concrete walls, or on its own for plasterboard walls. With the use of the opening tool the SPC Compact Keypad can be removed for X-Bus readdressing, retrofitting wireless module etc.
Gross weight (KG) 0.205
Purchase unit PCE
EAN/UPC-Code: 4025515471004
Minimum order 1
ECCN N
Material code V54543-H101-A100
Net weight 0.195
Statistical code 85311030
Country of origin PH
Material: Flush Mount box: ABS (3.4mm) Removing tool: Stainless steel
Colour: Signal white - RAL9003 (Faceplate frame)
Weight: 0.125 kg
Dimensions (W x H x D): 133 x 174 x 27 mm
