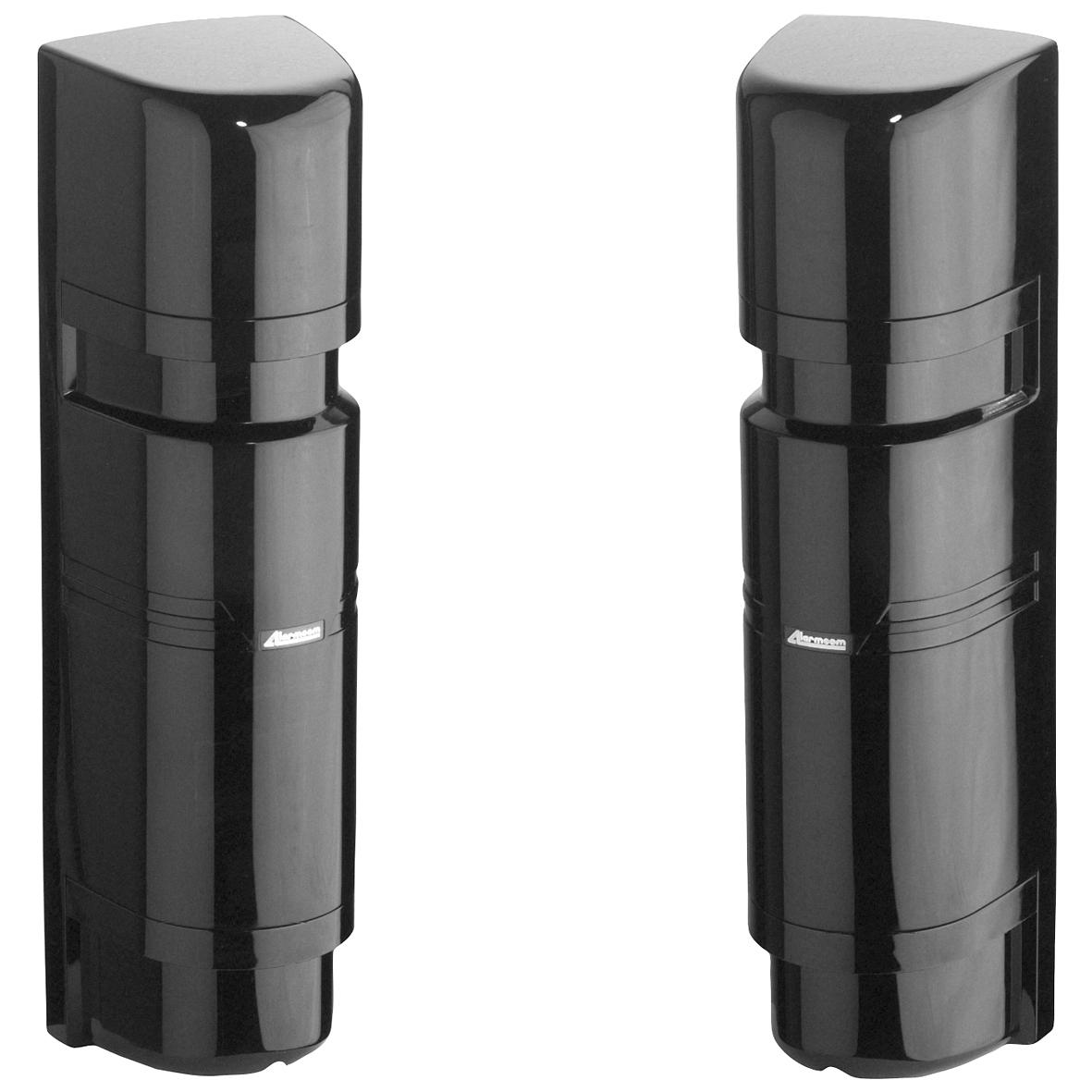

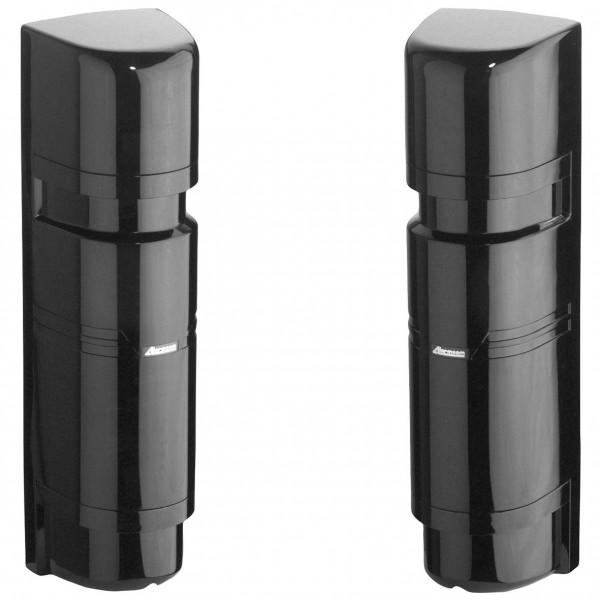

IS443 Active IR outdoor beams. 50m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • VBPZ:5299920001
  • 4025515475682
Product information "IS443 Active IR outdoor beams. 50m"
Intelligent active infrared beams especially designed for perimeter protection. The synchronized and sophisticated "quad" beams reinforce each other to improve both range and stability in severe weather conditions. Use BP-200F when pole mounted.
Gross weight (KG) 3.4
Purchase unit PCE
EAN/UPC-Code: 4025515475682
Minimum order 1
Statistical code 85311030
Material code VBPZ:5299920001
ECCN EAR99
Net weight 3.230
Country of origin VN
Operating temperature: -25 ~ +66 °C
Power supply: 12 ~ 30 VDC
Power output: Schaltrelais bis 30V (AC/DC) < 1A
Housing: Schwarz
LED Indicators: Receiver - Alarm LED Receiver -Sensitivity attenuation LED
Weight: 2.500 kg total 1.200 kg transmitter 1.300 kg receiver
Frequency: 4 separate choices of frequencies
Current consumption: 95 mA
Tamper output contact rating: 30 V (AC/DC) < 1 A
Supply voltage: 12 ~ 30 VDC
Dimensions (W x H x D): 104 x 390 x 98 (mm)
