Product information "SPCW101.000 External aerial kit"

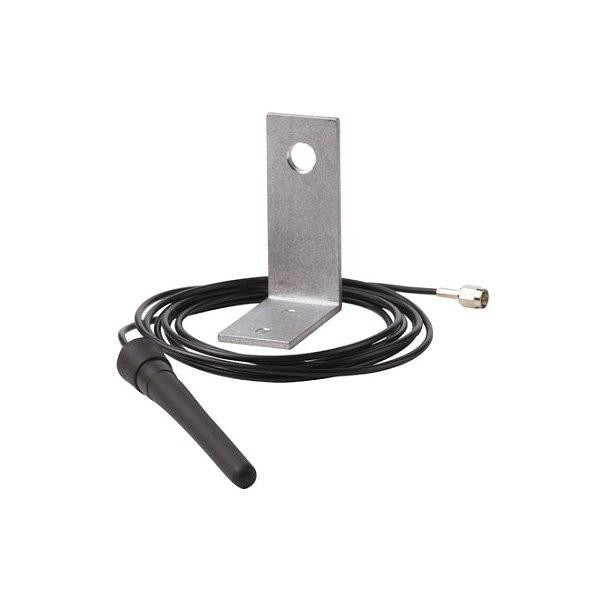

The SPCW101.000 external antenna kit (868 MHz) allows the connection of a GSM or wireless module in a cabinet to an externally mounted antenna for better reception level. The kit comes with a stub antenna, 2 m cable with connectors and a mounting bracket. The antenna connects to GSM-or wireless modules with fitted SMA connector for external antenna option.
Gross weight (KG) 0.06
Purchase unit PCE
EAN/UPC-Code: 4025515471295
Minimum order 1
ECCN N
Net weight 0.057
Material code V54559-B101-A100
Statistical code 85311030
Country of origin PH
Weight: 0.090 kg
Cable length: 2 m
