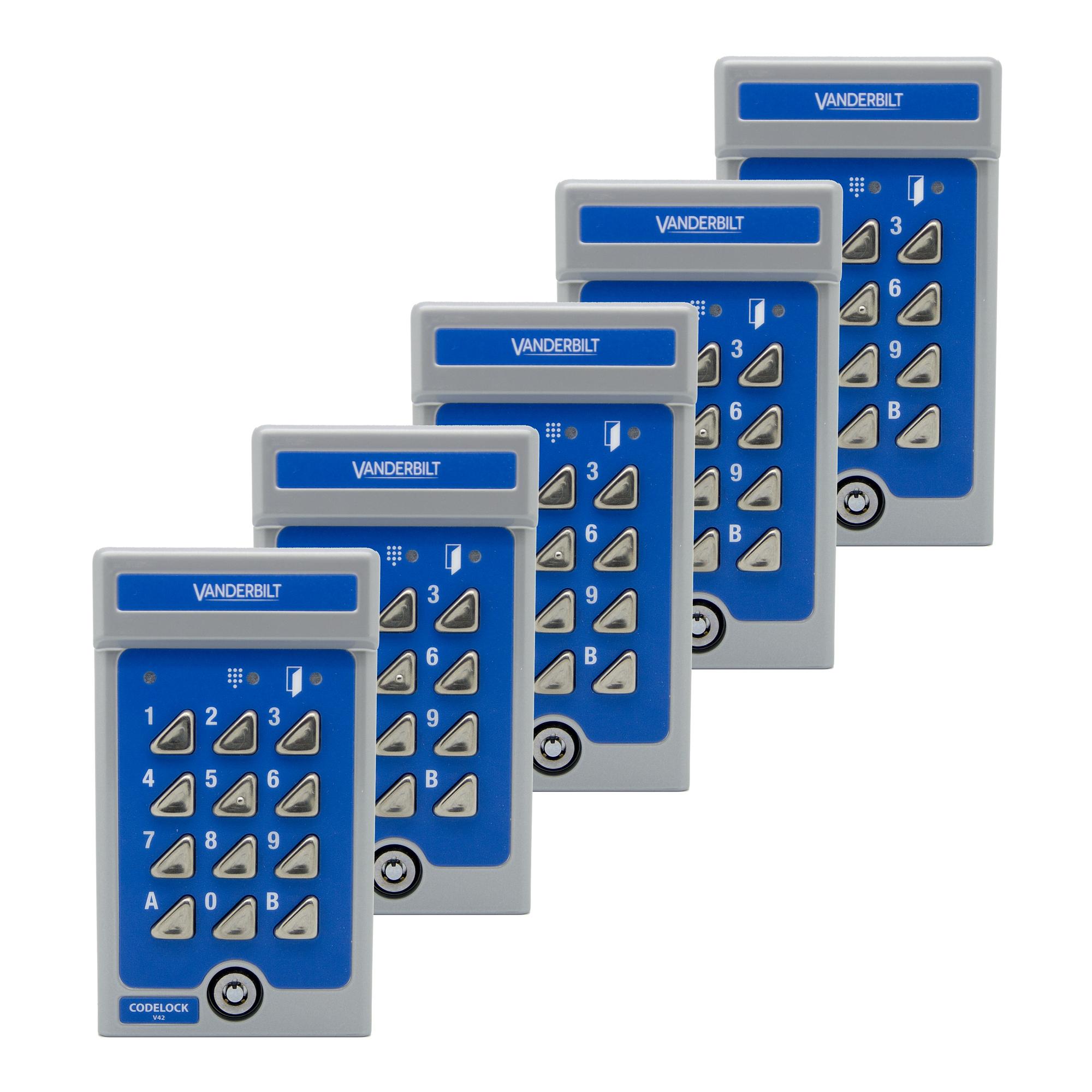

V42-5p V42 Codelock with 2 codes (5pcs)

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

temporarily out of stock, please check availability with your local Customer Service team.

  • V54521-S101-A100
Product information "V42-5p V42 Codelock with 2 codes (5pcs)"
The V42 is the best-selling codelock in the world. It is compact and easy to use with a modern design that is suitable for either indoor or outdoor mounting. The V42 has a capacity of two four-digit codes. One can be used by residents while the other is used by the property caretaker, for example. All settings are made directly in the unit.
Gross weight (KG) 0.1
Purchase unit PCE
Minimum order 1
ECCN N
Material code V54521-S101-A100
Statistical code 84719000
Net weight 0.100
Country of origin PH
Operating voltage: 12 to 24 VAC/DC
Weight: 0.72kg (per unit)
Operation temperature: -35°C to +55°C
Housing: Gegossenes Metall mit Tasten aus rostfreiem Edelstahl und Sicherheitsschloss
Housing protection: IP54
Housing material: Cast metal with stainless steel buttons and security lock
Housing protection (EN 60529): IP54 design
Operating temperature: -35 bis +55 °C
Colour: Blue
Environment: Indoor or outdoor use (IP54 design). In very exposed locations, use SH2 or SH1 rain cover.
Code capacity: Two four-digit codes
Opening time: 1–30 sec.
Outputs: Voltage-free relay contact, max. 1 A, 28 VDC.
Inputs: Exit button requests with delay. Two separate for code disable.
Current consumption: 8 mA in standby
Dimensions (W x H x D): 80mm x 140mm x 40mm
