SPCK521.100-N Compact Keypad w. CR Neu.

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54543-F116-A100
  • 4025515470991
Produktinformasjon "SPCK521.100-N Compact Keypad w. CR Neu."

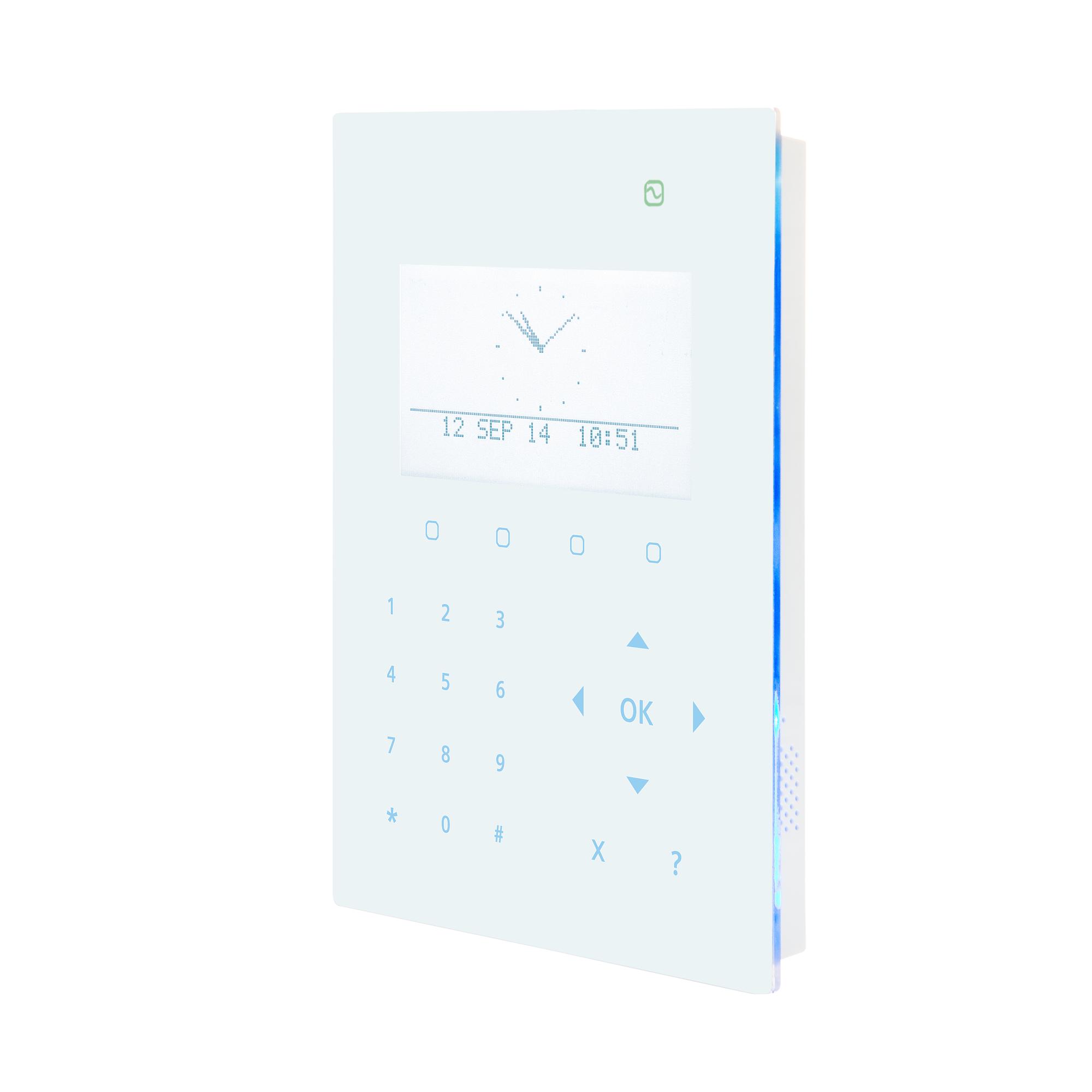

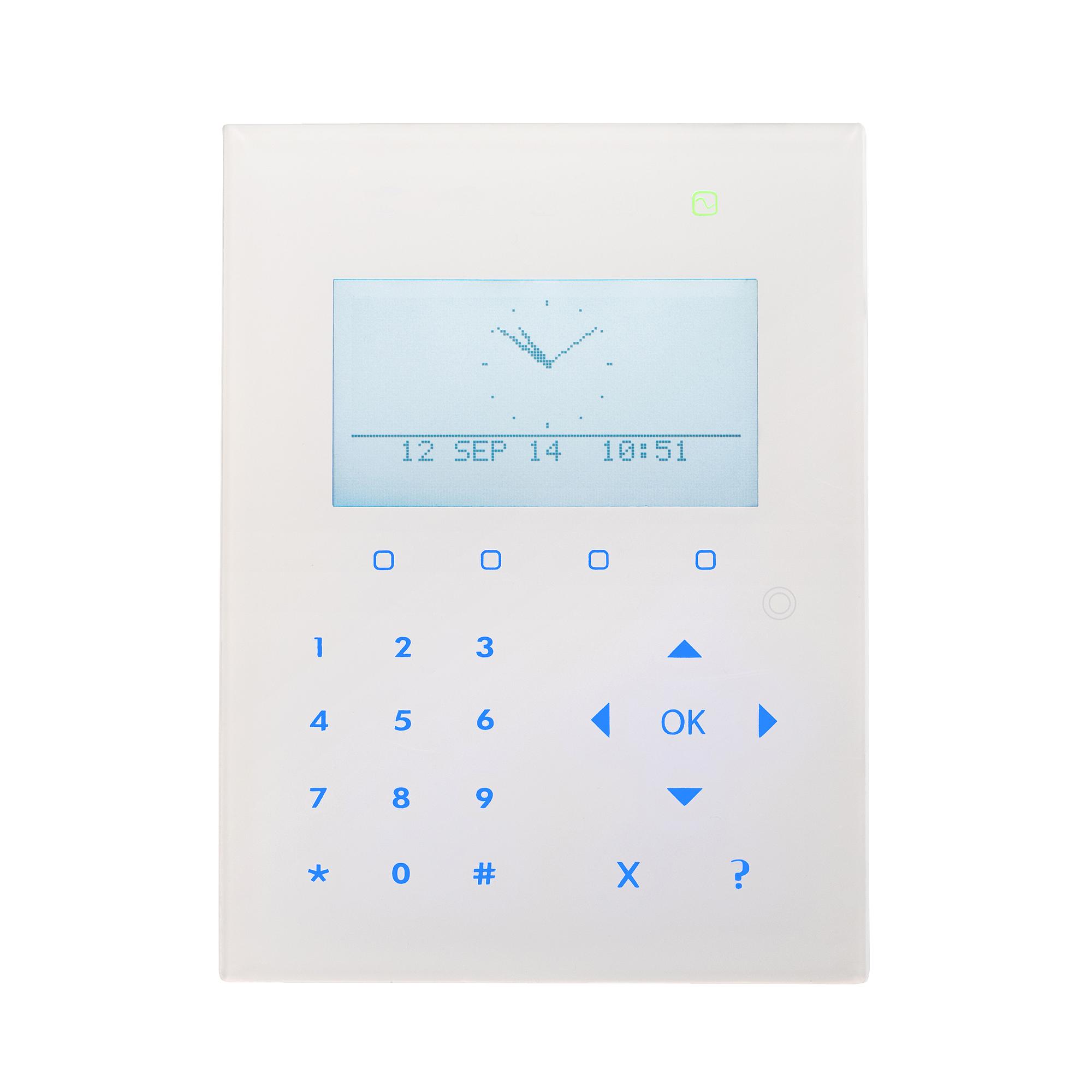

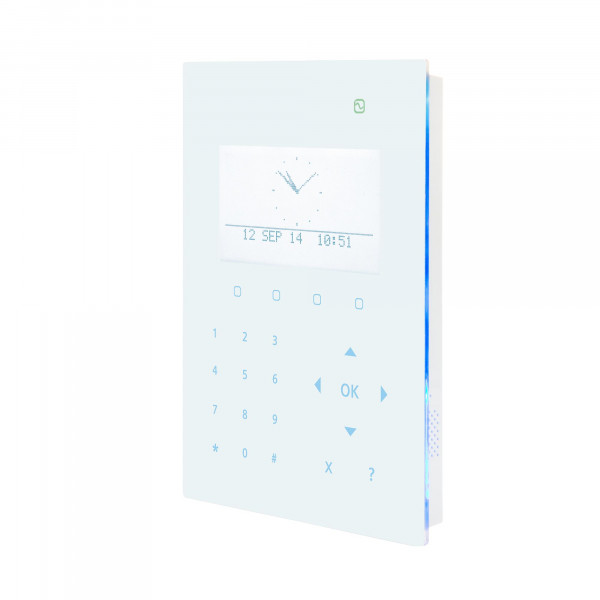

The SPCK521.100-N Compact Keypad is slim, stylish and feature packed. With touch key technology, the 4 soft keys and navigation keys allow easy operation with a minimum number of steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. The integrated speaker enhances the user experience with audio annunciation. Support for EM and Mifare card technologies are provided by integrated readers allowing for quick user authentication. Customer logo, emergency or quick set functions can be displayed in idle state. Various mounting options and accessories provide a complete keypad interface.
Bruttovekt (KG) 0.325
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515470991
Mindestabnahme 1
ECCN N
Materialkode V54543-F116-A100
Statistisk kode 85311030
Netto vekt 0.309
Opprinnelsesland PH
ECCN: N
Interfaces: X-BUS (in, out)
Card technology: EM 4102 (125kHz) and Mifare (13.56 MHz) supported
Quiescent current: Max. 95 mA at 12V DC
Operating current: Max. 210 mA at 12V DC (backlight, LEDs, audio, reader operated)
Housing: Plastic housing (PMMA, PC ABS, ABS)
Weight: 0.250 kg
Mounting: Flat surface, wall-mounted or flush mounted using SPCY520 / SPCY521
Audio: Supported via integrated speaker
Keypad: Touch key technology
Operating temperature: 5 ~ +40 °C
LED Indicators: 5 status LEDs
LCD Display: 128 x 64 pixels (approx. 6 x 20 characters)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 110 x 150 x 17.5 mm
