SPCE652.100 Expander.8In/2Out,backtamp.

SPCE652.100 Expander.8In/2Out,backtamp.
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54542-F106-A100
  • EAN/UPC-Code: 4025515470854
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCE652.100 Expander.8In/2Out,backtamp."

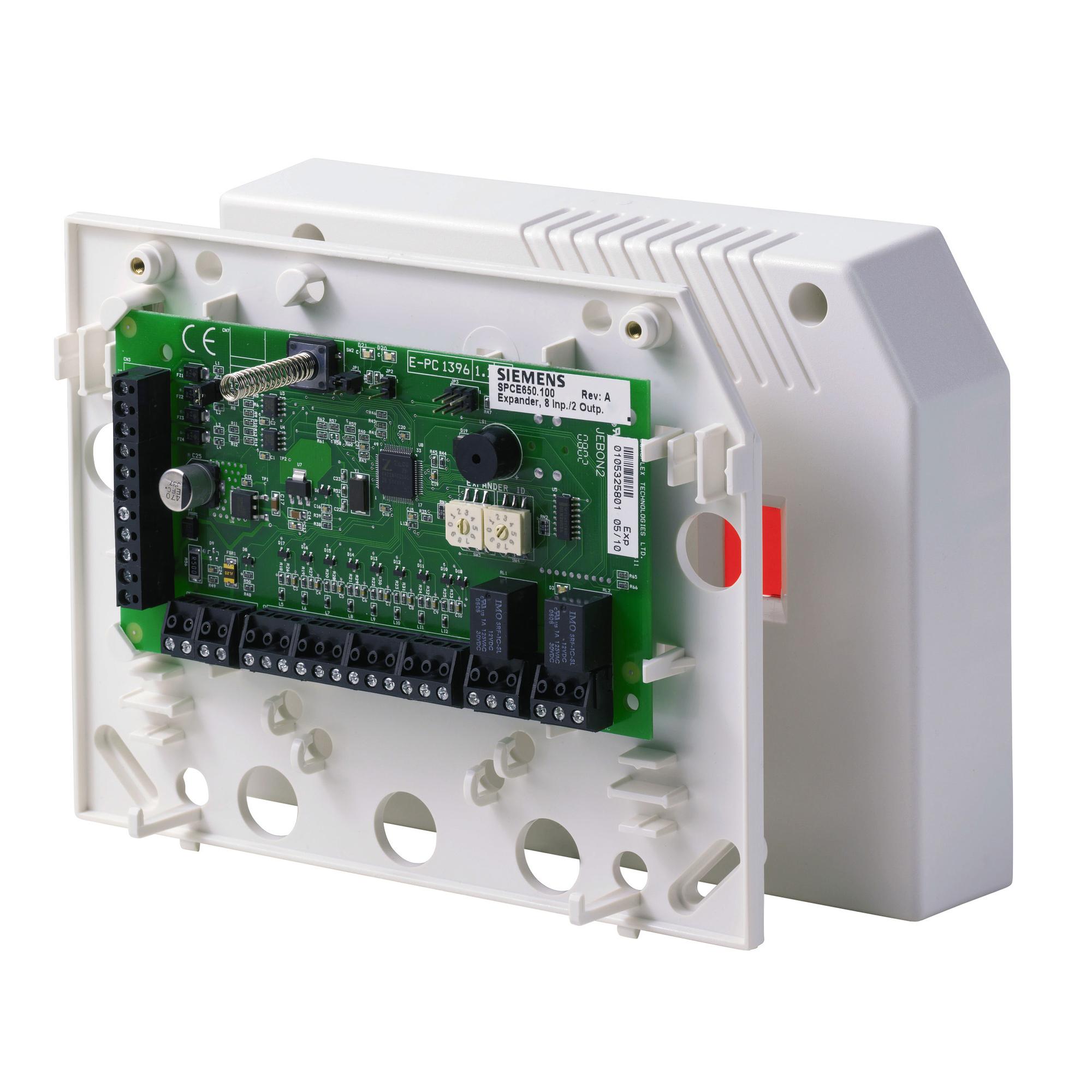

The SPCE652.100 expander extends the acre Intrusion system via X-BUS with 8 wired zones and 2 fully programmable relay outputs. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front and back tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.53
Purchase unit PCE
EAN/UPC-Code: 4025515470854
Minimum order 1
ECCN N
Material code V54542-F106-A100
Statistical code 85311030
Net weight 0.460
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Tamper contact: Front spring tamper, back tamper
Weight: 0.350 kg
Number of on-board relays: 2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Quiescent current: Max. 40 mA at 12 VDC
Operating current: Max. 80 mA at 12 VDC (all relays activated)
Interfaces: X-BUS (in, out, branch)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Number of on-board zones: 8
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 200 x 153 x 47 mm (housing), 150 x 82 x 20 mm (PCB)
