GB-5000-IN Relay-Interface for GB

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54550-F112-A100
EAN/UPC-Code: 4025515478911

Close menu

Product information "GB-5000-IN Relay-Interface for GB"

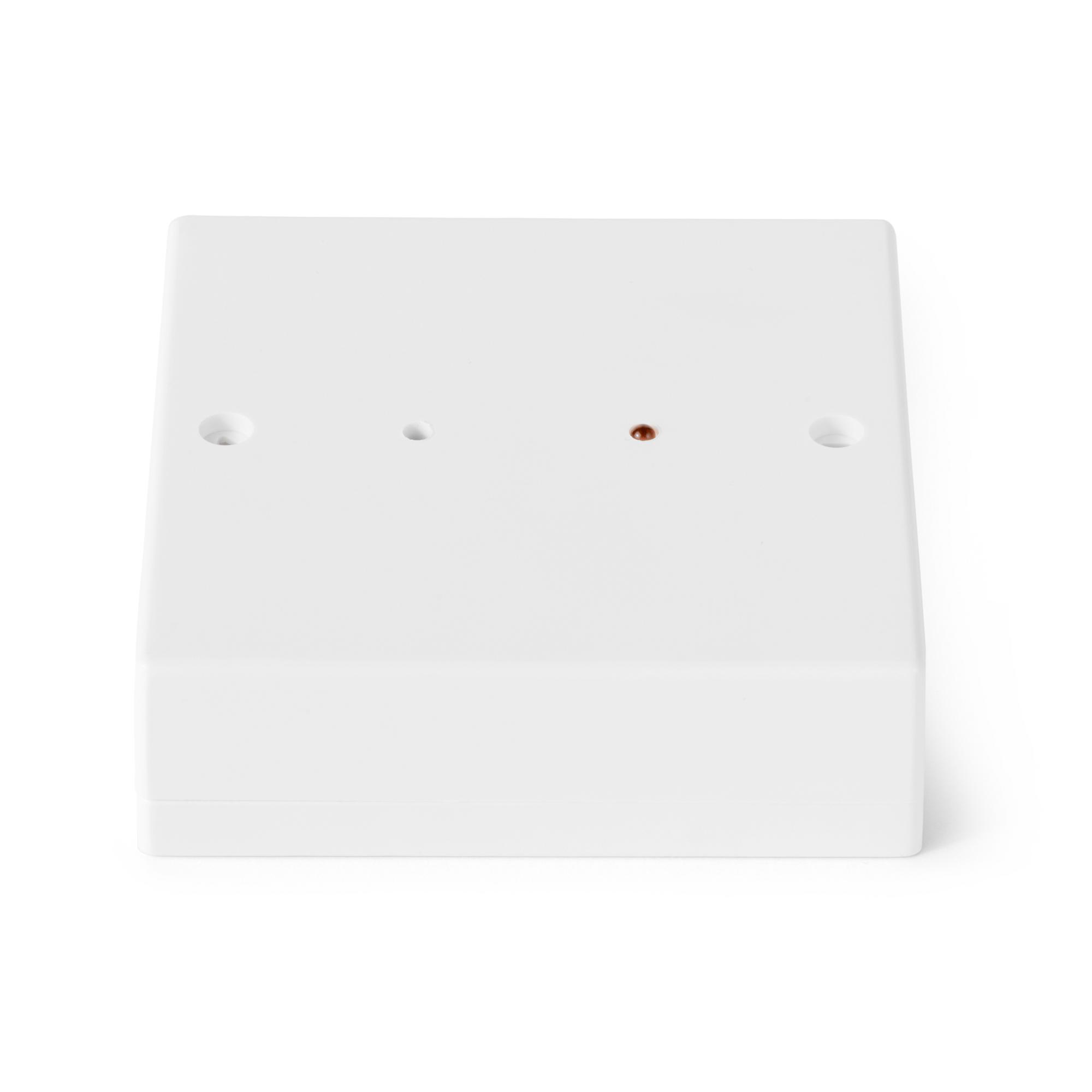

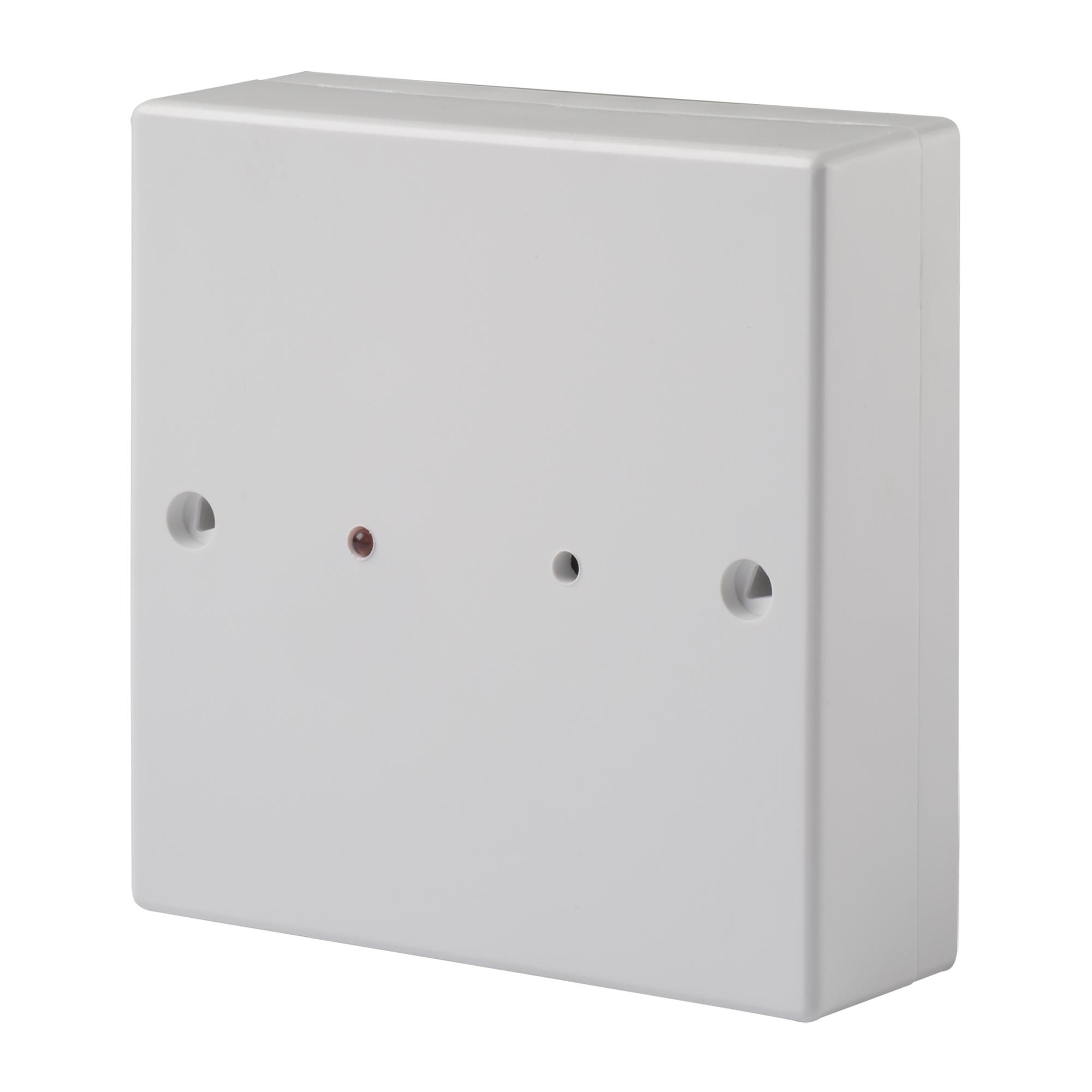

The Relay-Interface is needed, if the line doesn’t allow to connect glass break detectors. This could happen because of several reasons: At series-technology, digital supervision or if the line-voltage is below 3 V. As a connecting link between a glass break detector and the panel, the Relay-Interface can be connected at or in each loop because of it’s floating relay-contact. The electronic is placed in a plastic case. It allows the lead-in of wire on three sides. The housing-cover is monitored against unauthorized opening by a tamper-switch. Secondary Packaging: 25 Units

Close menu

Gross weight (KG)	0.08
Purchase unit	PCE
EAN/UPC-Code:	4025515478911
Minimum order	1
ECCN	N
Material code	V54550-F112-A100
Statistical code	85311030
Net weight	0.076
Country of origin	DE

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Quiescent current:	5 mA
EOL resistor:	2.2 kΩ
Approval:	VdS Klasse B (pending)
Housing material:	S-B, A-B-S
Operating temperature:	30 °C ~ 60 °C
Switching voltage:	Max. 24 VDC
Current consumption, quiescent:	5 mA
Current consumption:	13.5 mA
Environmental class:	II
Contact resistance:	5 Ω
Switching current:	Max. 200 mA
Supply voltage:	10 ~ 15 V DC
