SPCA210.100 2-Door expander
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54547-A101-A100
- EAN/UPC-Code: 4025515471189

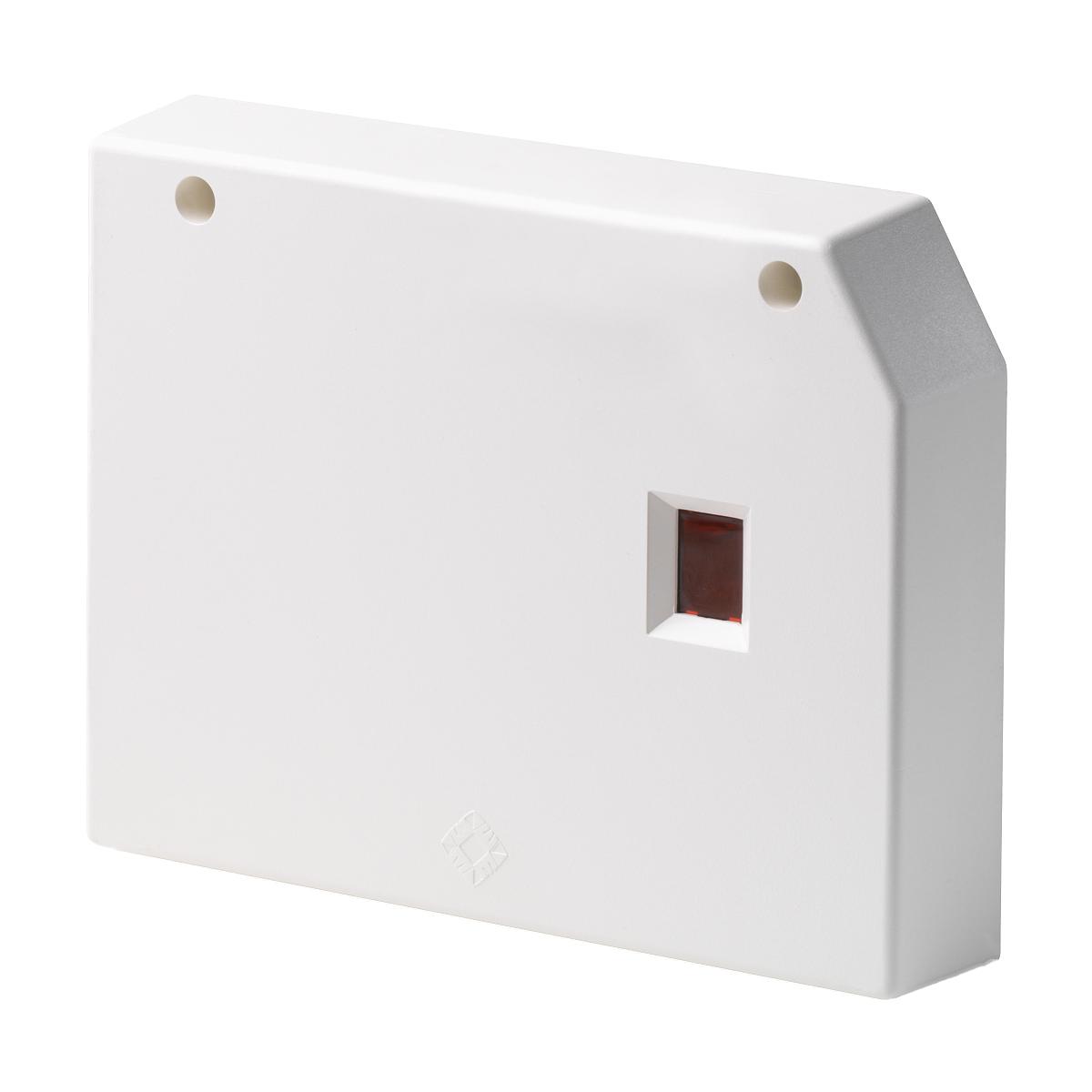

Product information "SPCA210.100 2-Door expander"
The SPCA210.100 2-door expander extends the SPC controller with advanced door control functionality for 2 entry doors or 1
entry/exit door. The device features 2 Wiegand/Clock&Data interfaces, 4 LED control outputs (1 void / valid per reader), 4 zones (1
position- and 1 opening switch per door), 2 relay outputs (1 lock per door) and an on-board buzzer to signal "door open too long" events.To allow greatest flexibility, the zones and outputs are freely programmable for other purposes if not used for door
control. Up to 512 priority card holders can be stored on the expander for standalone operation in case of communication loss to
the control panel. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and
on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
- Certificate (CE) - Issued by Vanderbilt, on 06/02/2019
- Certificate - Issued by INCERT, on 09/05/2022
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 28/06/2021
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VSÖ, on 17/09/2018
- Certificate - Issued by KVALITET, on 06/05/2019
- Certificate - Issued by ANPI, on 02/05/2022
- Certificate - Issued by INCERT, on 13/10/2022
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 13/10/2022
- Certificate - Issued by VSÖ, on 12/01/2023
- Datasheet
- Installation Manual - (Multilingual) - spca210
- Product Support Guide - (Swedish) - SPC Av MF1040 MF1050 till A210
- Product Support Guide - (English) - SPCA210 Card reader wiring
- Product Support Guide - (English) - Readers wiring and Configuration
- Product Support Guide - (French) - Activation LEDs sur lecteur de cartes
- Product Support Guide - (French) - Commande de porte mode bistable
- Product Support Guide - (French) - Lecteur et Clavier STID ARC B sur SPC
- Product Support Guide - (French) - Lecteur STID ARC A sur SPC
- Product Support Guide - (English) - Wiring RS485 twisted pair
- Product Support Guide - (English) - SPC over fibre
- Product Support Guide - (English) - VR40 Mifare to SPCA210.100 via OSDP
- Product Support Guide - (English) - SPC - Dual Authorisation
- Product Support Guide - (English) - Biometric Reader with SPC
- Product Support Guide - (French) - Biometric Reader with SPC
- Product Support Guide - (Spanish) - SPC a traves Fibra
- Product Support Guide - (English) - XT-1/XT mini tagmaster with Vanderbilt
- Product Support Guide - (French) - Accès sans alarme
- Application Note - (English) - PR SP HD PM500 connected to SPCA via ClockData
- Application Note - (English) - PR SP HD PM500 connected to SPCA via Wiegand 32bit
- Application Note - (English) - AR6111 MX connected to SPCA via Wiegand 32bit
- Application Note - (English) - AR618x MX connected via Wiegand to SPCA210 100
- Application Note - (English) - AR618x RX connected to SPCA210 100 via Wiegand
- Application Note - (English) - PP500 Cotag EM connected to SPCA210 100 via Clock Data
- Application Note - (English) - PP500 Cotag EM to SPCA210 100 via Wiegand 26bit
- Application Note - (English) - PP500 Cotag EM to SPCA210 100 via Wiegand 48bit
- Application Note - (English) - AssaAbloy Aperio HUB AH20 connection SPCA210 100 via Wiegand
- Application Note - (English) - AR618x MX connected to SPCA210 100 via Clock Data
- Application Note - (English) - AR618x RX connected to SPCA210 100 via Clock Data
- Application Note - (English) - SPCA210 with HMD Leser to SPC VDS
- Application Note - (English) - VR20/VR50 to SPCA210.100 via Wiegand 32bit
- Application Note - (English) - VR20/VR50 to SPCA210.100 via Wiegand 37bit
- Application Note - (English) - PHG Voxio Touch connected via Wiegand
- Application Note - (English) - PHG Feller A 1250 A Wiegand SPC
- Application Note - (English) - FDX60M1 Fiber Multimode to X Bus SPC
