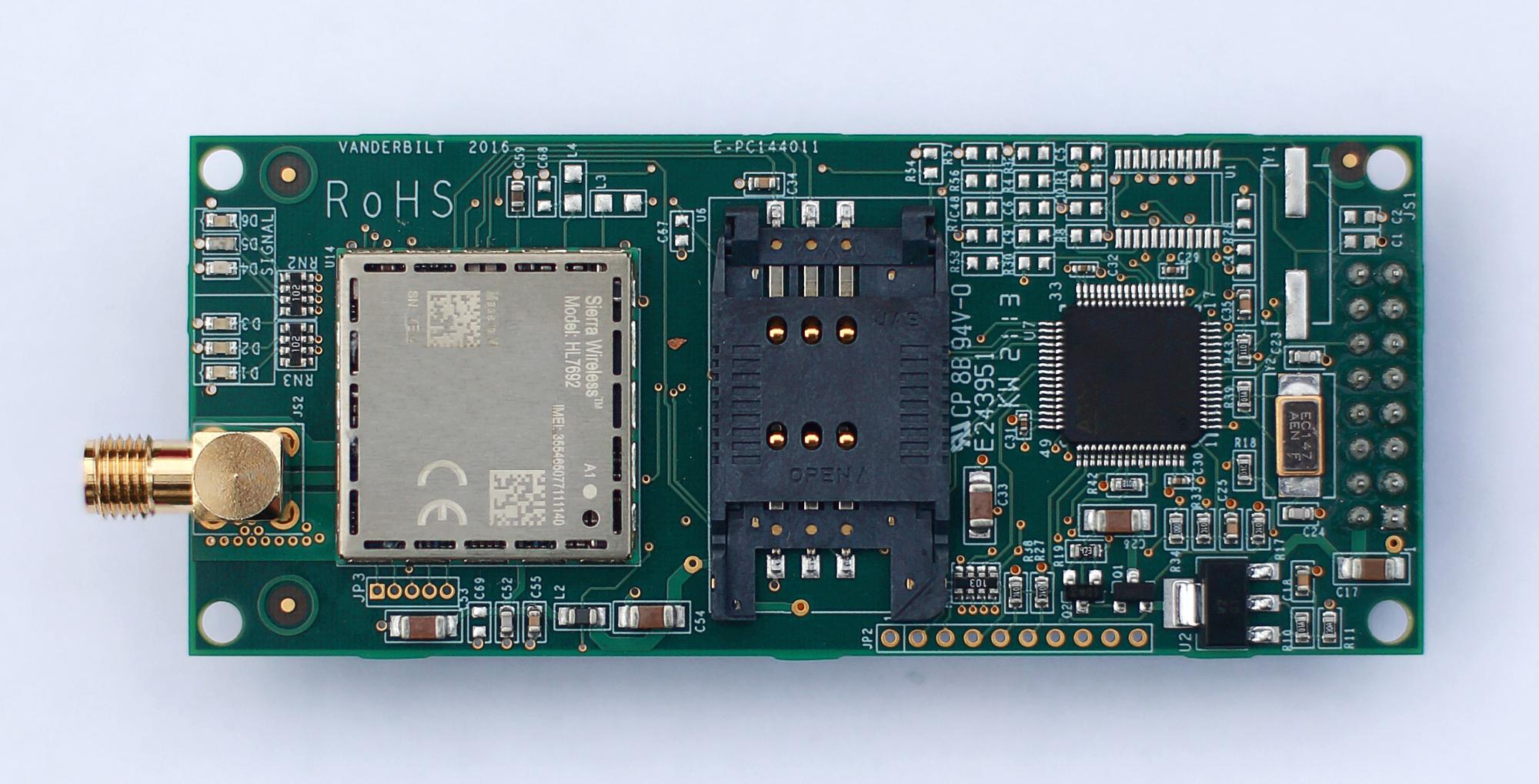

SPCN342.000 2G/3G/4G Module incl.antenna

Preview: SPCN342.000 2G/3G/4G Module incl.antenna Preview: SPCN342.000 2G/3G/4G Module incl.antenna
SPCN342.000 2G/3G/4G Module incl.antenna
SPCN342.000 2G/3G/4G Module incl.antenna

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54550-B102-A600
  • EAN/UPC-Code: 7330082006700
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "SPCN342.000 2G/3G/4G Module incl.antenna"
The SPCN342.000 2G/3G/4G module can be assigned to any mobile network by the insertion of a standard SIM card. The modem is compatible with the complete range of acre Intrusion panels and plugs directly on the main PCB removing the need for any additional wiring. The unit comes with an external antenna that fits on the cabinet. The modem communicates with an alarm receiving centre (ARC) using IP based protocols like EDP or FlexC over 2G/3G/4G (FW3.14.1 or later) to transmit alarm event to compatible alarm receiving centres. It also supports PPP connection to acre Intrusion Connect Pro Software for remote programming and configuration up-/download. The SMS feature allows user/engineer to be sent a predefined text when selected events occur in the system or receiving of predefined SMS commands for security system control. The 2G/3G/4G modem can be used as the primary source of communication or as backup to the PSTN modem or IP communication.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.126
Purchase unit PCE
EAN/UPC-Code: 7330082006700
Minimum order 1
Country of origin PH
Net weight 0.056
Material code V54550-B102-A600
ECCN 3A991
Statistical code 85176200
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Mounting: Plug on module to acre intrusion controller
Firmware: FW3.14.1 or later
Approval: EN, VDS
Relative humidity: Max. 90 % (non-condensing)
Operating current: Max. 130 mA at 12 VDC
Weight: 0.130 kg
Quiescent current: Max. 40 mA at 12 VDC
Operating temperature: -10° ~ +50 °C
