SPCK420.100-N LCD-KP 2x16 Char, Neutr.

Preview: SPCK420.100-N LCD-KP 2x16 Char, Neutr. Preview: SPCK420.100-N LCD-KP 2x16 Char, Neutr.
SPCK420.100-N LCD-KP 2x16 Char, Neutr.
SPCK420.100-N LCD-KP 2x16 Char, Neutr.

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54543-F101-B100
  • EAN/UPC-Code: 4025515470946
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCK420.100-N LCD-KP 2x16 Char, Neutr."

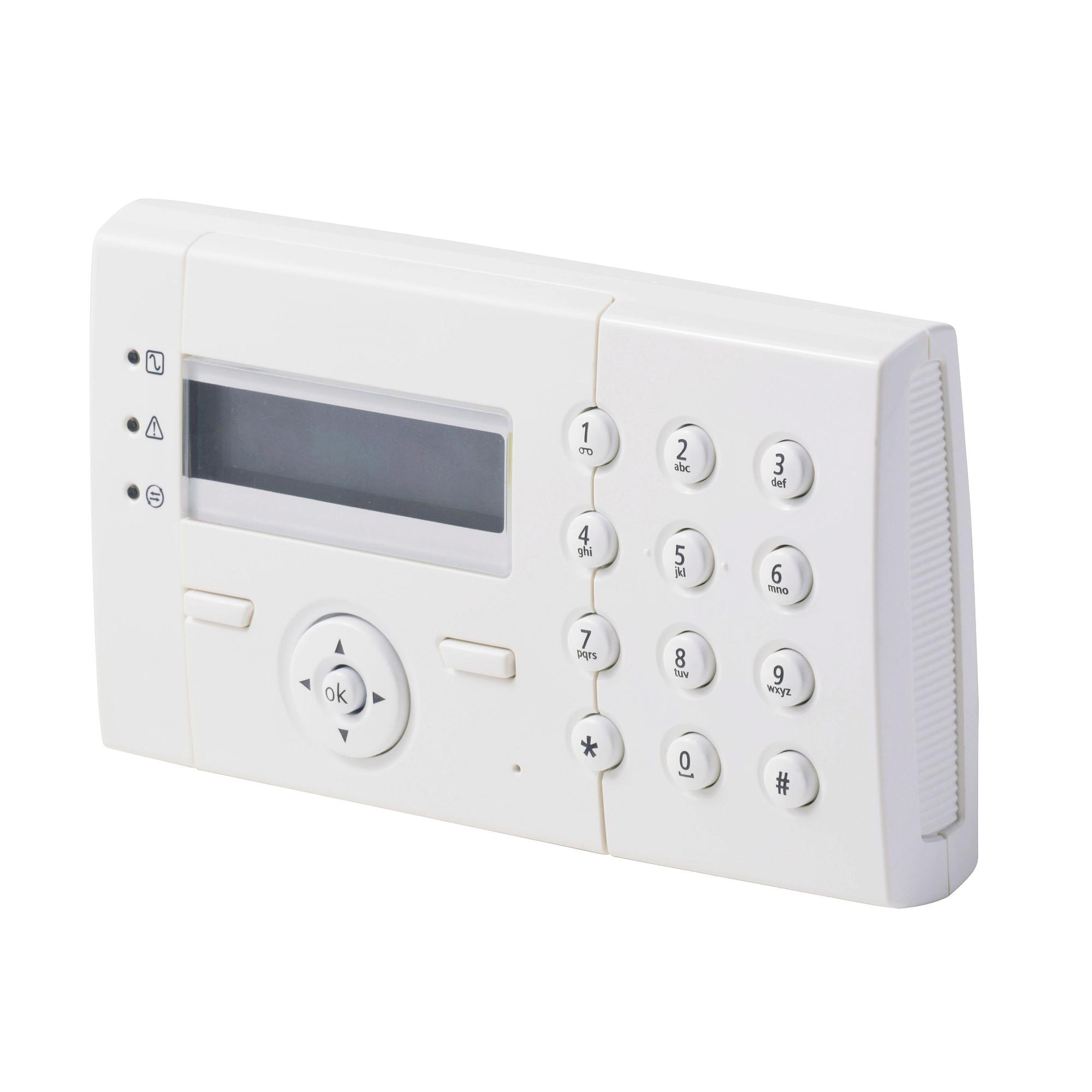

The SPCK420.100 LCD keypad provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad. The keypad comes as neutral version without printed logo.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.25
Purchase unit PCE
EAN/UPC-Code: 4025515470946
Minimum order 1
ECCN N
Material code V54543-F101-B100
Statistical code 85311030
Net weight 0.238
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Approval: AT: VSÖ Klasse GS-N, Nr.: GS-N 130603/77 E mit SPC5330.320
Housing: Plastic housing (ABS), no logo
Tamper protection: Front / back spring tamper
Weight: 0.210 kg
Colour: RAL 9003 (signal white)
Operating temperature: 5° ~ +40 °C
Mounting: Flat surface, wall-mounted
Quiescent current: Max. 45 mA at 12 VDC
Operating current: Max. 90 mA at 12 VDC (backlight, LEDs, sounder operated)
Operating voltage: 9.5 ~ 14 VDC
Interfaces: X-BUS (in, out)
LED Indicators: 3 status LEDs
LCD Display: 2 x 16 characters
Dimensions (W x H x D): 148 x 85 x 33 (mm)
