WPIR Wrls. 12m PIR with PI

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54538-F109-A200
EAN/UPC-Code: 7330082006052

Close menu

Product information "WPIR Wrls. 12m PIR with PI"

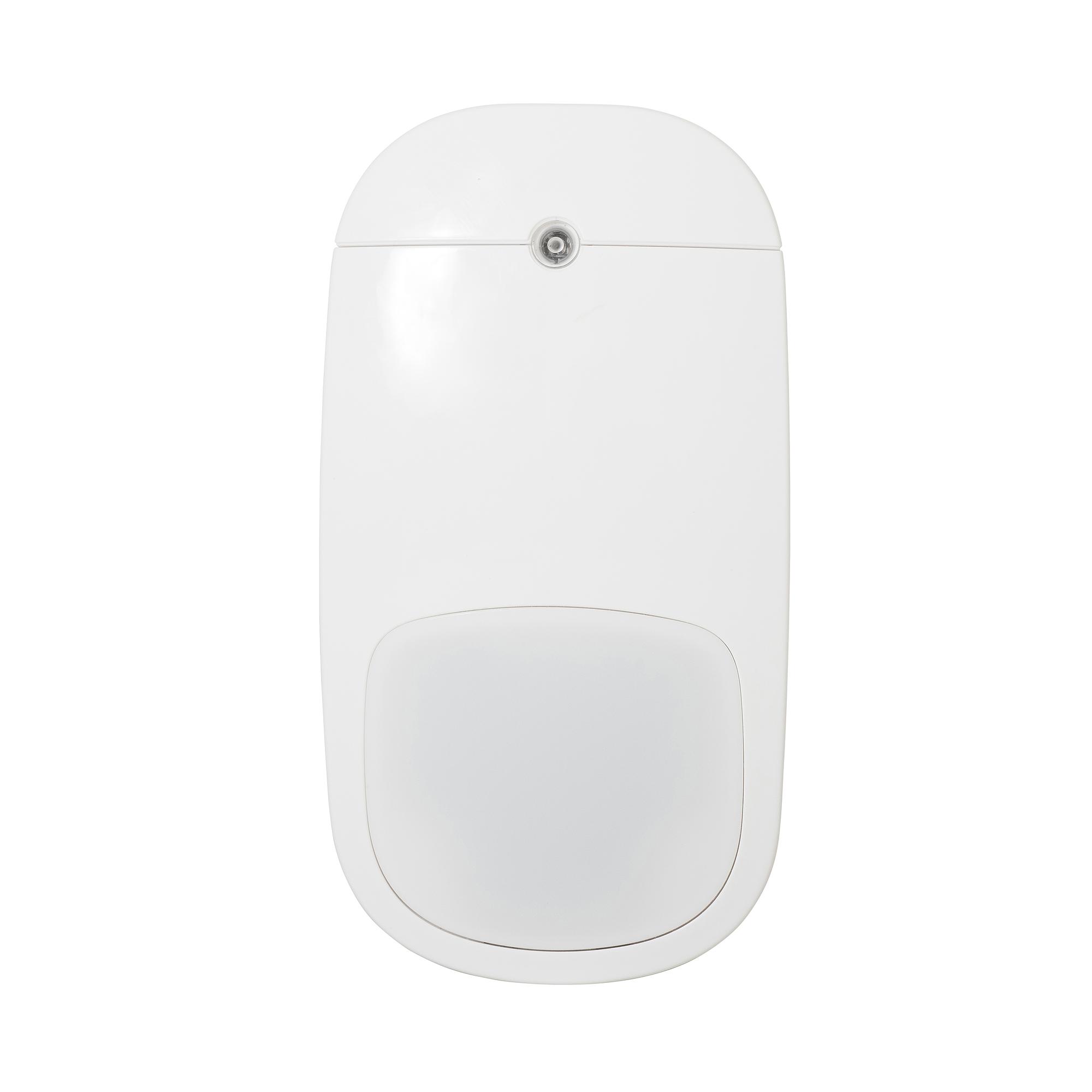

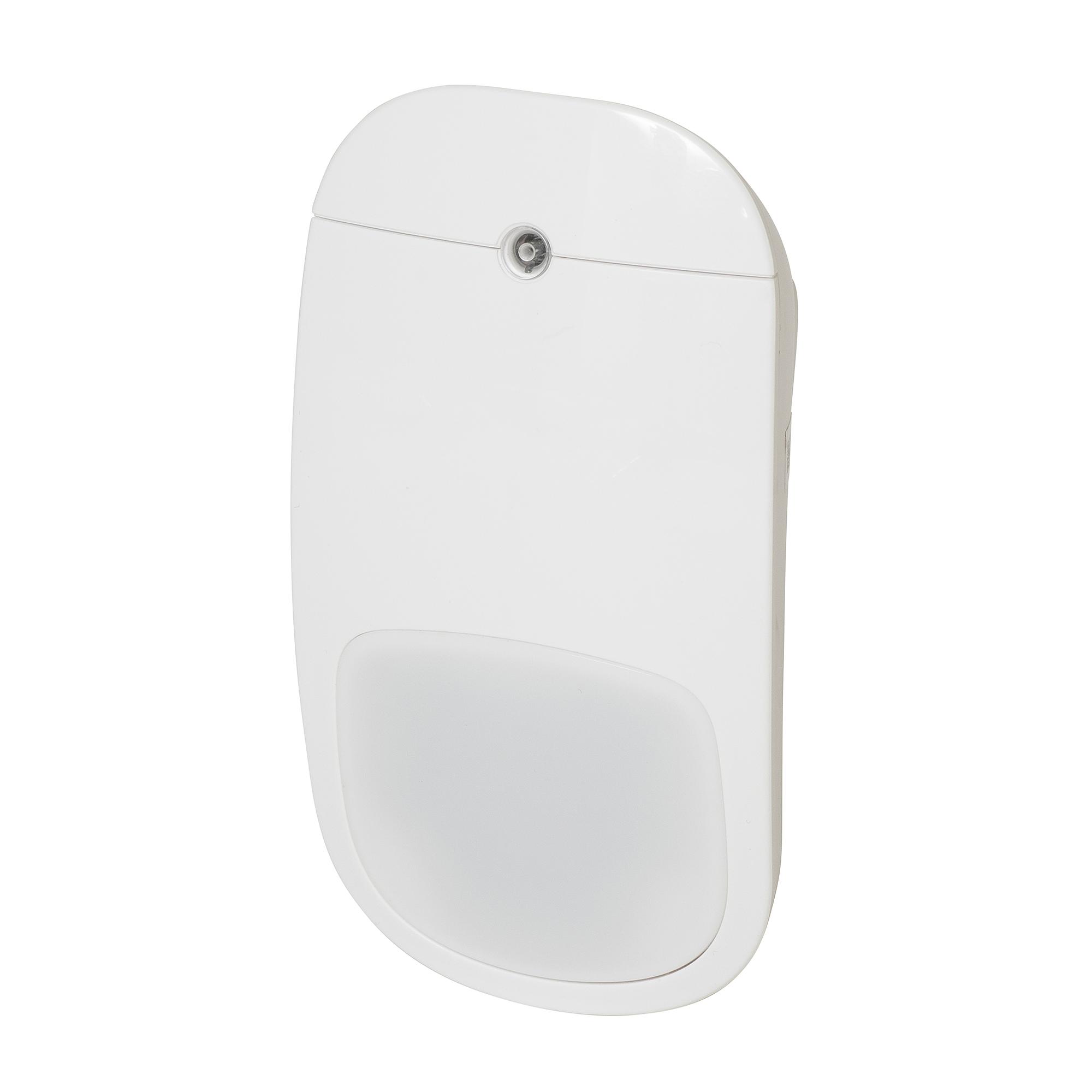

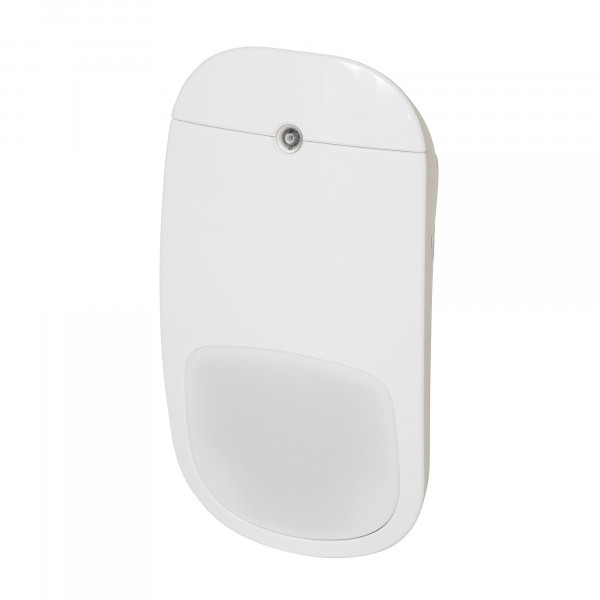

The WPIR wireless detector is a passive infrared quad element motion detector which is supported by the acre Intrusion system. The device has a 12m detection range and has configurable settings such as sensitivity, pulse count, supervision time, LED operation and Pet Immunity.

Gross weight (KG)	0.1
Purchase unit	PCE
EAN/UPC-Code:	7330082006052
Minimum order	1
Statistical code	85311030
Material code	V54538-F109-A200
ECCN	EAR99
Net weight	0.100
Country of origin	IL

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Operating temperature:	-10 ~ +50 °C
Range:	up to 1200m in open air
Max. pet weight:	up to 25kg
LED Indicators:	Red LED: PIR Activated Green LED: Walk test
Detection characteristics / range:	12m
Current consumption:	Standby ~11 µA Receive mode ~10 mA Transmit mode ~45 mA
Frequency:	868 - 869 Mhz
Dimensions (L x W x H):	108mm x 58mm x 42.5mm
Weight:	135 g
