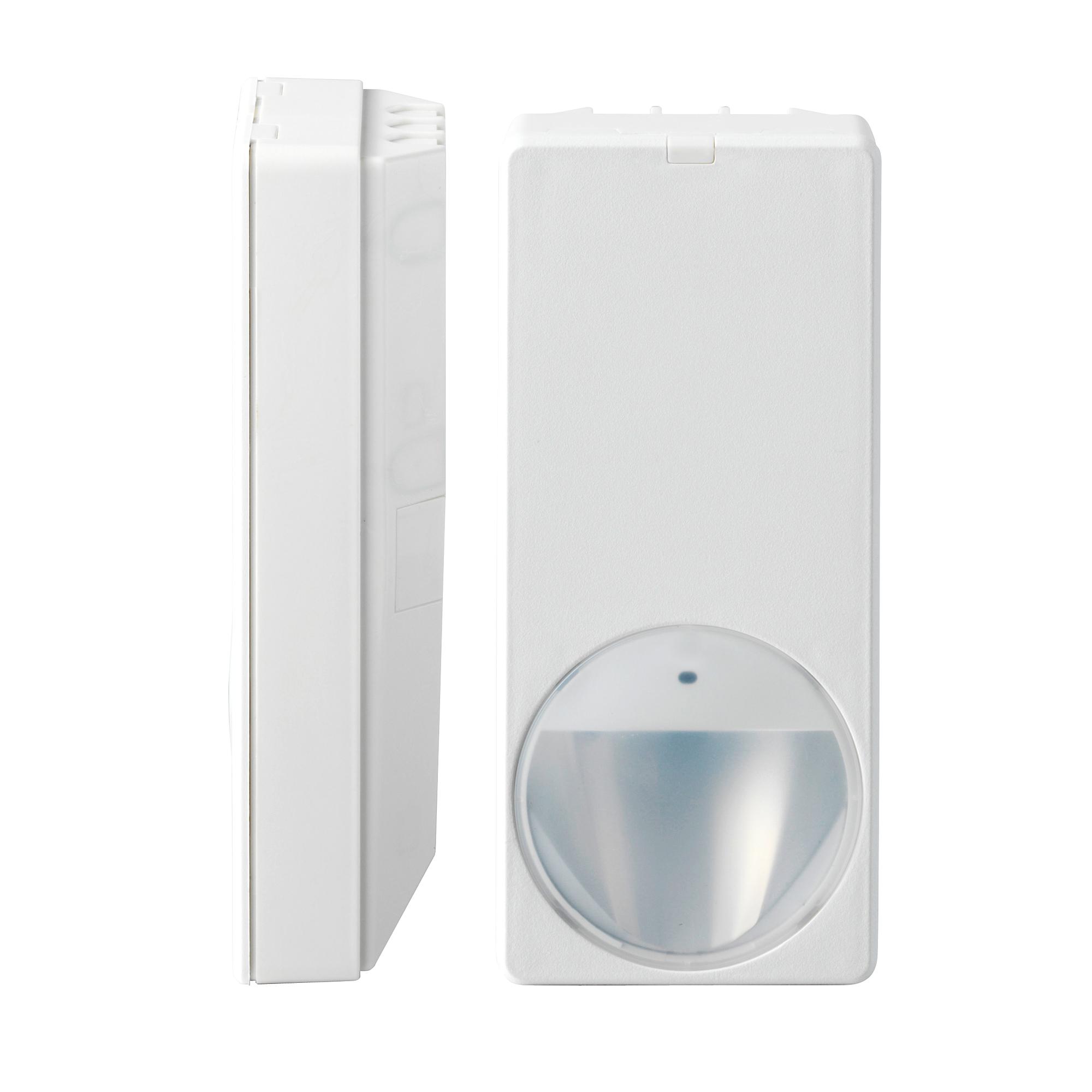

PDM-I12 PIR detector

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54530-F114-A100
  • 4025515470403
Product information "PDM-I12 PIR detector"
MAGIC motion detector PDM-I12 is impressive with its thin and flat design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Gross weight (KG) 0.125
Purchase unit PCE
EAN/UPC-Code: 4025515470403
Minimum order 1
Statistical code 85311030
Country of origin RO
Net weight 0.119
Material code V54530-F114-A100
Walking speed: 0.2 ... 3 m/s
Air humidity (EN 60721): < 95% RH, non-condensing
Colour: RAL9003
Outputs: 30 VDC / 100 mA, NC
Walk test input: Low ≤ 1,5 V / high ≥ 3,5 V
Set/unset input: Low ≤ 1,5 V / high ≥ 3,5 V
Current consumption: 2.5 mA (rms) 4.7 mA (max. peak)
EOL resistor: RI = 4.7 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW
Sensitivity evaluation mode: 4 settings
Weight: 0.1kg
Storage temperature: -20 ~ +60°C
Approval: EN50131-2-2 grade 2VdS Klasse B
Dimensions (W x H x D): 57 x 128 x 32 (mm)
Operating temperature: -10 ~ +55 °C
Housing protection (EN 60529): IP41 / IK02
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Detection characteristics / range: Volumetric / 12m
Supply voltage: 9 ~ 16 VDC (12V nom.)
