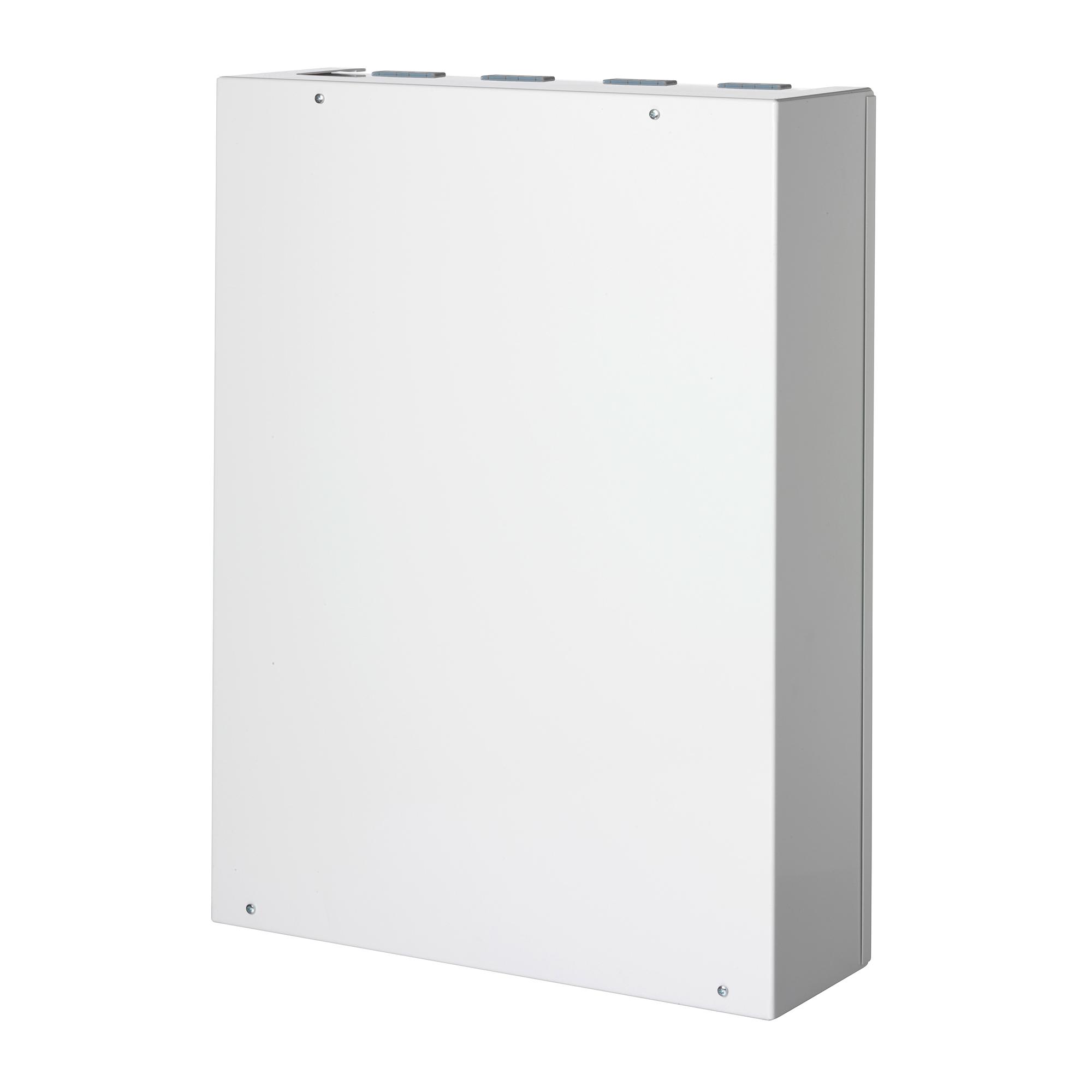

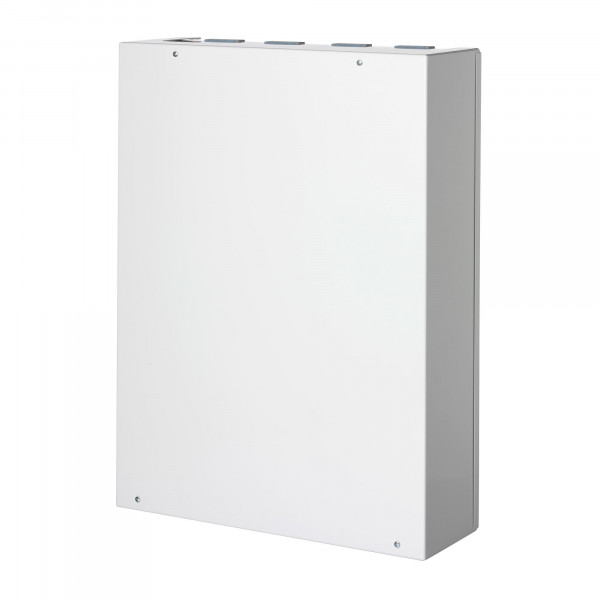

SPC6350.320-L1 Intrusion CP, G5

SPC6350.320-L1 Intrusion CP, G5
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54541-C118-A100
  • EAN/UPC-Code: 4025515470816
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPC6350.320-L1 Intrusion CP, G5"
The SPC6350.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 512 zones (16 on-board), 512 outputs (12 on-board), 32 system keypads, 64 doors, 16 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 60 areas, 2500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 64 detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for 2 optional 27 Ah batteries and 4 additional expanders.
Certificates
Close menu
Import & Export
Gross weight (KG) 21
Purchase unit PCE
EAN/UPC-Code: 4025515470816
Minimum order 1
ECCN N
Statistical code 85311030
Country of origin PH
Net weight 19.950
Material code V54541-C118-A100
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Number of on-board zones: 16
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Interfaces: 2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Output voltage: 13-14 VDC in normal conditions (mains powered and fully charged battery)
Operating temperature: 0 ~ +40 °C
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)
Housing: Metal housing (1.5 mm mild steel)
Relay outputs: 4 (single-pole changeover, 30 V DC / max. 1 A resistive switching current)
Door capacity: Max. 64 entry doors or 32 entry/exit doors
Tamper contact: Front / back tamper, 1 auxiliary tamper contact input
Operating current: Max. 415 mA at 12 VDC (all relays activated)
Quiescent current: Max. 350mA at 12 VDC
Language: Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv.
Approval: DE: VdS G112104, Klasse C AT: W 130923/10 E, Klasse WS In Zertifizierungsverfahren nach SES EN CH Grad 3 FFIS A 11001 A - 1 bis Kat. 2 Ablauf der FFIS Genehmigung per 31.12.2014
Power output: Max. 2,2 A @ 12 V DC (8 x outputs with 300 mA)
Weight: 18,6 kg (housing incl. cover), 11,5 kg (housing without cover)
Max. number of wireless zones: 64 (take away wired zones)
Verification: 16 verification zones with max. 4 IP-cameras and 16 audio devices.
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Max. number of hardwired zones: 512
Colour: RAL 9003 (signal white)
Firmware: V3.6
Event memory: 10'000 intrusion events, 10'000 access events
Dimensions (W x H x D): 498 x 664 x 157 (mm)
