SPCG310.000 E-Bus Gateway

Preview: SPCG310.000 E-Bus Gateway Preview: SPCG310.000 E-Bus Gateway
SPCG310.000 E-Bus Gateway
SPCG310.000 E-Bus Gateway

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54554-A101-A100
  • EAN/UPC-Code: 4025515471134
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCG310.000 E-Bus Gateway"

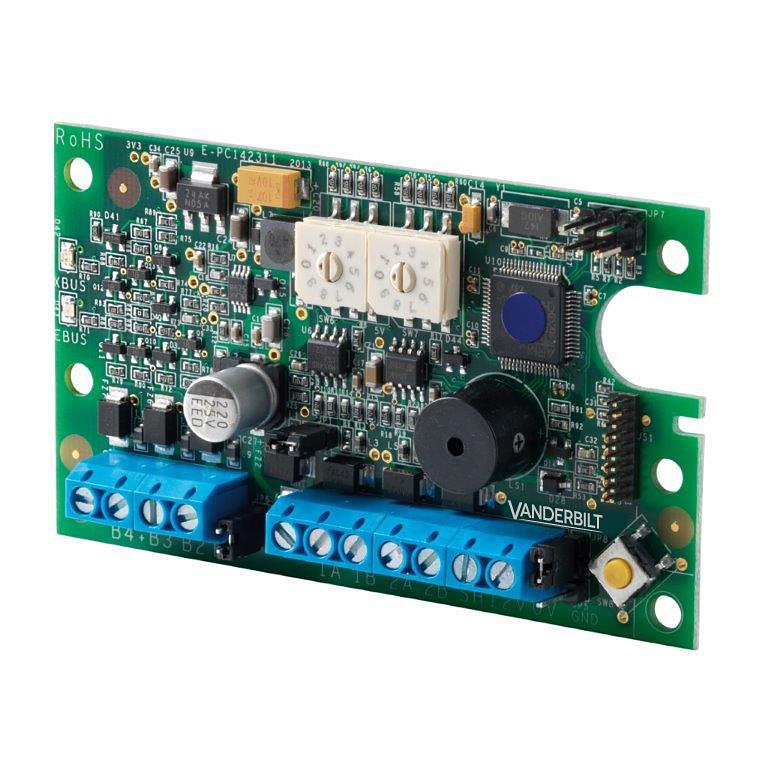

The SPCG310.000 E-BUS Gateway provides an interface between SPC X-BUS and Sintony E-BUS. The gateway enables the SPC controller to recognize Sintony peripheral devices by simulating the E-BUS devices so they appear to the SPC controller as X-BUS devices. The SPC controller supports up to five acre Intrusion E-Bus Gateways on its X-BUS. The maximum number of Sintony input zones supported by SPC is 252 and the maximum number of Sintony outputs is 174. The SPCG310.000 is supplied without housing. There are a number of housing options available. The acre Intrusion E-Bus Gateway can be mounted within the SPC controller housing, Sintony power supply units or in Sintony transponder housing.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.08
Purchase unit PCE
EAN/UPC-Code: 4025515471134
Minimum order 1
Statistical code 85311030
ECCN EAR99
Material code V54554-A101-A100
Net weight 0.076
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Tamper contact: Tamper switch
Air humidity (EN 60721): Max. 90%rh, non-condensing
Dimensions (L x W x H): 52 x 92 x 13 (mm)
Tamper switch: Yes
Max. number of hardwired zones: 252 (Sintony Inputs)
Compatibility: - SAT12/SMT12 - SMT22 - SAT24/SMT24 - SMT44 - SAK41 - SAK51 - SAK53 - SAP08 - SAP14 - SAP20 - SAP25
Relative humidity: Max. 90% (non-condensing)
Weight: 0.020 kg
Operating temperature: -10 to +50 °C
Mounting: - SPC controller housing - Sintony transponder housing - Sintony PSU housing
Quiescent current: 40 mA
Operating current: 40 mA
Operating voltage: 9.5 - 14 V DC
Interfaces: X-BUS (In / Out) E-Bus
Approval: VdS Class C, SES, VSÖ (pending)
