MK-2400-S1 Magn. Cont. Set1,Al,6/1m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54536-F104-A100
  • 4025515478591
Product information "MK-2400-S1 Magn. Cont. Set1,Al,6/1m"

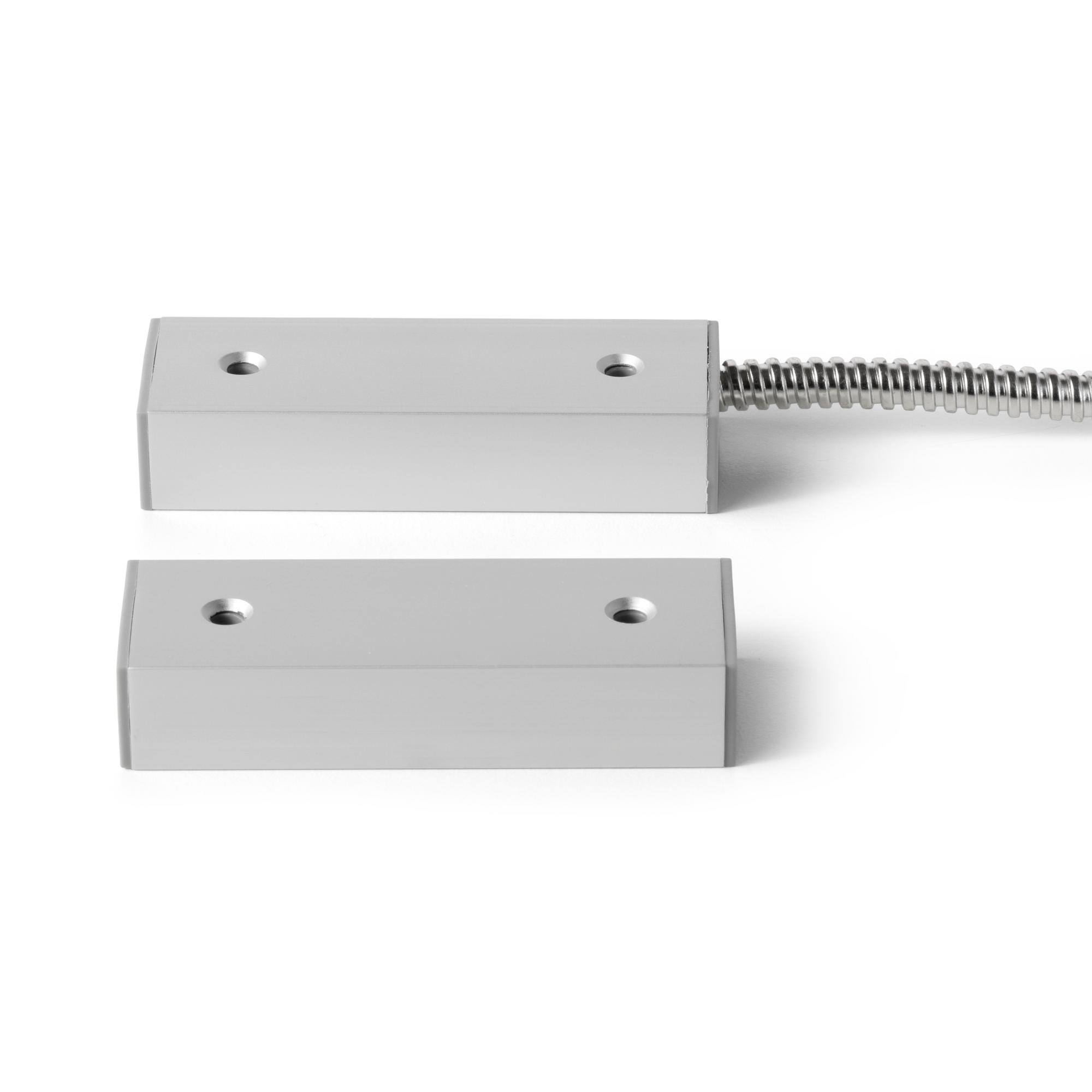

Surface mount magnetic contact for industrial areas. Suitable for roller shutter control. Magnetic contact and Magnet must be mounted in a parallel position. The cable is protected by a 1 m metal tube. Secondary package: 20 Units
Gross weight (KG) 0.216
Purchase unit PCE
EAN/UPC-Code: 4025515478591
Minimum order 1
Net weight 0.205
Material code V54536-F104-A100
Statistical code 85311030
Country of origin DE
Approval: VdS Klasse B EN 50131-2-6, Grade 2 SBSC, Larmklass 1/2
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Environmental class: III
Housing protection: IP67
Cable length: 6 m
Dimensions (W x H x D): 73 x 26 x 15 (mm)
