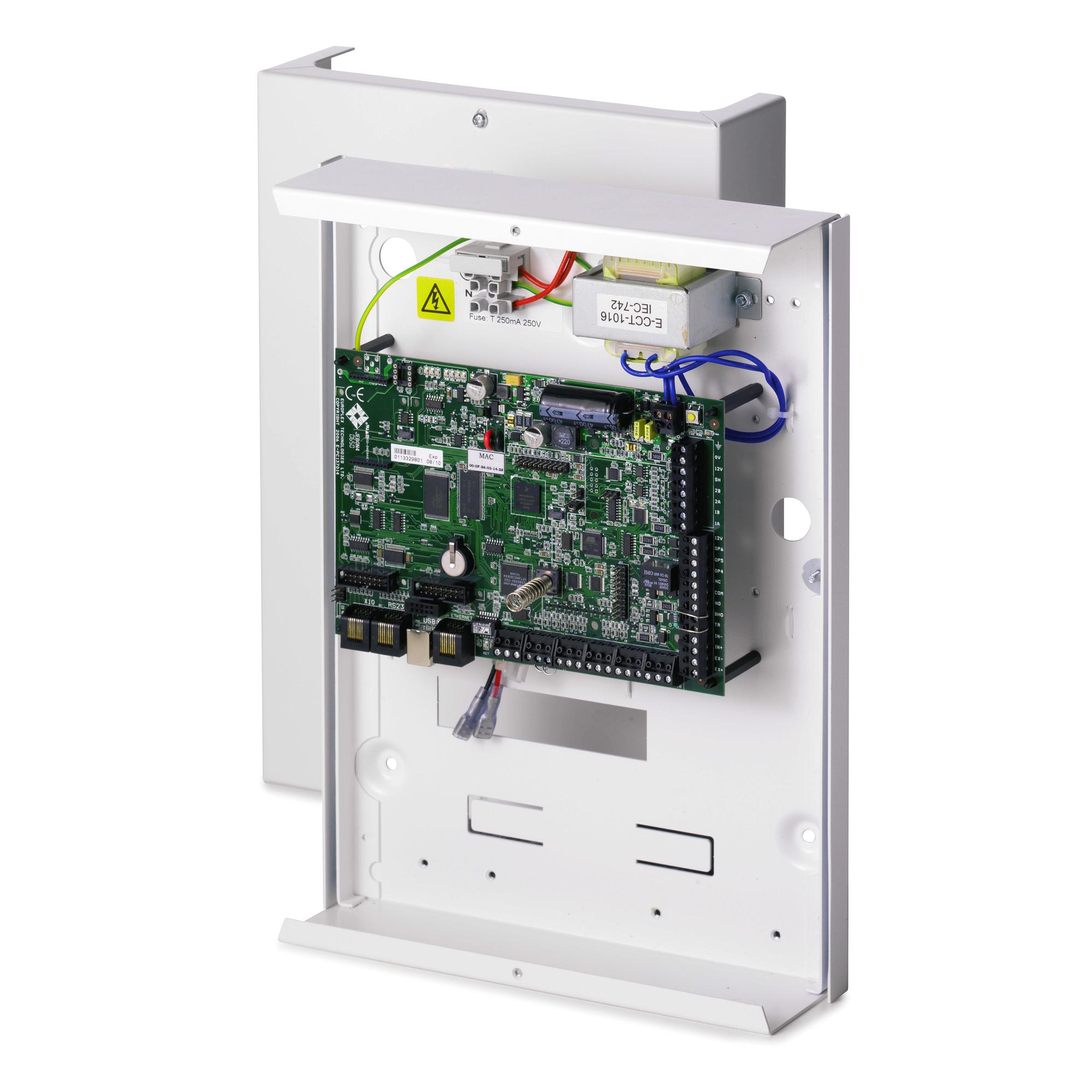

SPC4320.320-L1 Intrusion CP,G2

SPC4320.320-L1 Intrusion CP,G2
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54541-C109-B100
  • EAN/UPC-Code: 4025515470762
Description Certificates Import & Export Resources Technical data Documentation Software Useful Links
Description
Close menu
Product information "SPC4320.320-L1 Intrusion CP,G2"
The SPC4320.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 32 zones (8 on-board), 30 outputs (6 on-board), 4 system keypads, 4 doors, 4 verification zones. The controller provides 1 X-BUS ports (1 stub), 4 areas, 100 users with different access levels, memory for 1’000 intrusion and 1'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with 2-way wireless receivers and supports up to 32 Intrunet wireless detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.
Certificates
Close menu
Import & Export
Gross weight (KG) 5.16
Purchase unit PCE
EAN/UPC-Code: 4025515470762
Minimum order 1
ECCN N
Statistical code 85311030
Country of origin PH
Net weight 4.400
Material code V54541-C109-B100
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Max. number of hardwired zones: 32
Output voltage: 13-14 VDC in normal conditions (mains powered and fully charged battery)
Operating temperature: 0 ~ +40 °C
Power output: Max. 750 mA bei 12 VDC
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)
Tamper contact: Front spring tamper, 2 auxiliary tamper contact inputs
Weight: 4.500 kg
Approval: EN50131-1 / EN50131-3 / EN50131-6, Grade 2, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2
Remote controls: Up to 32
Max. number of wireless zones: 32 (take away wired zones)
Operating current: Max. 190 mA at 12 VDC
Door capacity: Max. 4 entry doors or 2 entry/exit doors
Verification: 4 verification zones with max. 4 IP-cameras and 4 audio devices.
Interfaces: 1 X-BUS (1 spur), 1 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)
IP-Communication: Yes
Language: Multi-language support (en + 4 imported language files).Available language files: de, en, es, fr, it, nl, sv.
Firmware: 3.8.5
Dimensions (W x H x D): 264 x 357 x 81 (mm)
Event memory: 1'000 access events
Quiescent current: Max. 170 mA at 12 VDC
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Colour: RAL 9003 (signal white)
Number of on-board zones: 8
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Number of on-board relays: 1 strobe (30 VDC / 1 A resistive switching current)
Housing: SPC4320.320: Metal housing (1.2 mm mild steel) SPC4320.220: Metal base (1.2 mm mild steel), Plastic Lid (Polycarbonate)
