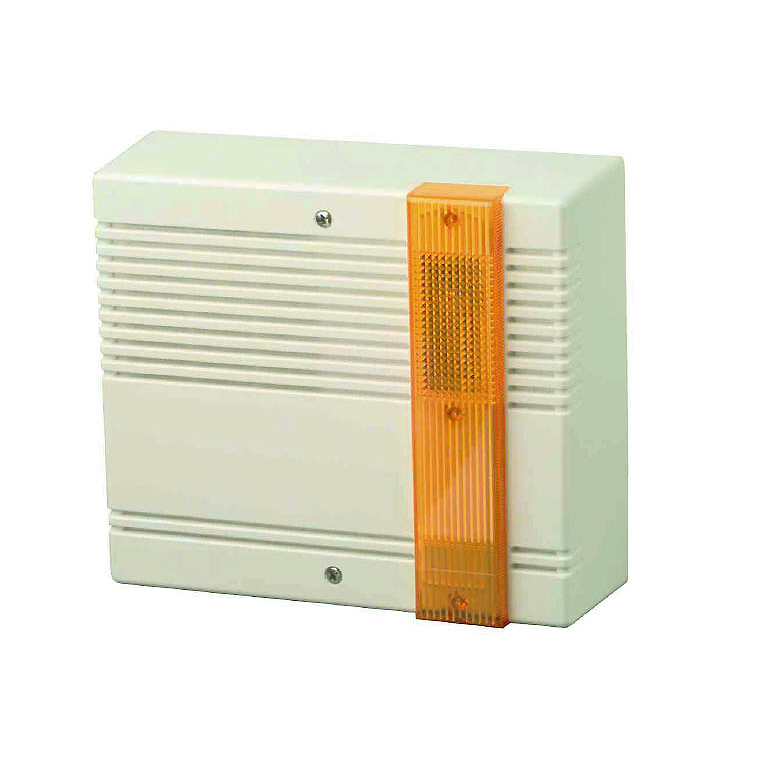

ECO560 Outdoor sounder/beacon

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: N54539-Z134-A100
EAN/UPC-Code: 7330082000203

Close menu

Product information "ECO560 Outdoor sounder/beacon"

An outdoor acoustic alarm device with a beacon, which is protected against reverse polarity for the internal battery. The device is activated & monitored by the main control panel. Can operate with or without an internal battery.

Close menu

Gross weight (KG)	2.29
Purchase unit	PCE
EAN/UPC-Code:	7330082000203
Minimum order	1
ECCN	N
Country of origin	IT
Material code	N54539-Z134-A100
Net weight	2.176
Statistical code	85311095

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Operating voltage:	9 ~ 13.8 VDC
Dimensions (L x W x H):	197 x 226 x 83 (mm)
Sound level:	106 dB at 1m
Quiescent current:	15mA Alarm siren & recharge 500mA +/-100mA Alarm - Siren from battery 1.3A +100/-300mA Alarm strobe - 90mA +/-10mA
Operating current:	Siren - 500mA +/- 100mA from control panel
Housing:	Enclosure - zinc plated steel, white Front plate - ABS, white Beacon - ABS, orange
Housing material:	Enclosure - zinc plated steel, white Front plate - ABS, white Beacon - ABS, orange
Protection rating:	IP44
Tamper protection:	Front cover and removal
Weight:	2,500 kg
Approval:	VSÖ: W 170227/04 E, Klasse WS
Battery:	12 V / 2 Ah
Frequency:	1474 Hz
Operation temperature:	-25 ~ +55°C
