SPCevo, Grade 2 Intrusion Panel

Preview: SPCevo, Grade 2 Intrusion Panel Preview: SPCevo, Grade 2 Intrusion Panel Preview: SPCevo, Grade 2 Intrusion Panel Preview: SPCevo, Grade 2 Intrusion Panel Preview: SPCevo, Grade 2 Intrusion Panel Preview: SPCevo, Grade 2 Intrusion Panel Preview: SPCevo, Grade 2 Intrusion Panel Preview: SPCevo, Grade 2 Intrusion Panel
SPCevo, Grade 2 Intrusion Panel
SPCevo, Grade 2 Intrusion Panel
SPCevo, Grade 2 Intrusion Panel
SPCevo, Grade 2 Intrusion Panel
SPCevo, Grade 2 Intrusion Panel
SPCevo, Grade 2 Intrusion Panel
SPCevo, Grade 2 Intrusion Panel
SPCevo, Grade 2 Intrusion Panel

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: SPC42
  • EAN/UPC-Code: 7330082006809
Description Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCevo, Grade 2 Intrusion Panel"

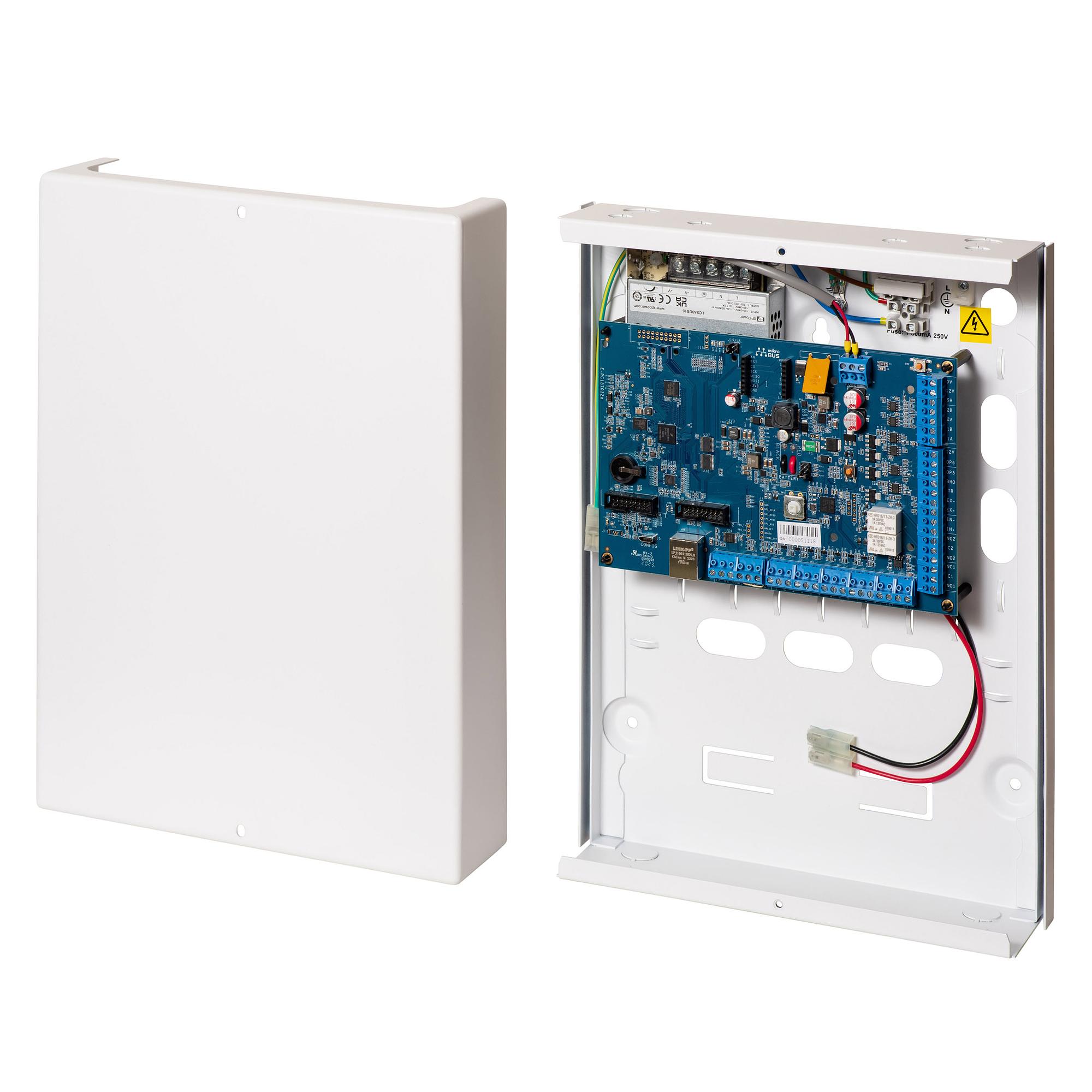

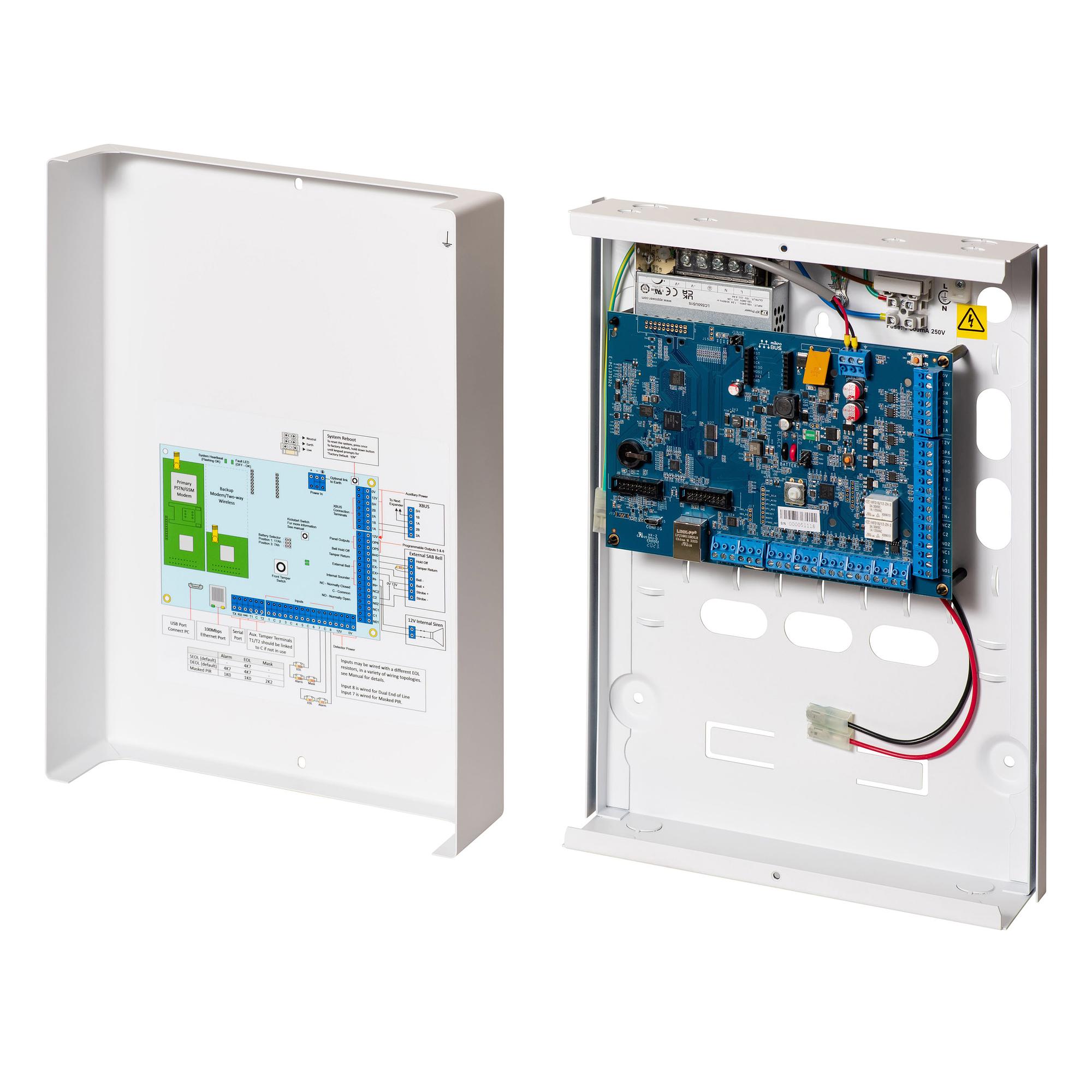

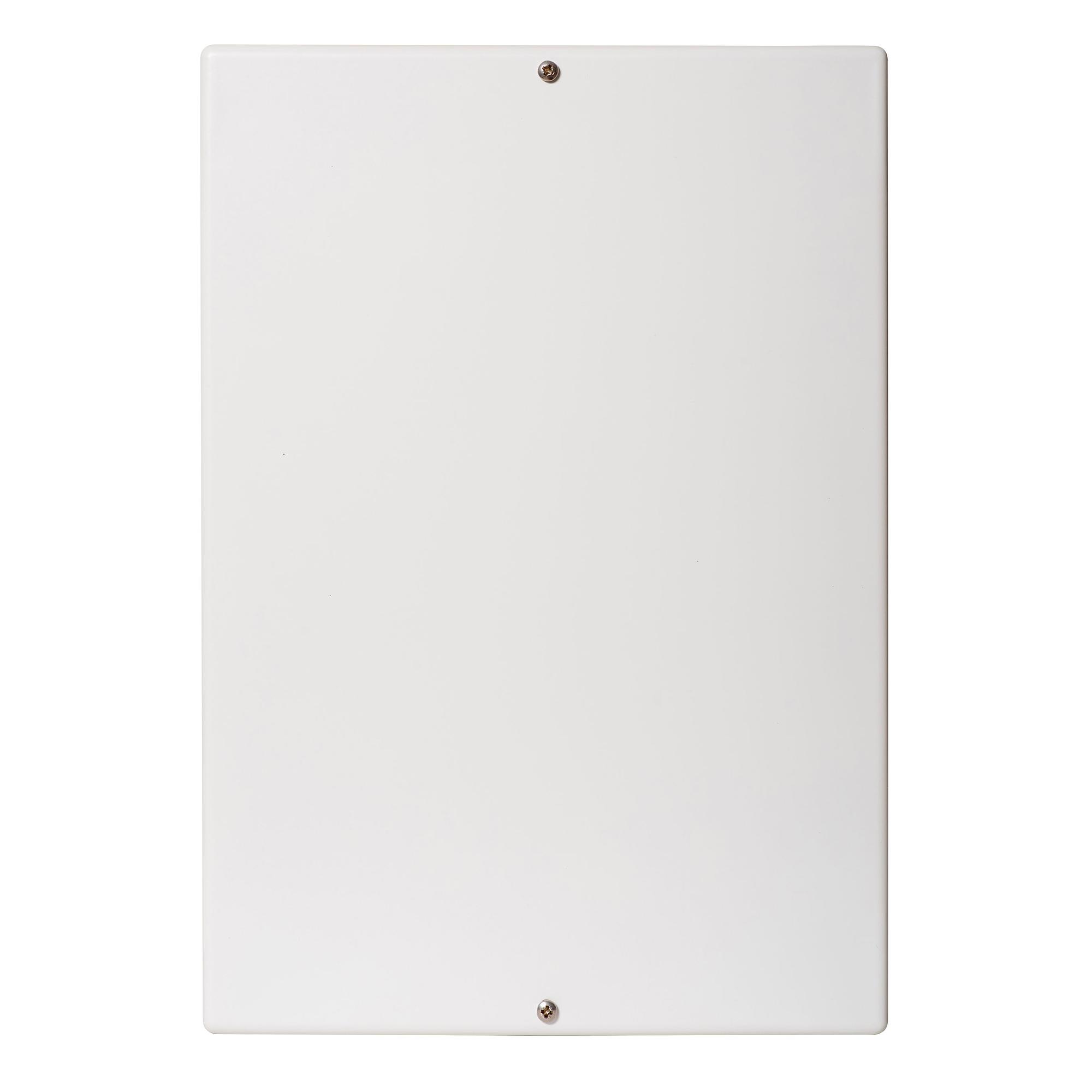

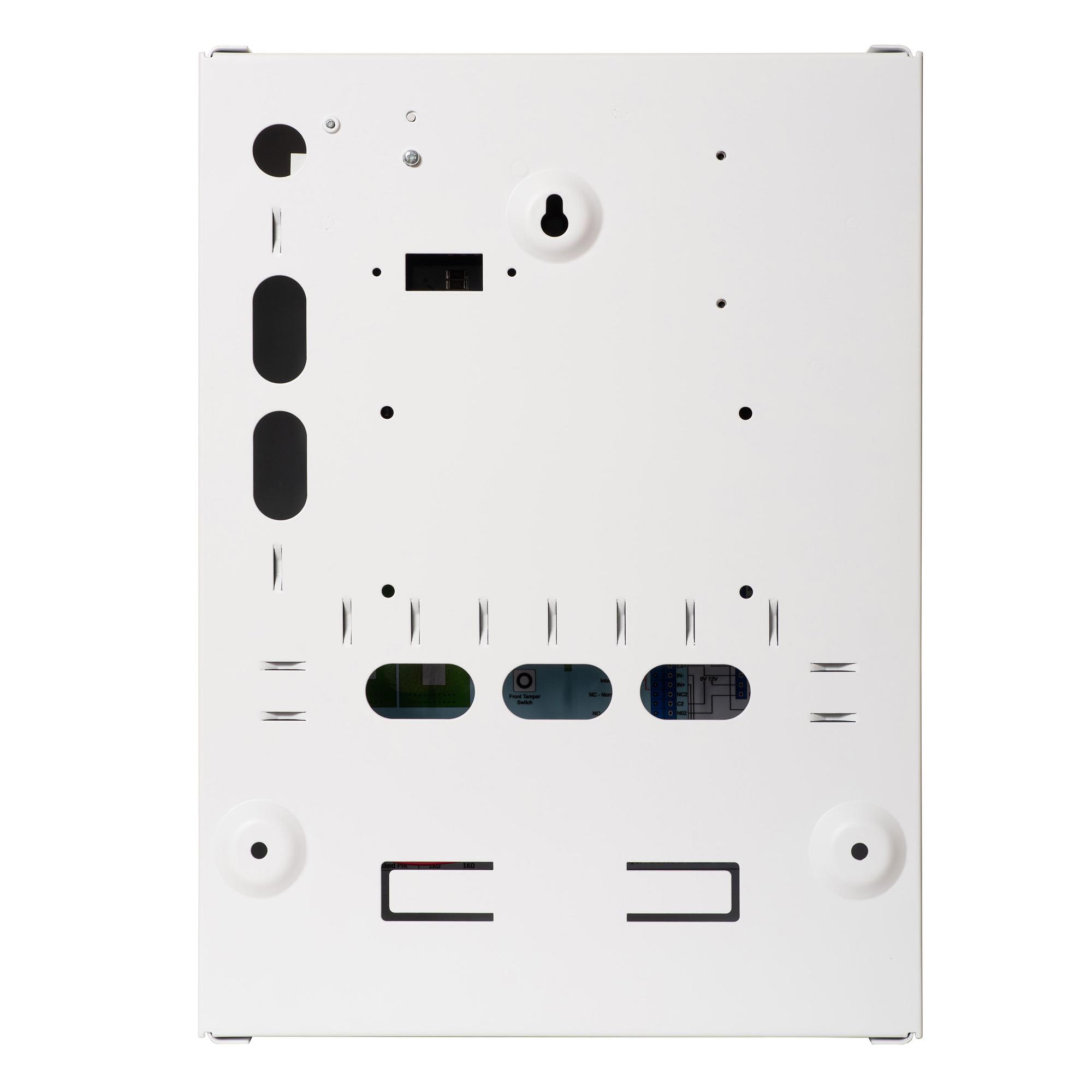

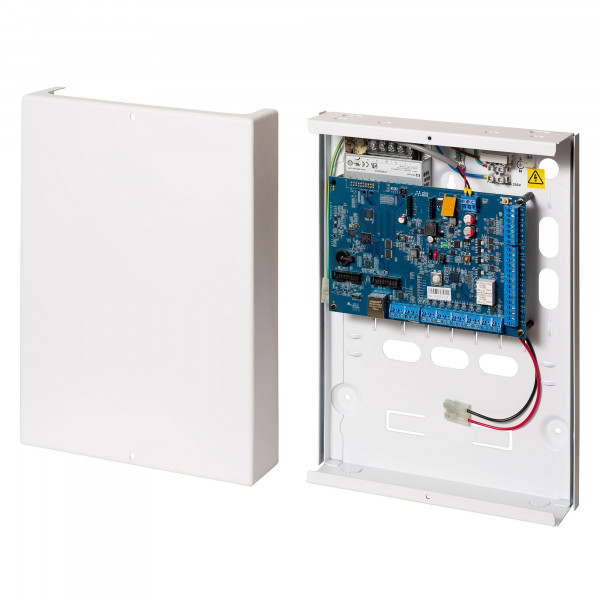

The SPC42 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 32 zones (8 on-board), 30 outputs (6 on-board), 4 system keypads, 4 doors, 4 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 4 areas, 100 users with different access levels, memory for 1’000 intrusion and 1'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with TwoWay wireless receivers and supports up to 32 wireless detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.
Import & Export
Gross weight (KG) 4.5
Purchase unit PCE
EAN/UPC-Code: 7330082006809
Minimum order 1
Statistical code 85311030
Material code SPC42
ECCN EAR99
Net weight 4.400
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Documentation
Close menu
Software
Close menu
