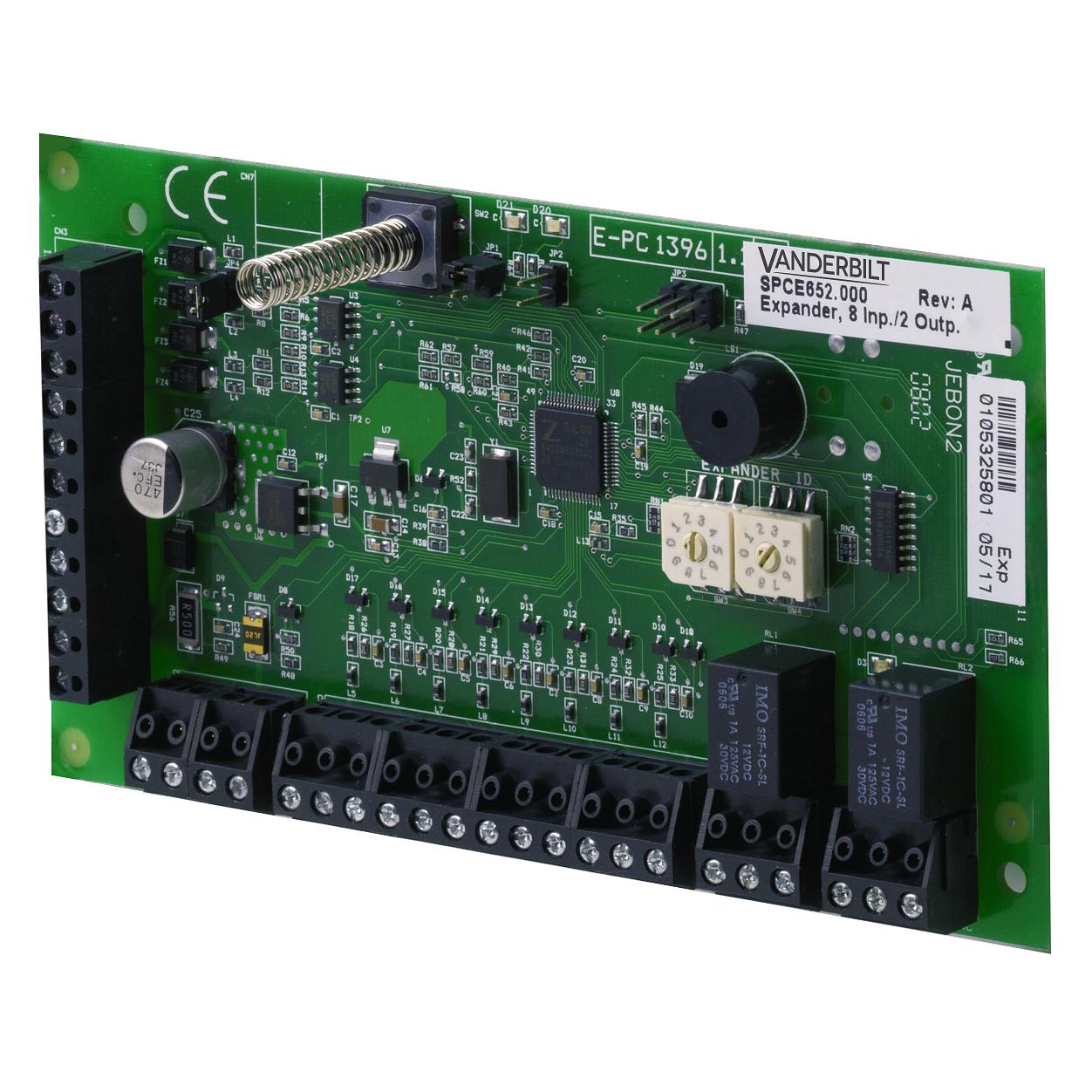

SPCE652.000 Expander board 8 In / 2 Out
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54542-F106-A200
- EAN/UPC-Code: 4025515479222
Product information "SPCE652.000 Expander board 8 In / 2 Out"
The SPCE652.000 pcb only expander extends the acre Intrusion system via X-BUS with 8 wired zones and 2 fully programmable relay
outputs. The
zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be
configured for
different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals
allowing the
greatest flexibility. The expander features an X-BUS status LED and on-board buzzer for easy device identification
and extensive
self-diagnostic capabilities.
- Certificate (CE) - Issued by Vanderbilt, on 12/10/2018
- Certificate - Issued by INCERT, on 22/06/2022
- Certificate - Issued by VdS, on 10/06/2021
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VSÖ, on 13/09/2021
- Certificate - Issued by ANPI, on 19/04/2022
- Certificate - Issued by INCERT, on 01/12/2022
- Certificate - Issued by Not defined, on 13/01/2023
- Certificate - Issued by VdS, on 01/12/2022
- Certificate - Issued by VSÖ, on 24/04/2023
Weight: | 0.1000 kg |
Mounting: | In SPC G2 and G3 cabinets or SPC expander housings |
Tamper contact: | Front spring tamper, back tamper - provided in kit bag |
Quiescent current: | Max. 40 mA at 12 VDC |
Operating current: | Max. 80 mA at 12 VDC (all relays activated) |
Interfaces: | X-BUS (in, out, branch) |
EOL resistor: | Dual 4k7 (default), other resistor combinations configurable |
Number of on-board zones: | 8 |
Operating voltage: | 9.5 ~ 14 VDC |
Operating temperature: | -10 ~ +50 °C |
Dimensions (W x H x D): | 150 x 82 x 20 mm (PCB) |
