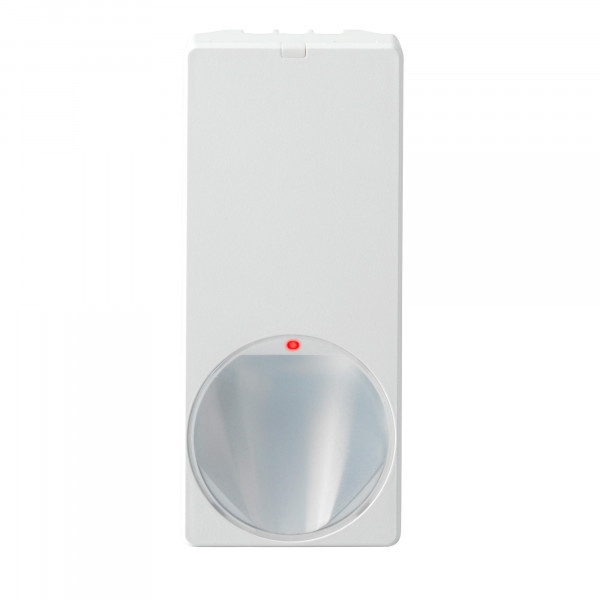

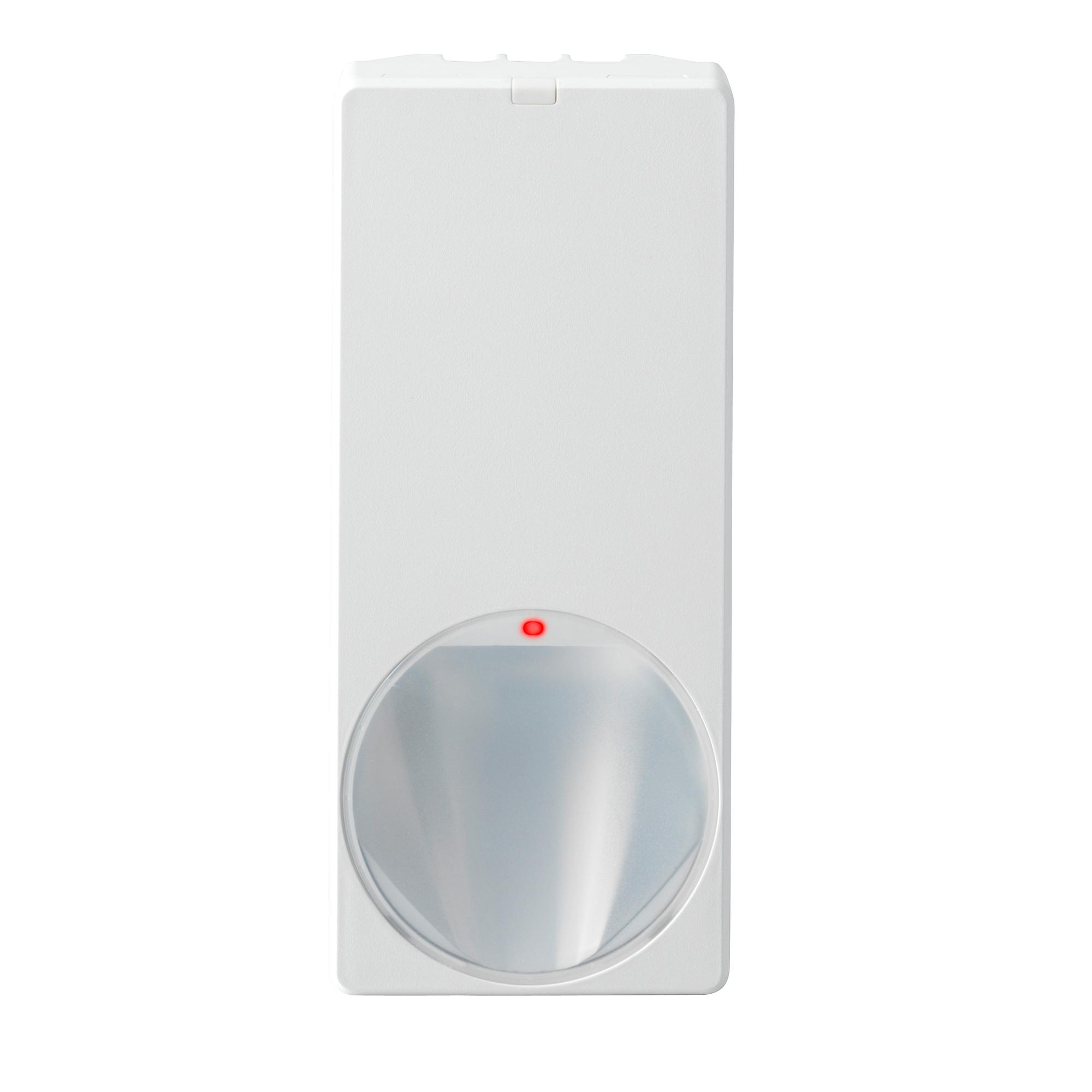

PDM-I18T PIR AM detector
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54530-F107-A100
- EAN/UPC-Code: 4025515470397
Product information "PDM-I18T PIR AM detector"
MAGIC motion detector PDM-I18T is impressive with its modern and elegant design. Its style is suitable for all installation
situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and
the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto
Walktest and new End-of-Line concept (EoL).
- Certificate (CE) - Issued by Vanderbilt, on 14/05/2018
- Certificate - Issued by CNPP, on 28/10/2019
- Certificate - Issued by IMQ, on 03/06/2014
- Certificate - Issued by INCERT, on 21/06/2022
- Certificate - Issued by SBSC, on 23/01/2020
- Certificate - Issued by SBSC, on 23/01/2020
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 26/03/2021
- Certificate - Issued by VdS, on 26/03/2021
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VSÖ, on 26/03/2021
- Certificate - Issued by VSÖ, on 26/03/2021
- Certificate (CE) - Issued by Vanderbilt, on 02/07/2022
- Certificate - Issued by ANPI, on 09/06/2022
- Certificate - Issued by CNPP, on 27/10/2022
- Certificate - Issued by VdS, on 07/11/2019
Air humidity (EN 60721): | < 85% RH, non-condensing |
Supply voltage: | 9 ... 16VDC (12V nom.) |
Outputs: | 30VDC / 100mA, NC |
Walk test input: | LOW ≤ 1.5V / HIGH ≥ 3.5V |
Set/unset input: | LOW ≤ 1.5V / HIGH ≥ 3.5V |
EOL resistor: | RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW |
Operating temperature: | -10°C …+55°C |
Pet immunity: | no |
Detection characteristics / range: | Volumetric / 18m |
Weight: | 0.115kg |
Approval: | EN50131-2-2 Grade 3 VdS Class C |
Current consumption: | 3.9mA (rms) 6.6mA (max. peak) |
Dimensions (W x H x D): | 64 x 147 x 35 (mm) |
Walking speed: | 0.1 ~ 4m/s |
Colour: | RAL9003 |
Housing protection (EN 60529): | IP41 / IK02 |
Sensitivity evaluation mode: | 4 settings |
Optical system: | MAGIC mirror |
Storage temperature: | -20° ~ +60°C |
- Datasheet - (Dutch) - V54530-F107-A100_PDM-I18T_023_01_nl
- Datasheet - (English) - V54530-F107-A100_PDM-I18T_023_01_en
- Datasheet - (French) - V54530-F107-A100_PDM-I18T_023_01_fr
- Datasheet - (German) - V54530-F107-A100_PDM-I18T_023_de
- Datasheet - (Italian) - V54530-F107-A100_PDM-I18T_023_01_it
- Datasheet - (Spanish) - V54530-F107-A100_PDM-I18T_023_01_ES
- Installation Manual - (Multilingual) - V54530-F107-A100_PDM-I18T_220_01
- Product Support Guide - (French) - Cablage PDM sans résistance
- Product Support Guide - (English) - PDM-IXx12/18T - Maintenance Recommendations
