AGB800-AM Acoustic Glass Break G3

AGB800-AM Acoustic Glass Break G3
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54535-Z129-A100
  • EAN/UPC-Code: 7330082004027
Description Certificates Import & Export Resources Technical data Documentation Useful Links
Description
Close menu

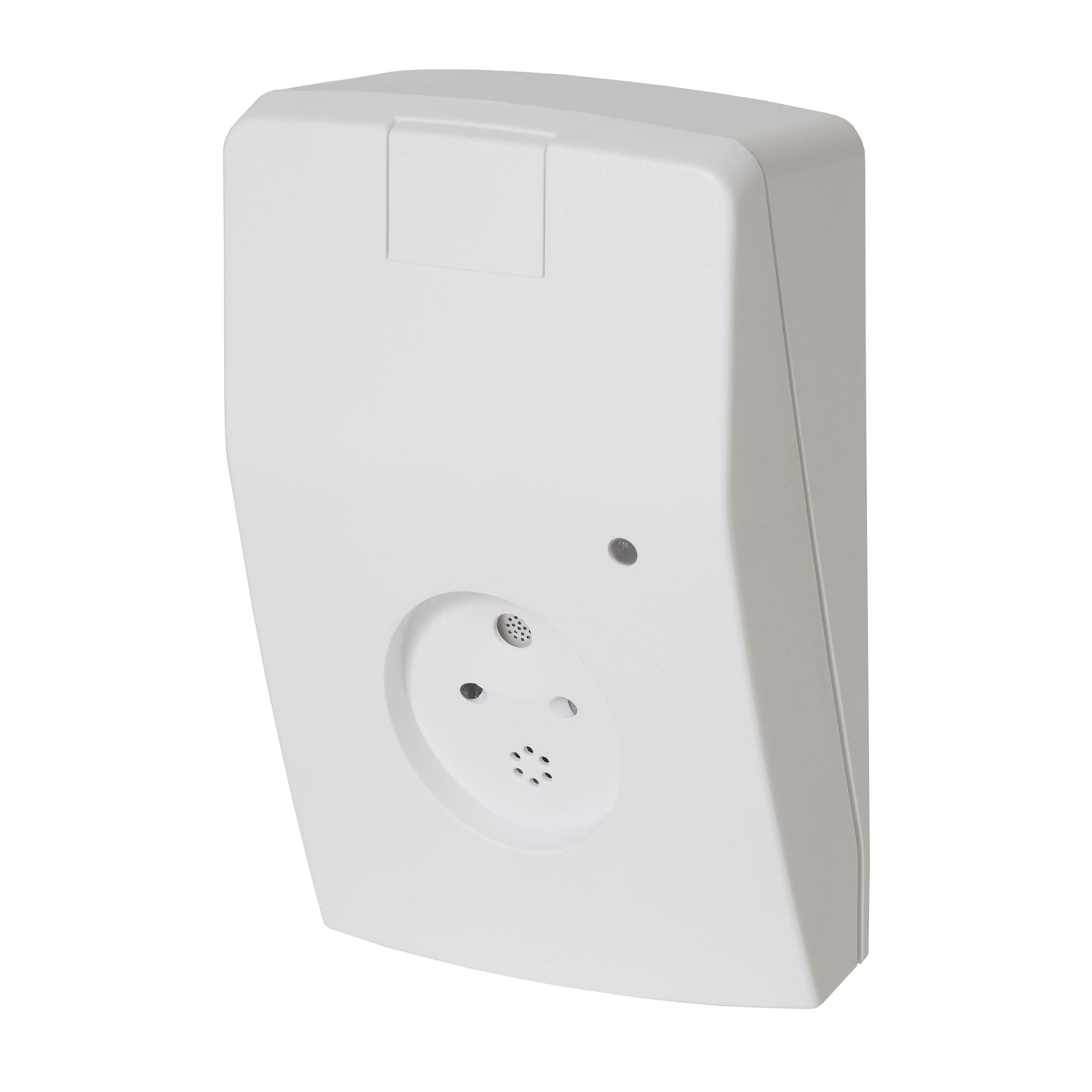

Product information "AGB800-AM Acoustic Glass Break G3"
The AGB800-AM is a modern acoustic glass break detector, complete with anti-mask detection giving an alarm when glass is broken due to attempted intrusion through doors, windows and glazed walls. The detector is based upon the latest technology and has internal filters to avoid unwanted alarms. The DRC Digital Room Compensation feature enables the detector to distinguish between glass breaking and general background noise.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.124
Purchase unit PCE
EAN/UPC-Code: 7330082004027
Minimum order 1
Statistical code 85311030
ECCN EAR99
Material code V54535-Z129-A100
Net weight 0.105
Country of origin PL
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Environmental class: I
Operating temperature: -25 ~ +40ºC
Dimensions (W x H x D): 69 x 110 x 39 (mm)
Quiescent current: 12mA @ 12VDC 8mA @ 24VDC
Current consumption, quiescent: 12mA @ 12VDC 8mA @ 24VDC
Alarm outputs: 50mA @ 50VDC
Approval: EN50131-2-7-1 Grade 3 VdS Class B G117506
Current consumption: Alarm - 12mA @ 12VDC Alarm - 8mA @ 24VDC
Tamper switch: 50mA @ 50VDC
Housing material: ABS plastic, white
Weight: 0.126Kg
Tamper contact: 50mA @ 50VDC
Supply voltage: 7 ~ 30VDC
