MK-2400-S2 Magn. Cont.,Set2,Al,6/0.5m

Preview: MK-2400-S2 Magn. Cont.,Set2,Al,6/0.5m Preview: MK-2400-S2 Magn. Cont.,Set2,Al,6/0.5m
MK-2400-S2 Magn. Cont.,Set2,Al,6/0.5m
MK-2400-S2 Magn. Cont.,Set2,Al,6/0.5m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54536-F104-A200
  • EAN/UPC-Code: 4025515478607
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu

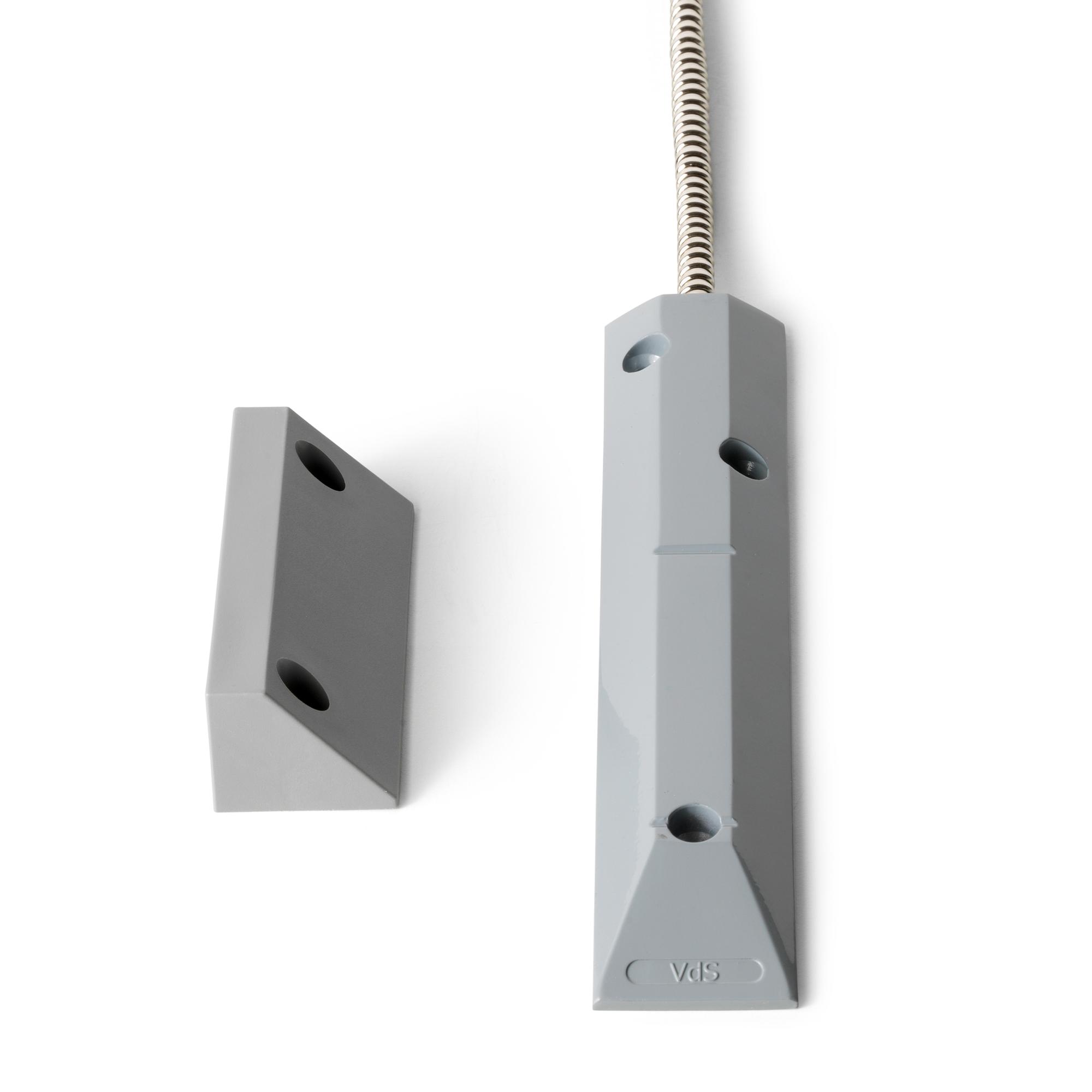

Product information "MK-2400-S2 Magn. Cont.,Set2,Al,6/0.5m"
The mounting is mostly on rolling, sliding, tilting, etc. gates. Through the protection painted Aluminum housing the magnetic contact is resistant to sea water and is therefore also suitable for shipbuilding. Due to the weather-resistance and mechanically stable design of the contact housing, the circuit is largely protected from damage when driving with rubber-tired vehicles. The cable is protected by a 0.5m metal tube. Secondary package: 6 Units
Certificates
Close menu
Import & Export
Gross weight (KG) 0.44
Purchase unit PCE
EAN/UPC-Code: 4025515478607
Minimum order 1
ECCN N
Net weight 0.418
Material code V54536-F104-A200
Statistical code 85311030
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Approval: VdS Klasse B EN 50131-2-6, Grade 2 SBSC, Larmklass 1/2
Cable length: 6 m (metal tube 0.5 m)
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Environmental class: III
Housing protection: IP67
Power supply: Max. 40 VDC
