MK-2500-2 Magn. Cont.,2m,G2

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54536-F107-A100
  • 4025515478638

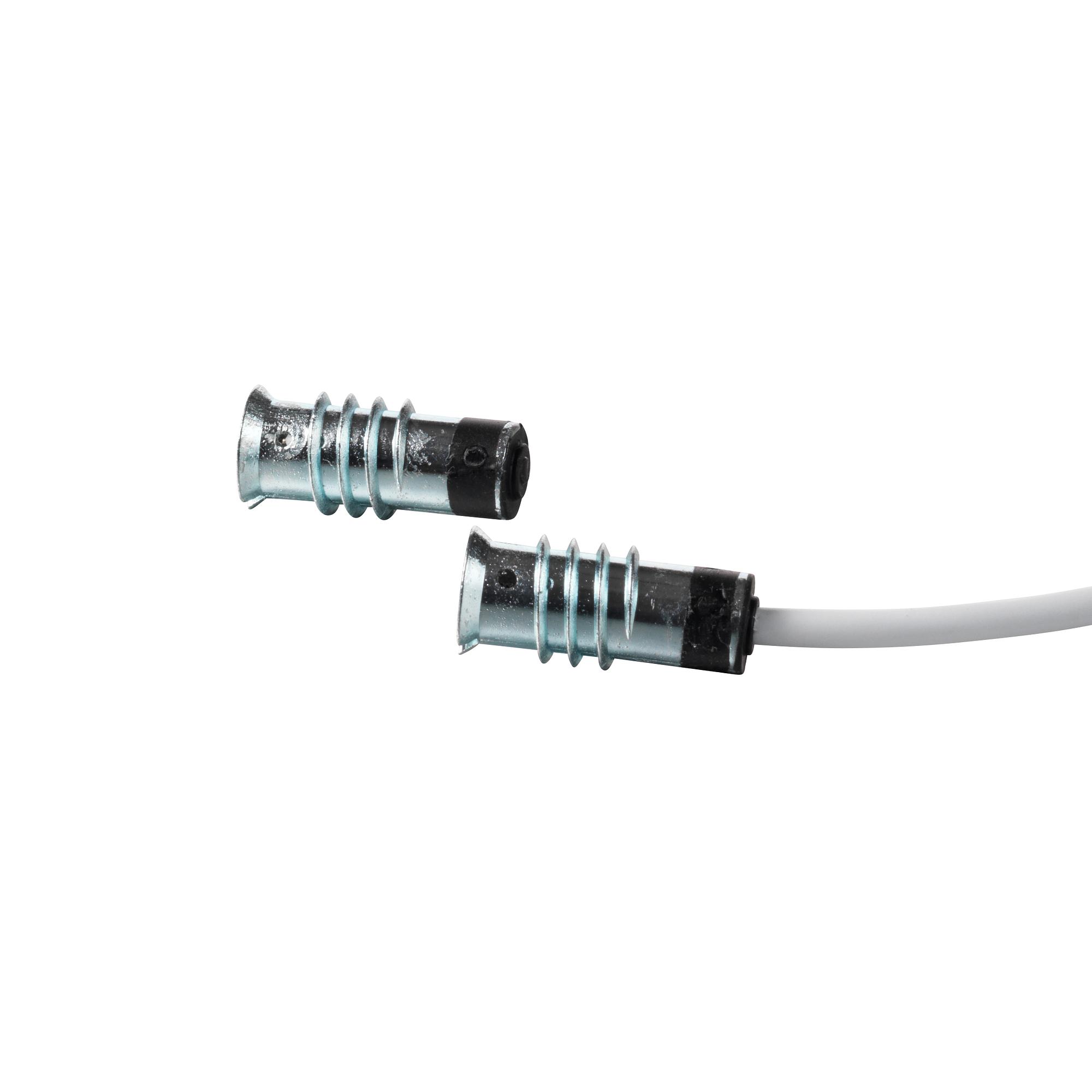

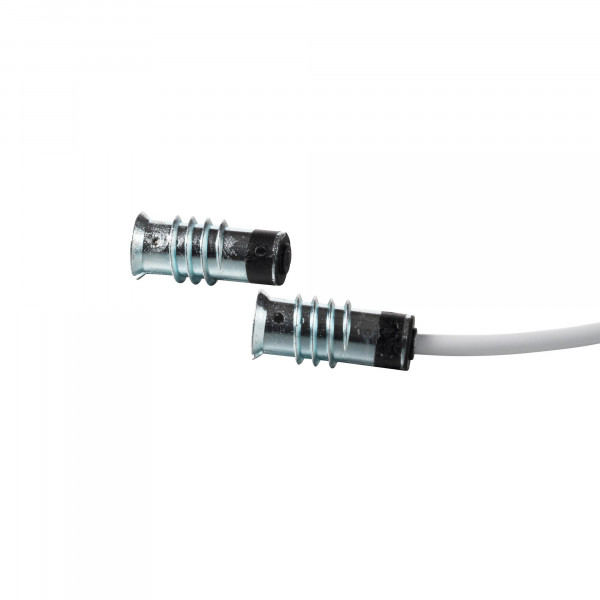

Product information "MK-2500-2 Magn. Cont.,2m,G2"
The MK-2000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted in window and door frames of non-magnetic materials. Secondary Packaging: 50 Units
Gross weight (KG) 0.05
Purchase unit PCE
EAN/UPC-Code: 4025515478638
Minimum order 1
ECCN N
Material code V54536-F107-A100
Statistical code 85311030
Net weight 0.048
Country of origin DE
Approval: VdS Klasse B EN 50131-2-6, Grade 2 SBSC Larmklass 1/2
Cable length: 2 m
Contact rating: Max. 10 W
Operating temperature: -40 ~ +70 °C
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Environmental class: III
Housing protection: IP67
Weight: 0.048 kg
