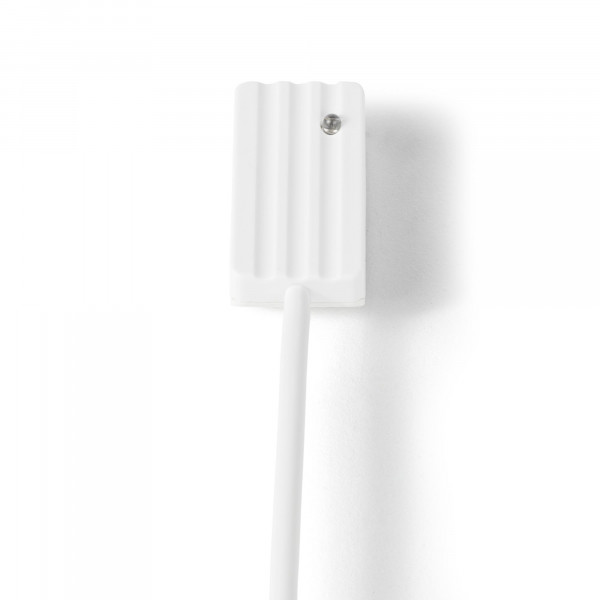

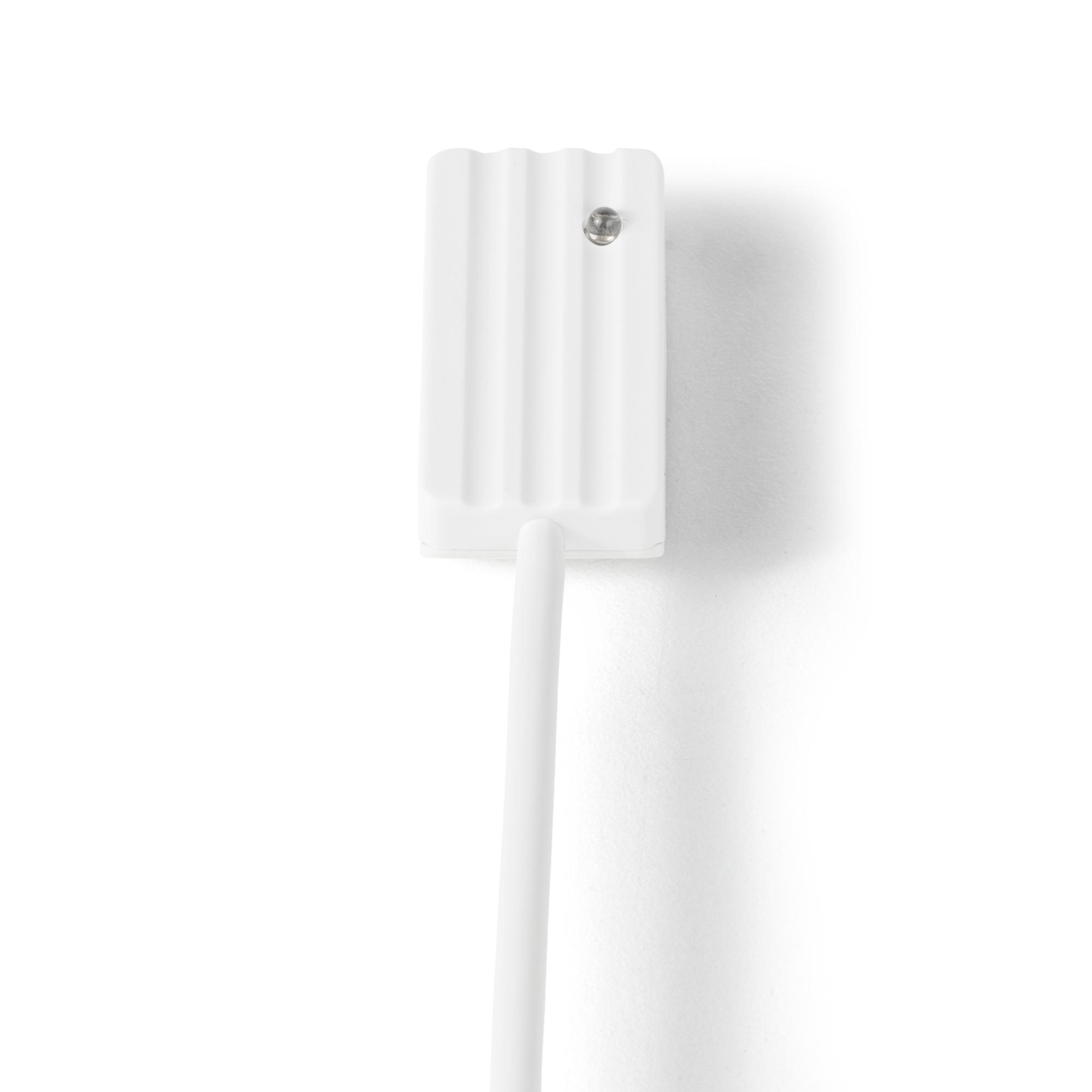

GB-5300-6 Glassbreak detector,6m

Preview: GB-5300-6 Glassbreak detector,6m Preview: GB-5300-6 Glassbreak detector,6m
GB-5300-6 Glassbreak detector,6m
GB-5300-6 Glassbreak detector,6m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54535-F102-A200
  • EAN/UPC-Code: 4025515478461
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "GB-5300-6 Glassbreak detector,6m"
The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations. The detectors can be used in combination with the interface unit, GB-5000-IN, in bigger installations where you have to consider power consumption. It is possible to connect up to 20 detectors to one interface unit. Secondary Packaging: 25 Units
Certificates
Close menu
Import & Export
Gross weight (KG) 0.17
Purchase unit PCE
EAN/UPC-Code: 4025515478461
Minimum order 1
ECCN N
Material code V54535-F102-A200
Net weight 0.102
Statistical code 85311030
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Quiescent current: ˂1 µA (ca. 20 nA)
Reset voltage: Max. 1 V
Current consumption, quiescent: ˂1 µA (ca. 20 nA)
Supply voltage: 3 – 16 V DC
Approval: VdS Klasse B (pending) EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)
Environmental class: III
Housing protection: IP67
Housing material: S-B
Operating temperature: -25 ~ 70 °C
Cable length: 6 m
Current consumption: 4 mA (6 VDC)
