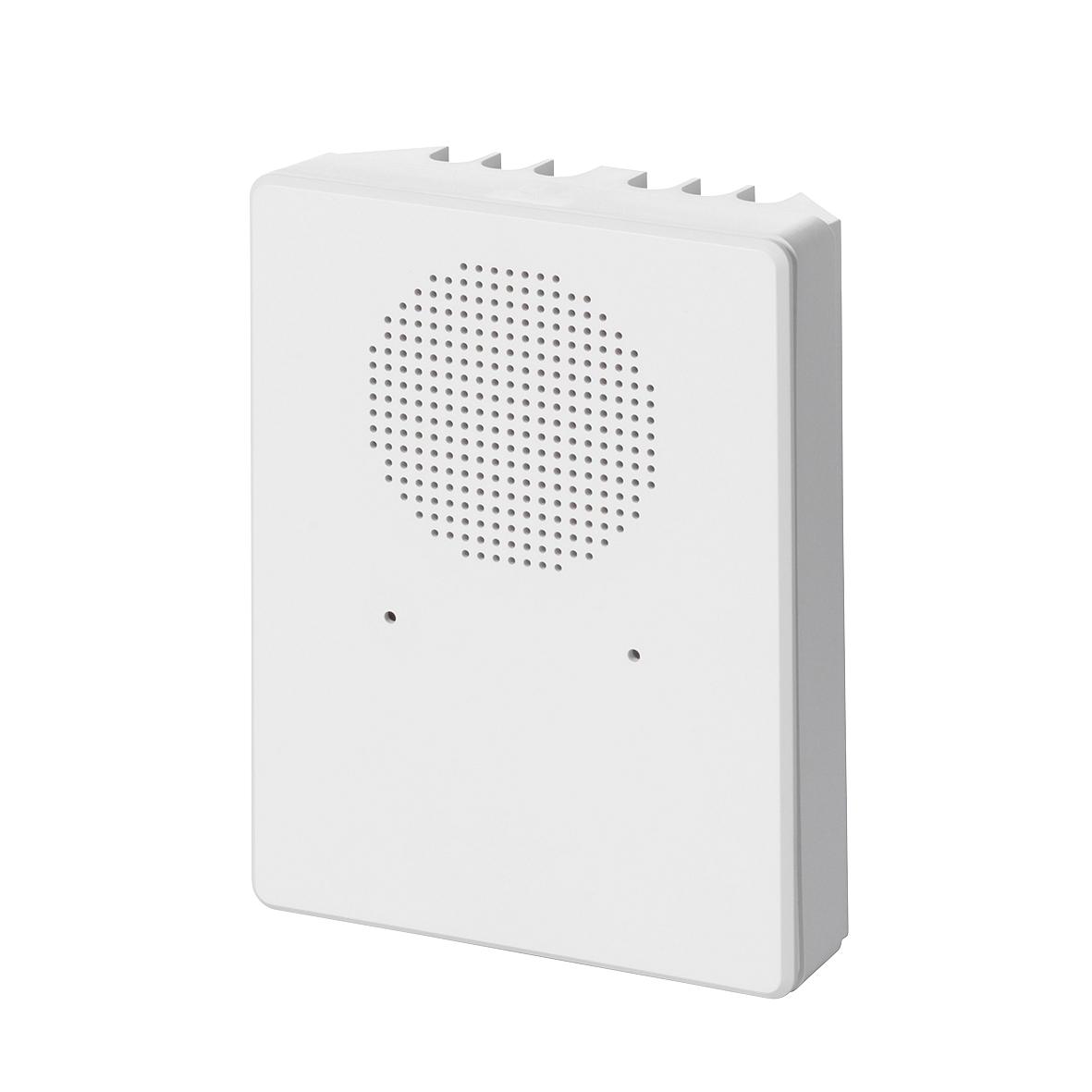

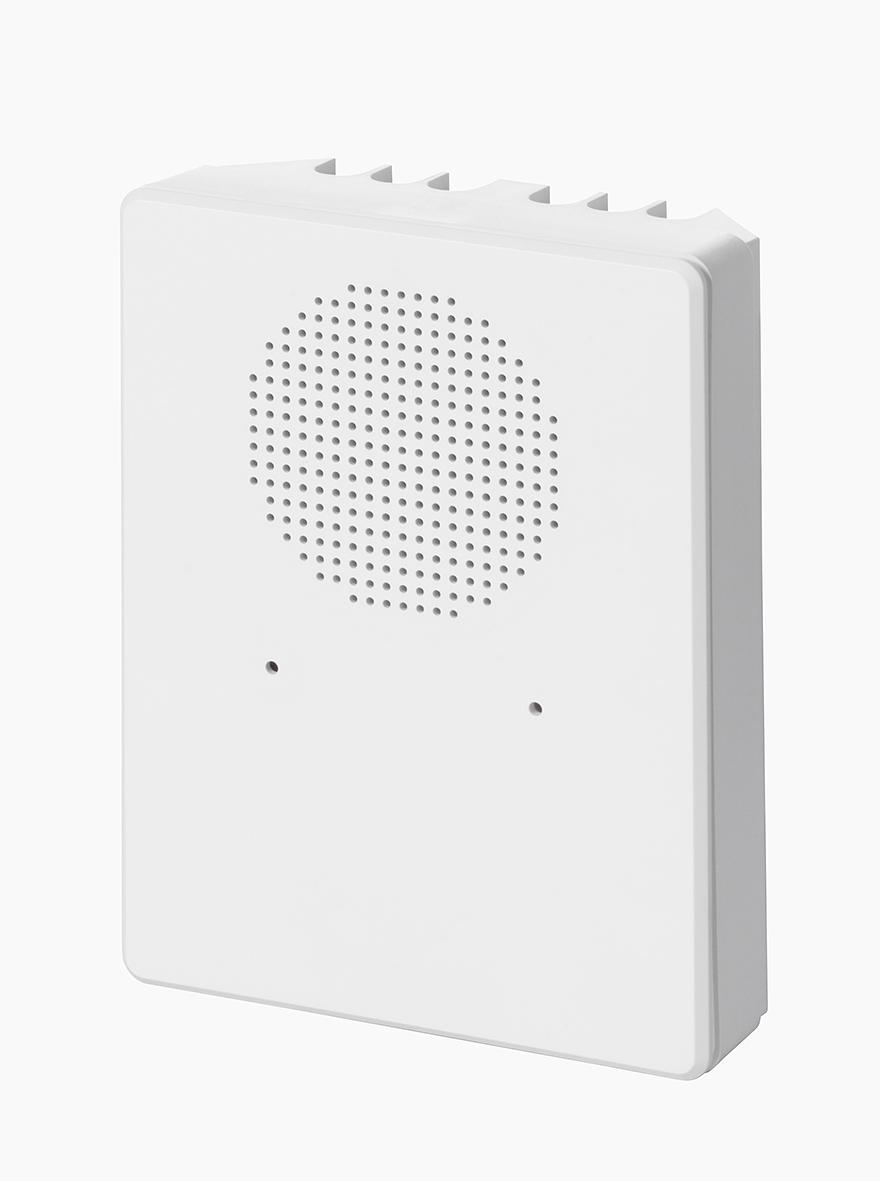

Product information "SPCV341.000 Audio Exp. 4 In/1 LineOut"

The SPCV341.000 Audio Expander extends the acre Intrusion system via X-BUS with an audio verification zone, 4 wired zones and 1 line output to drive an external audio pre-amplifier. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the acre Intrusion system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander.

Close menu

Gross weight (KG)	0.425
Purchase unit	PCE
EAN/UPC-Code:	4025515470892
Minimum order	1
Statistical code	85311030
ECCN	3A991
Material code	V54542-F109-B100
Net weight	0.404
Country of origin	RO

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Operating voltage:	9.5 ~ 14 VDC
Audio outputs:	1 line output (100 Ω / 0.775V RMS, suitable for connection to audio pre-amplifier).
Weight:	0.420 kg
Mounting:	Flat surface, wall-mounted or corner-mounted at 45 °
Quiescent current:	Max. 60 mA at 12 VDC (without satellites)
Operating current:	Max. 75 mA at 12 VDC (without satellites)
Tamper contact:	Front / back tamper switch
Interfaces:	X-BUS (in, out), Audio (A+, A-)
Audio:	Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators:	1 (red)
Number of on-board zones:	4
Housing:	Plastic housing (ABS)
Colour:	RAL 9003 (signal white)
Operating temperature:	-10 ~ +50 °C
Dimensions (W x H x D):	106 × 141 × 42 (mm)
