MK-2400-10 Magn. Cont.,10m,G2

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54536-F102-A300
EAN/UPC-Code: 4025515478553

Close menu

Product information "MK-2400-10 Magn. Cont.,10m,G2"

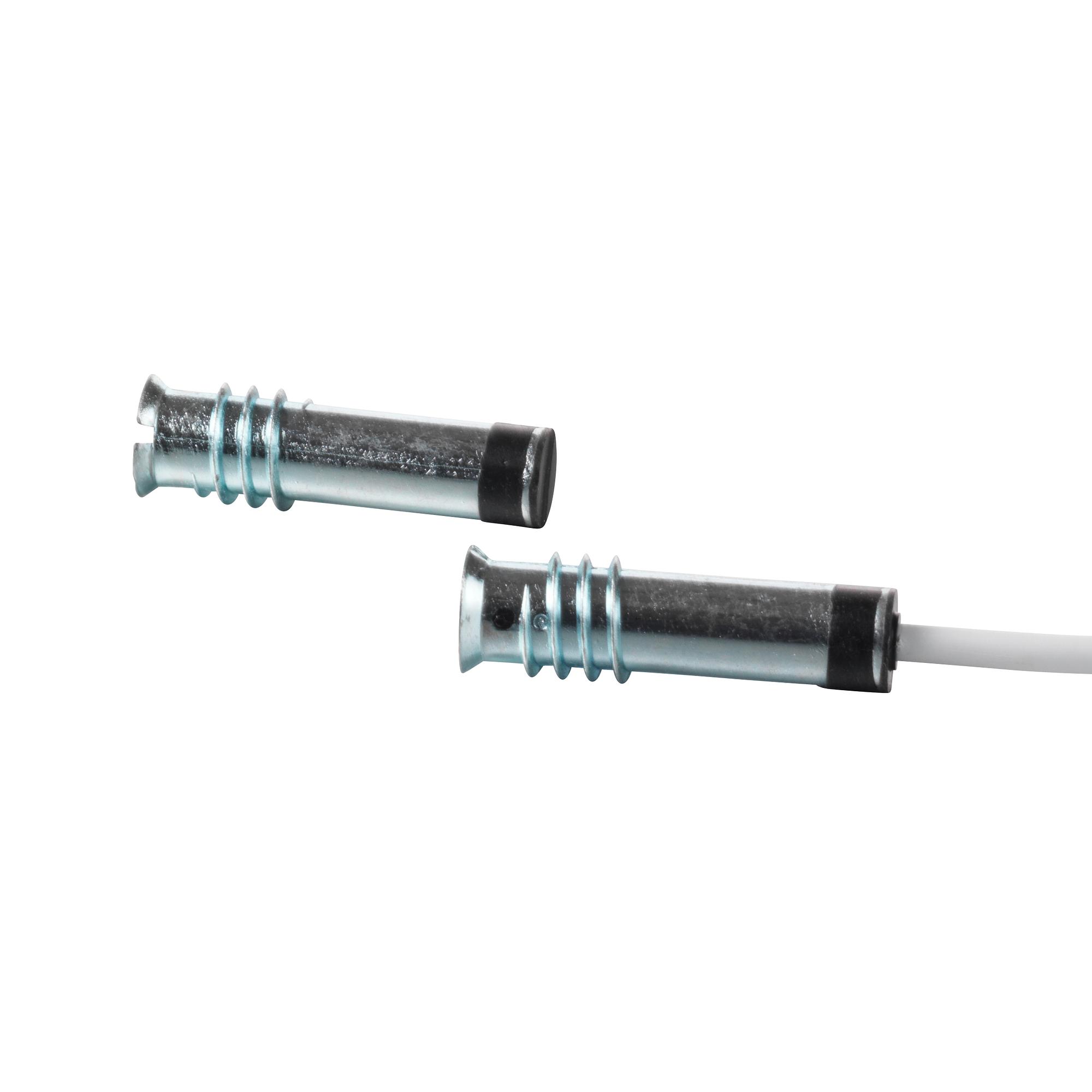

The MK-2000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted in window and door frames of non-magnetic materials. Secondary Packaging: 15 Units

Close menu

Gross weight (KG)	0.185
Purchase unit	PCE
EAN/UPC-Code:	4025515478553
Minimum order	1
ECCN	N
Net weight	0.176
Material code	V54536-F102-A300
Statistical code	85311030
Country of origin	DE

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Cable length:	10 m
Approval:	VdS Klasse B EN 50131-2-6, Grade 2 SBSC Larmklass 1/2
Contact rating:	Max. 10 W
Operating temperature:	-40 ~ +70 °C
Switching current:	Max. 500 mA
Switching voltage:	Max. 100 VDC
Environmental class:	III
Housing protection:	IP67
Operation temperature:	-40 ~ +70 °C
