ARS6311-RX Miro/CerPass Card Reader

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V24246-Z3900-A1
  • 4025515474500
Product information "ARS6311-RX Miro/CerPass Card Reader"

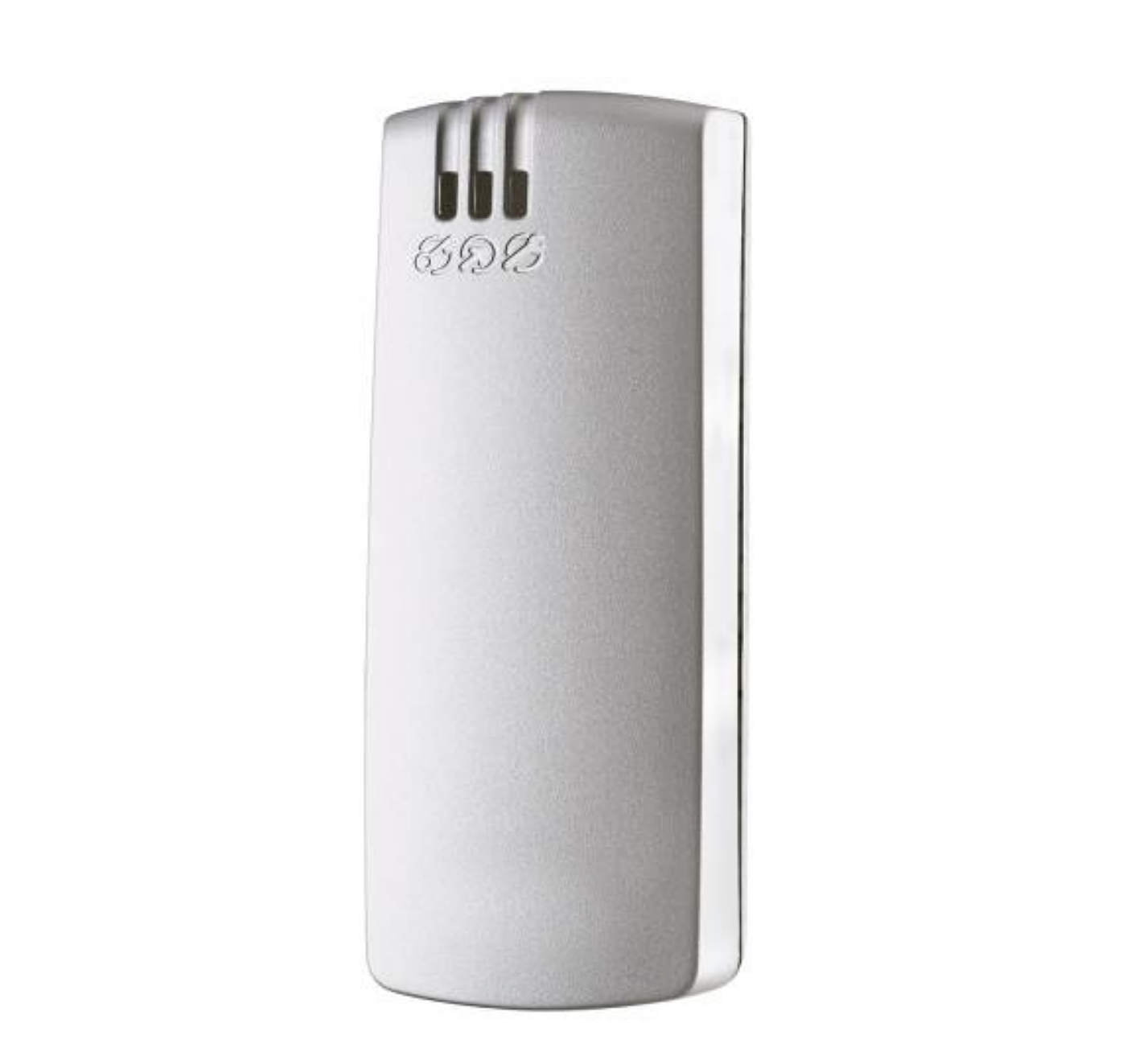

The ARS6311-RX is a compact and economical reader designed for use with all SiPass systems. In combination with the AC6311 I/O board, it can also be used in standalone mode.
Gross weight (KG) 0.32
Purchase unit PCE
EAN/UPC-Code: 4025515474500
Minimum order 1
Statistical code 84716070
Country of origin PL
Net weight 0.304
Material code V24246-Z3900-A1
Card compatibility: ABR5100-PR ABR5100-BL ABR5100-TG
Housing protection: IP65
Environment: Indoor & outdoor
Tamper switch: Yes
Tamper protection: Yes
Operating temperature: -25 ~ +60 °C
Colour: Silver (RAL9006)
Current consumption: 32 mA @ 12V DC
Keypad: No
Housing material: ABS plastic
Card read distance: 12 cm (approx.)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz), Vanderbilt Prox
Interface to controller: Clock&Data and Wiegand (26/34/42 bit)
Weight: 0.30kg
Dimensions (W x H x D): 40 x 100 x 25 (mm)
Operating voltage: 10 ~ 16 VDC
Housing protection (EN 60529): IP65
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Housing: ABS plastic
Operation temperature: -25°C ~ +60°C
