AC5200 SiPass integrated ACC-Lite

Preview: AC5200 SiPass integrated ACC-Lite Preview: AC5200 SiPass integrated ACC-Lite
AC5200 SiPass integrated ACC-Lite
AC5200 SiPass integrated ACC-Lite

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54507-C5-A1
  • EAN/UPC-Code: 4025515474005
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "AC5200 SiPass integrated ACC-Lite"

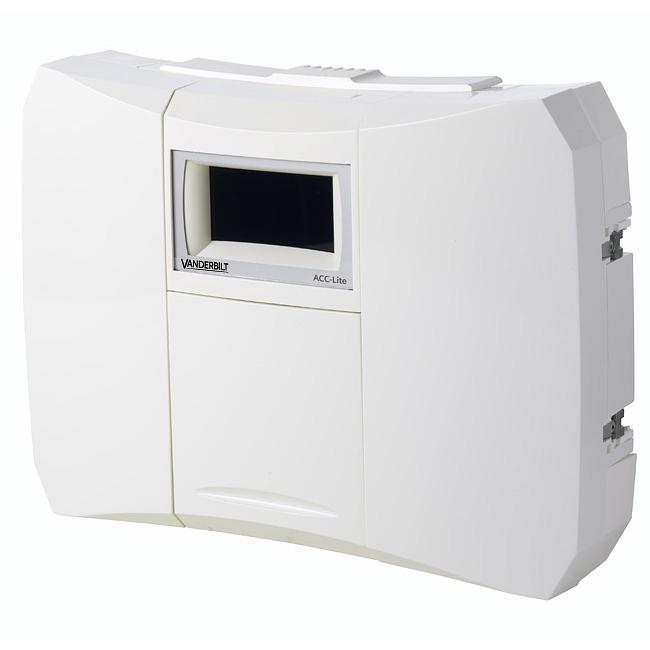

The AC5200 is a smaller version of Vanderbilt’ high-performance IP-based advanced central controller models (AC5100 and AC5102). It can manage up to 40‚000 cardholders. The ACC-Lite has been specially designed to provide a low-cost alternative for smaller or branch installations. It provides one field level network (FLN) channel which is capable of hosting up to 8 doors for access control, monitoring input devices or controlling output devices. Firmware can be easily downloaded or updated via TCP/IP connection without having to visit the controller cabinets. Communication with the host system occurs via a two-port Ethernet switch which provides 10/100Mb LAN connection. This makes it possible to “daisy chain” controllers. TCP/IP communication ensures the fastest possible transaction times between the host system and the field panels. In case of power failure the database on the ACC-Lite is protected in battery-backed memory. This maintains the integrity of the access control data and ensures that the ACC-Lite is back online as soon as power is restored.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.98
Purchase unit PCE
EAN/UPC-Code: 4025515474005
Minimum order 1
Country of origin PH
ECCN 5A992
Statistical code 84715000
Net weight 0.931
Material code V54507-C5-A1
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Housing: Plastic housing for wall mounting
Power consumption: 24 W
Door capacity: Eight
Card capacity: 40,000
LCD Display: Alphanumeric
Keypad: 4 x 4 matrix
Tamper switch: Integrated
Weight: 0.70 kg
Interface: Communication interfaces: RS232, RS485, TC/IP for LAN/WAN - RJ45: 2 x Points, 10/100 MB Ethernet (Switched) - RS485: FLN interface, two-wire, max. eight devices per FLN bus. - RS232 modem communications
Approval: CE, C-Tick
Interfaces: Interfacce di comunicazione: RS232, RS485, LAN/WAN TCP/IP - TCP/IP (RJ45): 2x punti, Ethernet 10/100 MB (Switched) - RS485: interfaccia FLN , due fili, max. 8 dispositivi. - RS232: comunicazione modem
Housing material: Contenitore in plastica per montaggio a parete
Operating temperature: 0 ~ +50 °C
Dimensions (W x H x D): 248 x 182 x 66 (mm)
Current consumption: 100 mA @24V DC 200 mA @12V DC
Environment: Indoor use only
Colour: White
Operating voltage: 8 ~ 40 VDC‚ 8 ~ 30 VAC
Documentation
