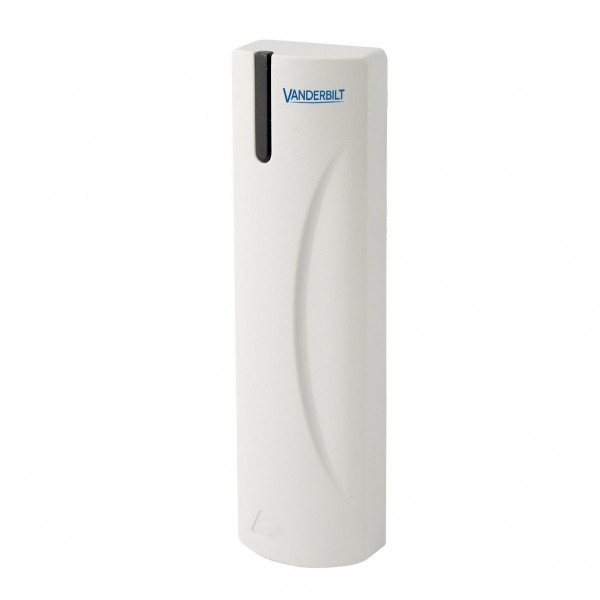

PR500-Cotag COTAG Mullion Reader

PR500-Cotag COTAG Mullion Reader
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V24246-F4706-A1
  • EAN/UPC-Code: 4025515473602
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "PR500-Cotag COTAG Mullion Reader"
The PR500-Cotag reads Vanderbilt unique Cotag cards and tags (both active and passive) which offer ultimate convenience and cost-efficiency. It has a reading range of up to 32 cm with an active card and 11 cm with a passive card. The PR500-Cotag has a slim and compact design and blends in well in many environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.13
Purchase unit PCE
EAN/UPC-Code: 4025515473602
Minimum order 1
Country of origin PH
Statistical code 84716070
Net weight 0.190
Material code V24246-F4706-A1
ECCN EAR99
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Tamper protection: No
Keypad: No
Tamper switch: No
Operating voltage: 10.6 to 32 VDC
Operating temperature: -30 to +50 °C
Environment: Indoor or outdoor use
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Operation temperature: -30°C to +50°C
Card compatibility: IB911‚ IB928‚ IB958‚ IB958M‚ IB981 & IB968
Housing protection (EN 60529): IP55
Weight: 0.11 kg
Housing material: ABS base with clip on ABS front cover
Housing: ABS base with clip on ABS front cover
Card read distance: Up to 32 cm with active card. Up to 10 cm with passive card.
Current consumption: 36 mA @ 12 VDC 36 mA @ 24 VDC
Dimensions (W x H x D): 40 x 140 x 18.5 mm
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Card technology: Cotag
Housing protection: IP55
Colour: White
Documentation
