KPB01 Junction Bridge

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: N54592-Z150-A100
EAN/UPC-Code: 7330082007530

Close menu

Product information "KPB01 Junction Bridge"

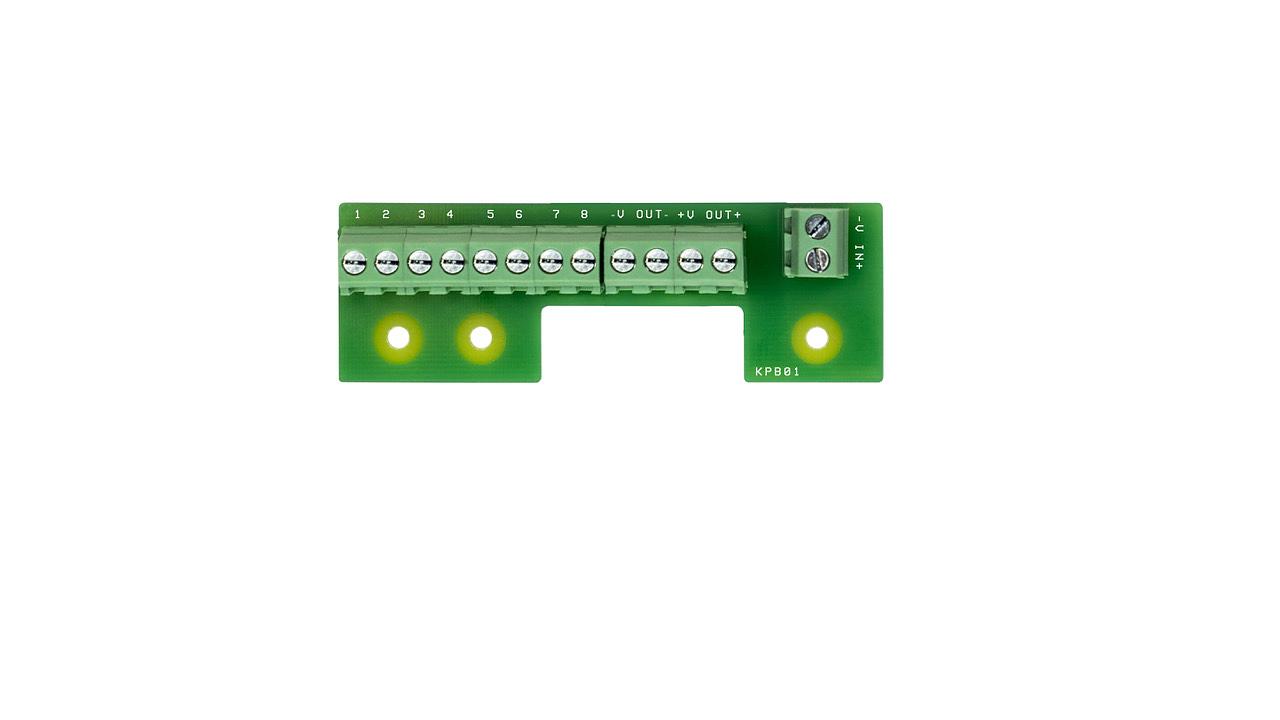

Junction bridge intended for installation inside existing enclosures. Provides a 1:2 branching of voltage supply, and 8 free terminals. Compatible with Omnis and SiPass Integrated.

Gross weight (KG)	0.029
Purchase unit	PCE
EAN/UPC-Code:	7330082007530
Minimum order	1
ECCN	N
Net weight	0.027
Material code	N54592-Z150-A100
Statistical code	85319000
Country of origin	PL

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Power output:	Max. 57V
Outputs:	2 Voltage Outputs & one 8-pole terminal block.
Inputs:	1 Voltage Input
Weight:	20 grams

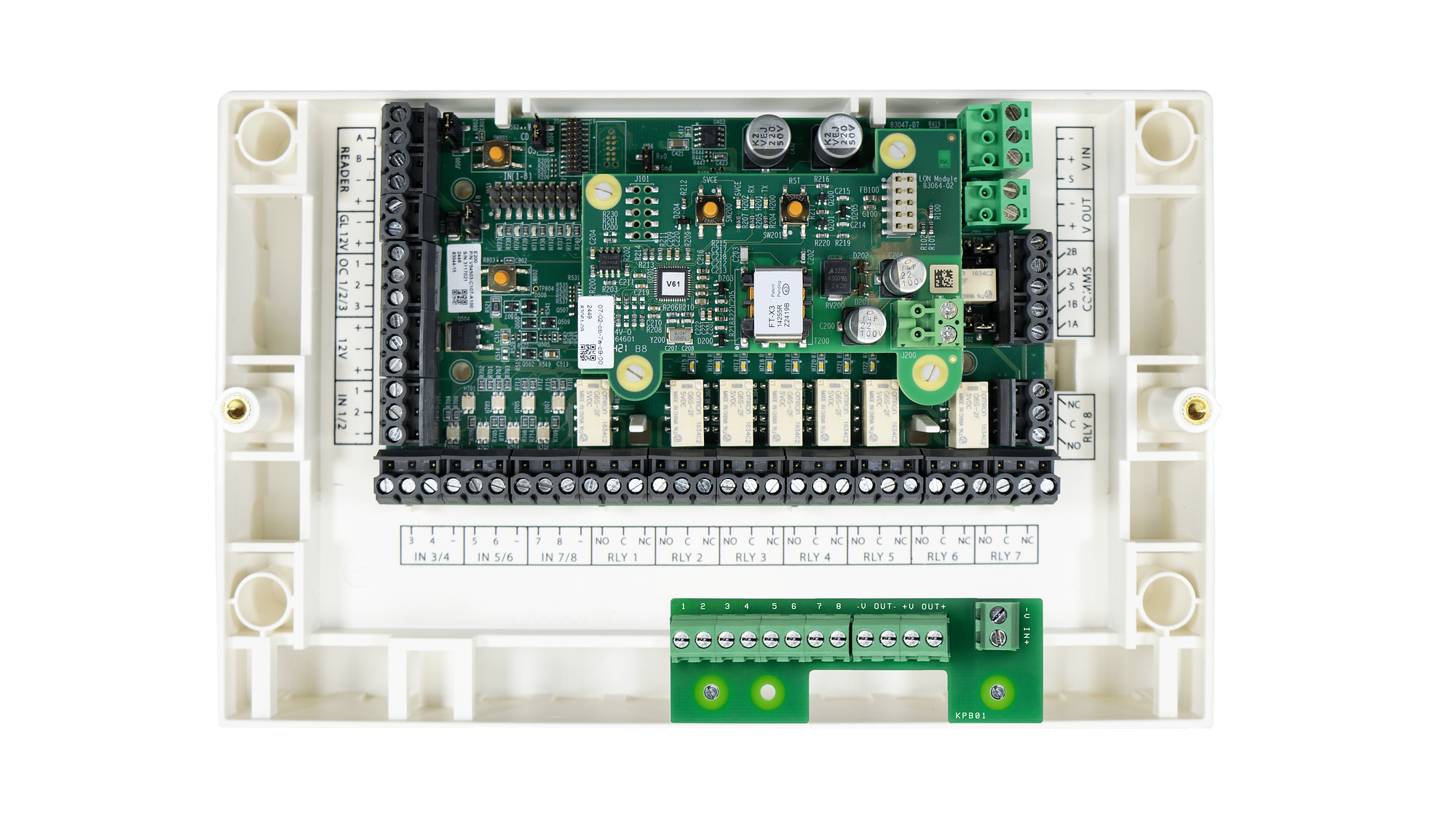

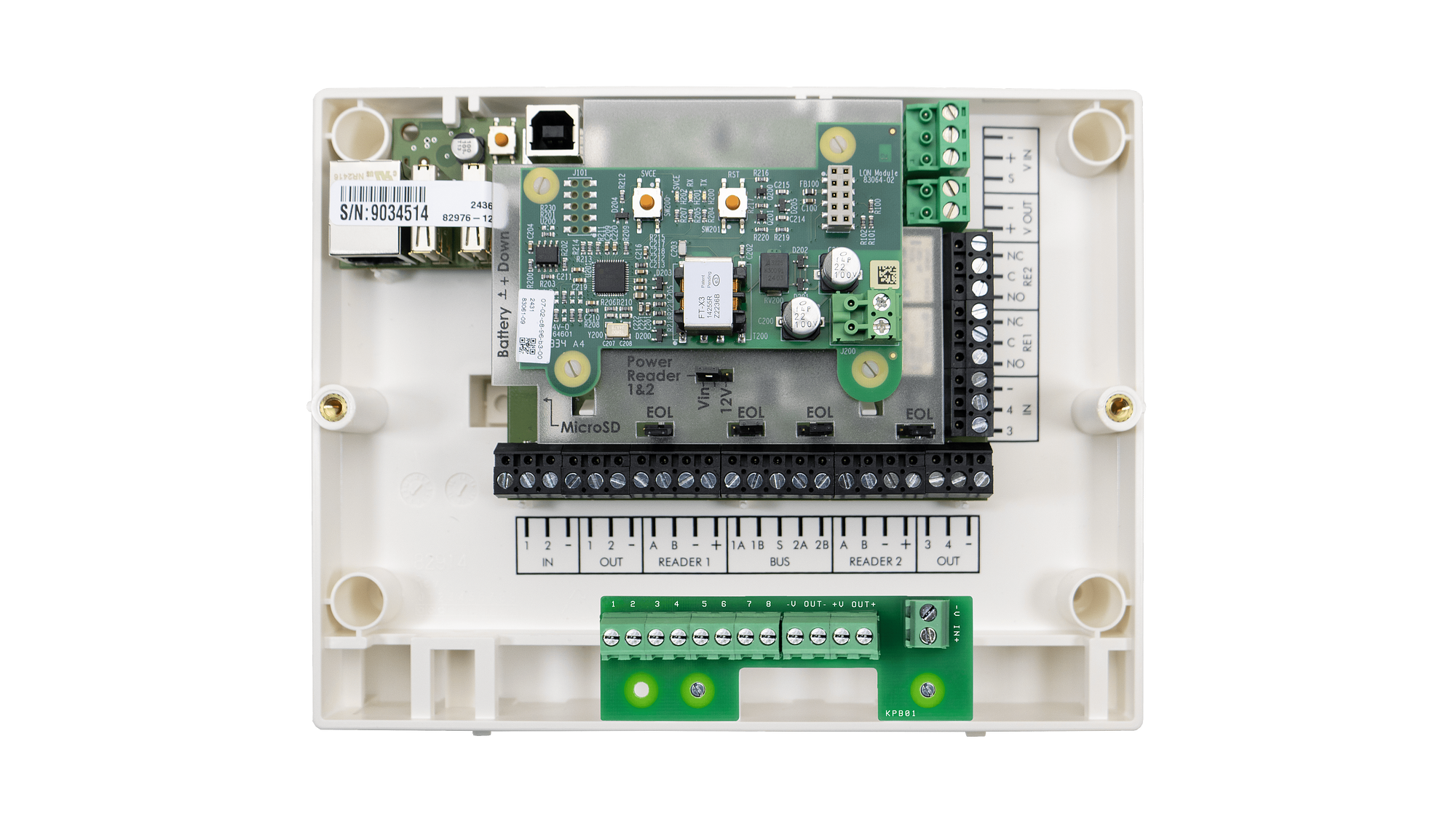

Installation:	Inside compatible enclosures. Omnis E100, E200, E500. SiPass Integrated ACC-AP, ACC-APM1220, ACC-APM2420, MFI
Dimensions (W x H x D):	86 x 28 x 23 mm
Current consumption: maximum:	2A @ 24V DC
Colour:	Green
Tamper contact:	No. Intended for mounting inside tamper-protected enclosures.
