PSU241038 24V PSU 10A, SPACE - 38Ah BATS | Power Supplies & Batteries | Auxiliary | Products | Access Control

Preview: PSU241038 24V PSU 10A, SPACE - 38Ah BATS

PSU241038 24V PSU 10A, SPACE - 38Ah BATS

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: N54545-Z166-A100

Close menu

Product information "PSU241038 24V PSU 10A, SPACE - 38Ah BATS"

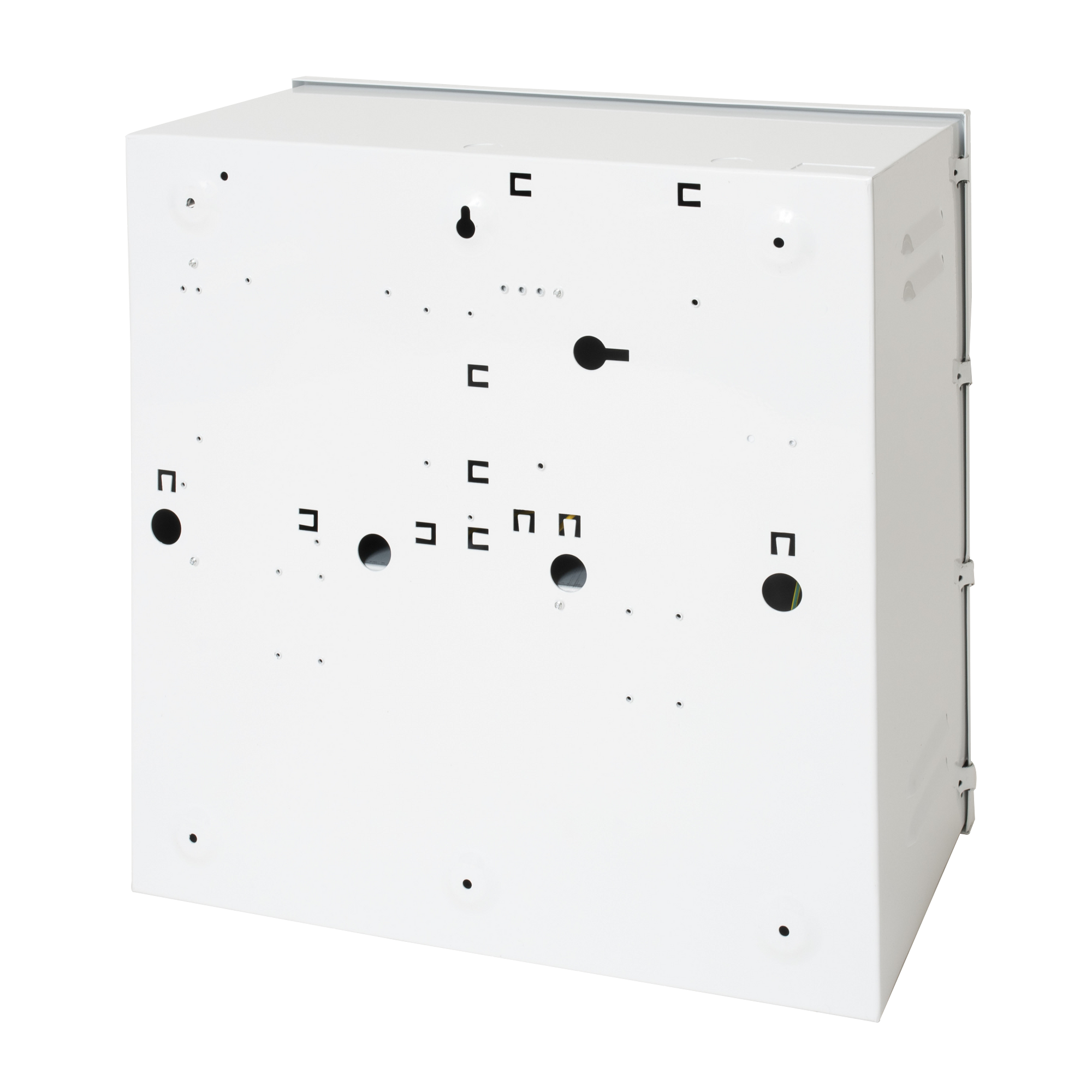

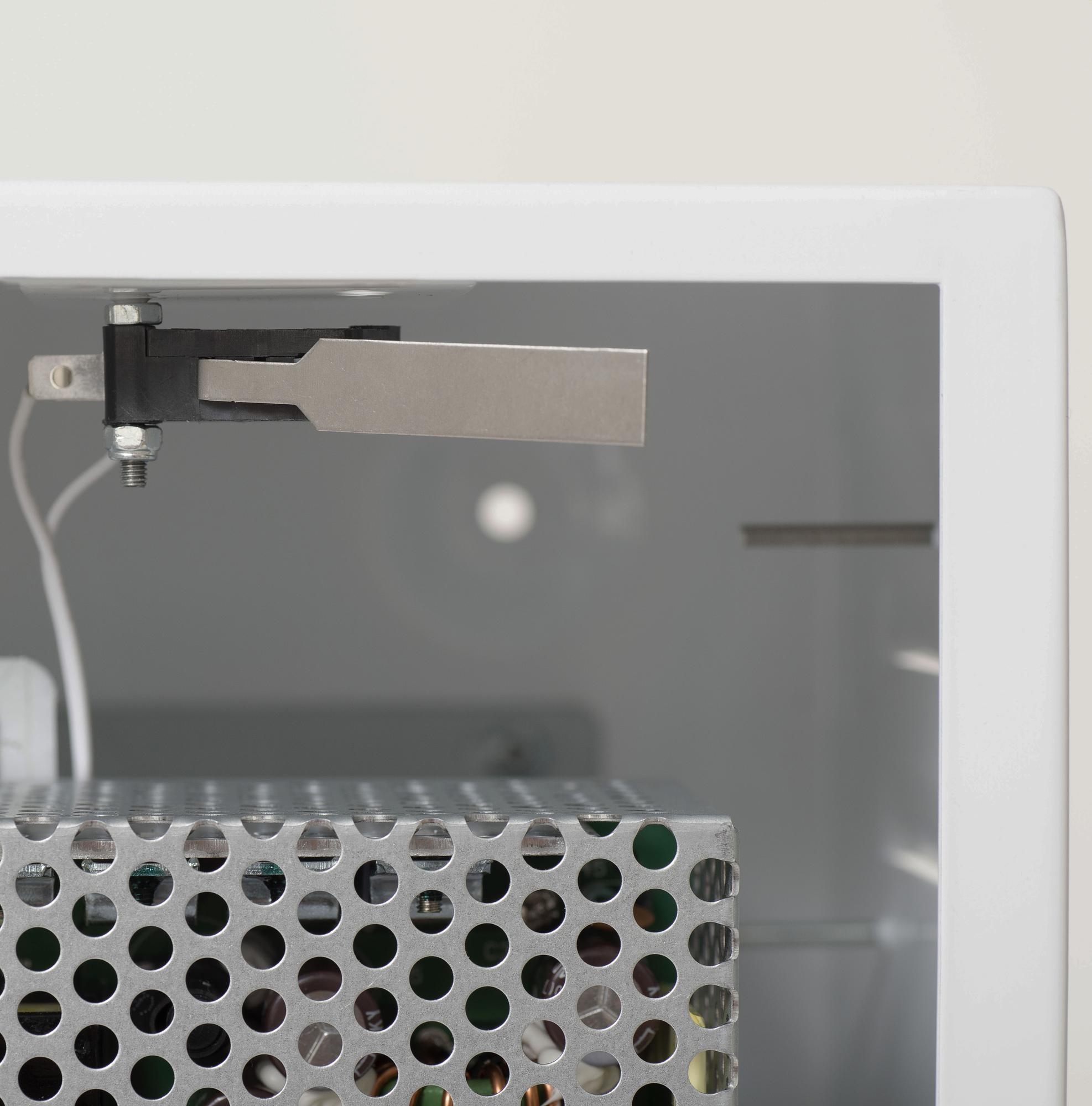

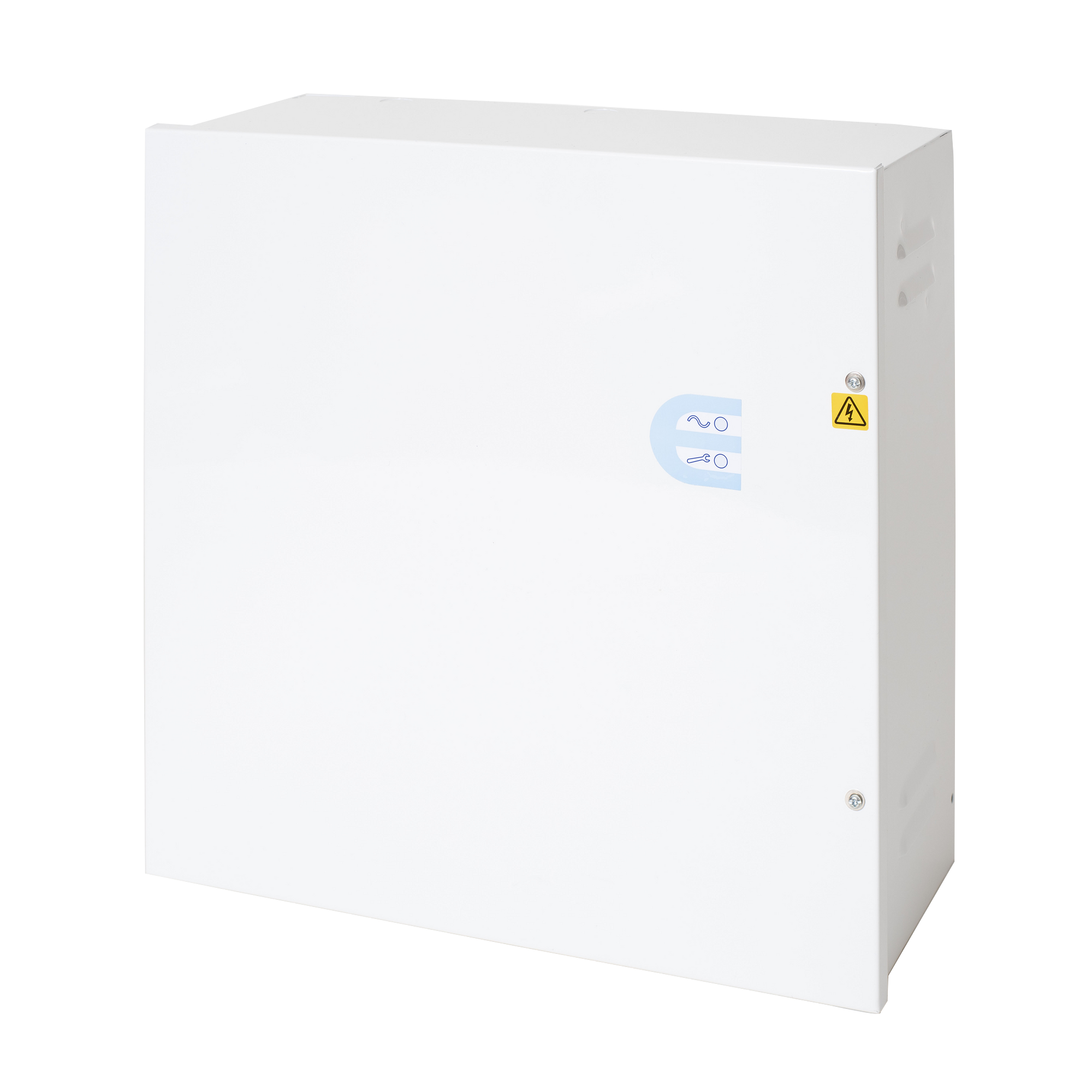

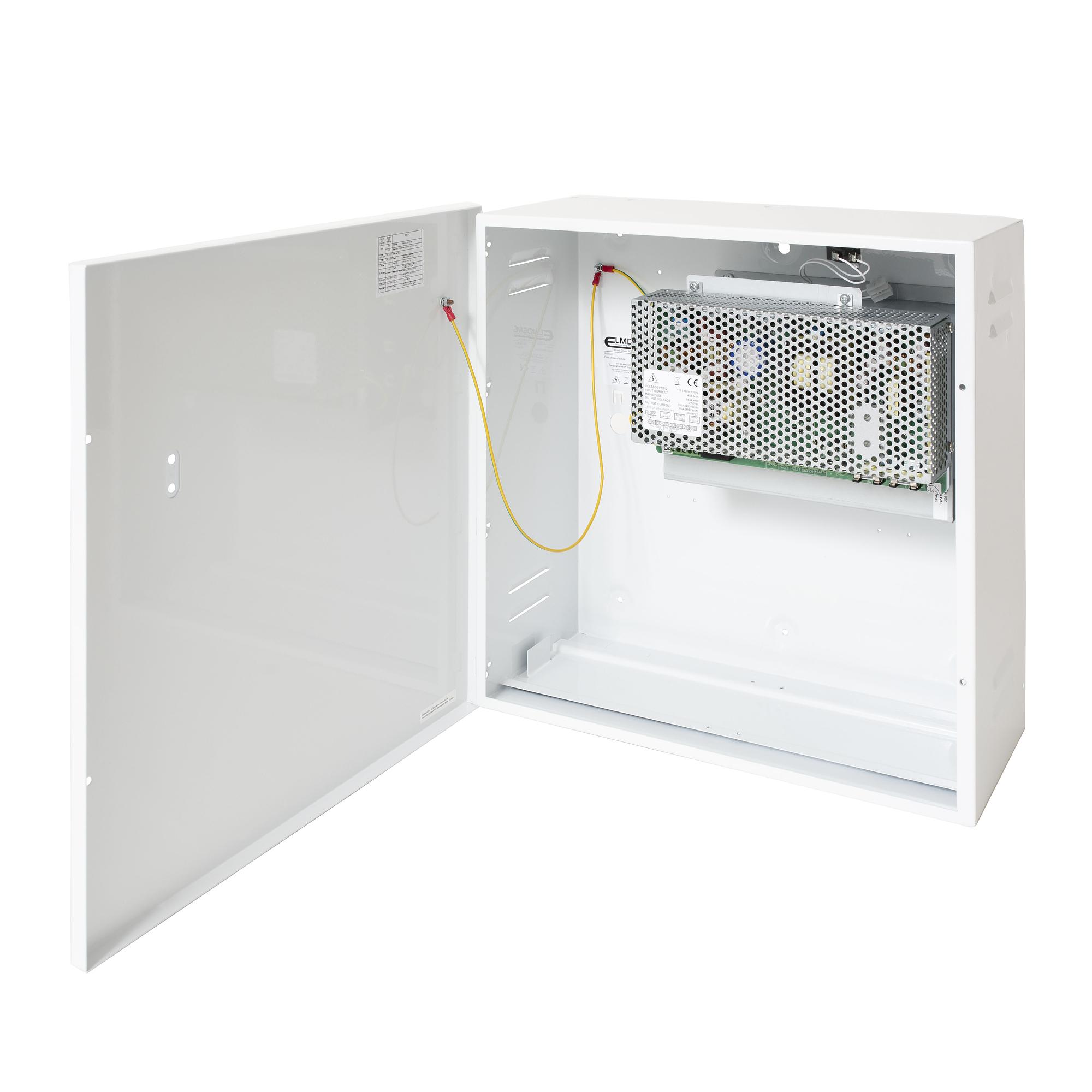

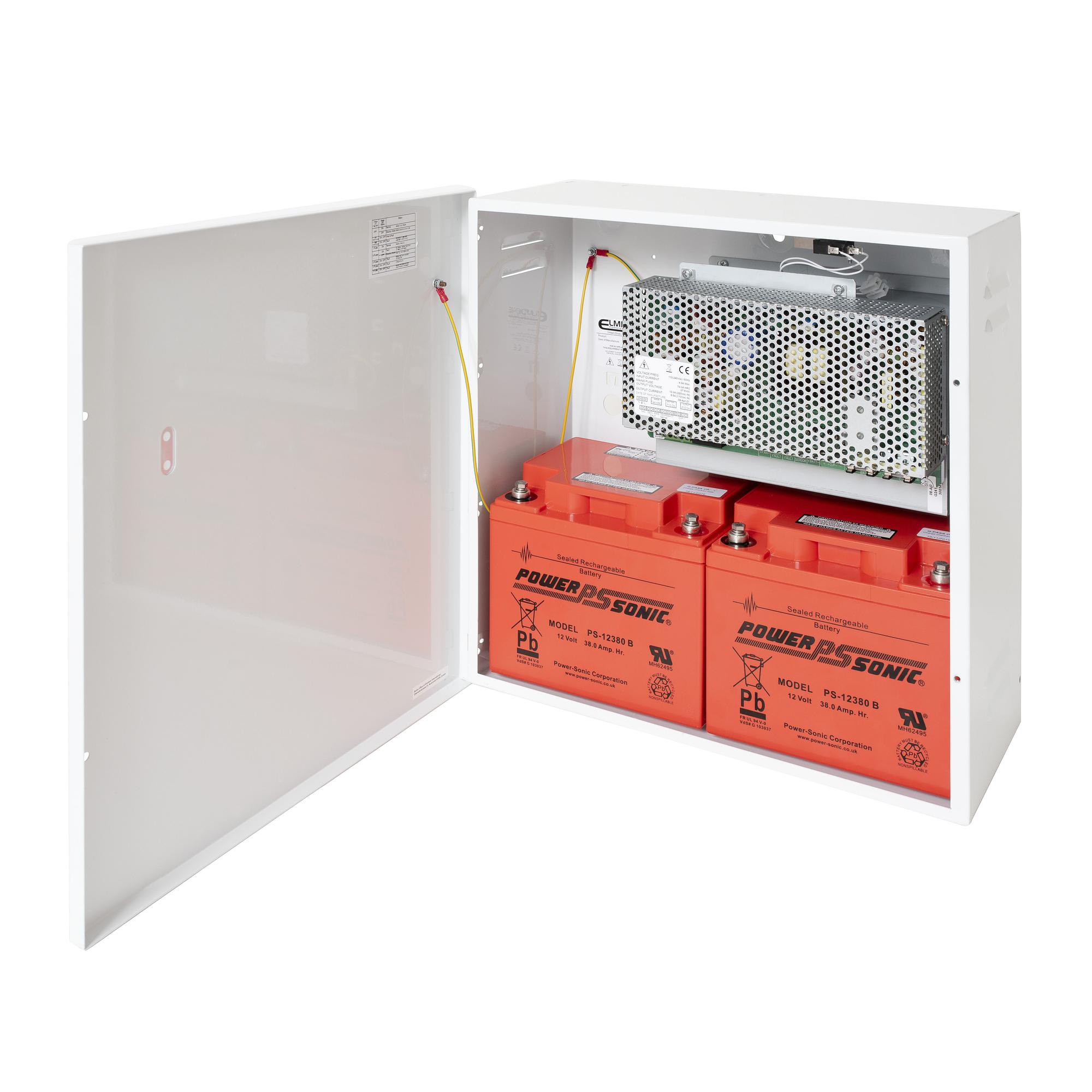

The PSU241038 is a self contained switch mode power supply 24v DC, 10.0 A rated with space for 2 x 38Ah batteries. Additional features include; 110-240vAC input sesning, deep discharge protection, selection of fault outputs, external LED's for fault diagnosis, tamper protection for lid and removal. Housed in a neutral colour, mild steel enclosure.

Close menu

Certificate (CE) - Issued by Supplier, on 20/11/2020

Gross weight (KG)	9.63
Purchase unit	PCE
Minimum order	1
Country of origin	TW
Net weight	9.200
Statistical code	85044060
ECCN	EAR99
Material code	N54545-Z166-A100

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Weight:	9.63Kg excludes batteries
Supply voltage:	110-240v Ac @ 50Hz
Quiescent current:	30mA
Protection rating:	IP30 - IK08
Colour:	White
Dimensions (W x H x D):	425 x 425 x 180 (mm)
