PSU120217 12V PSU 2.0A SPACE 17Ah BATS

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: N54545-Z165-A100

Close menu

Product information "PSU120217 12V PSU 2.0A SPACE 17Ah BATS"

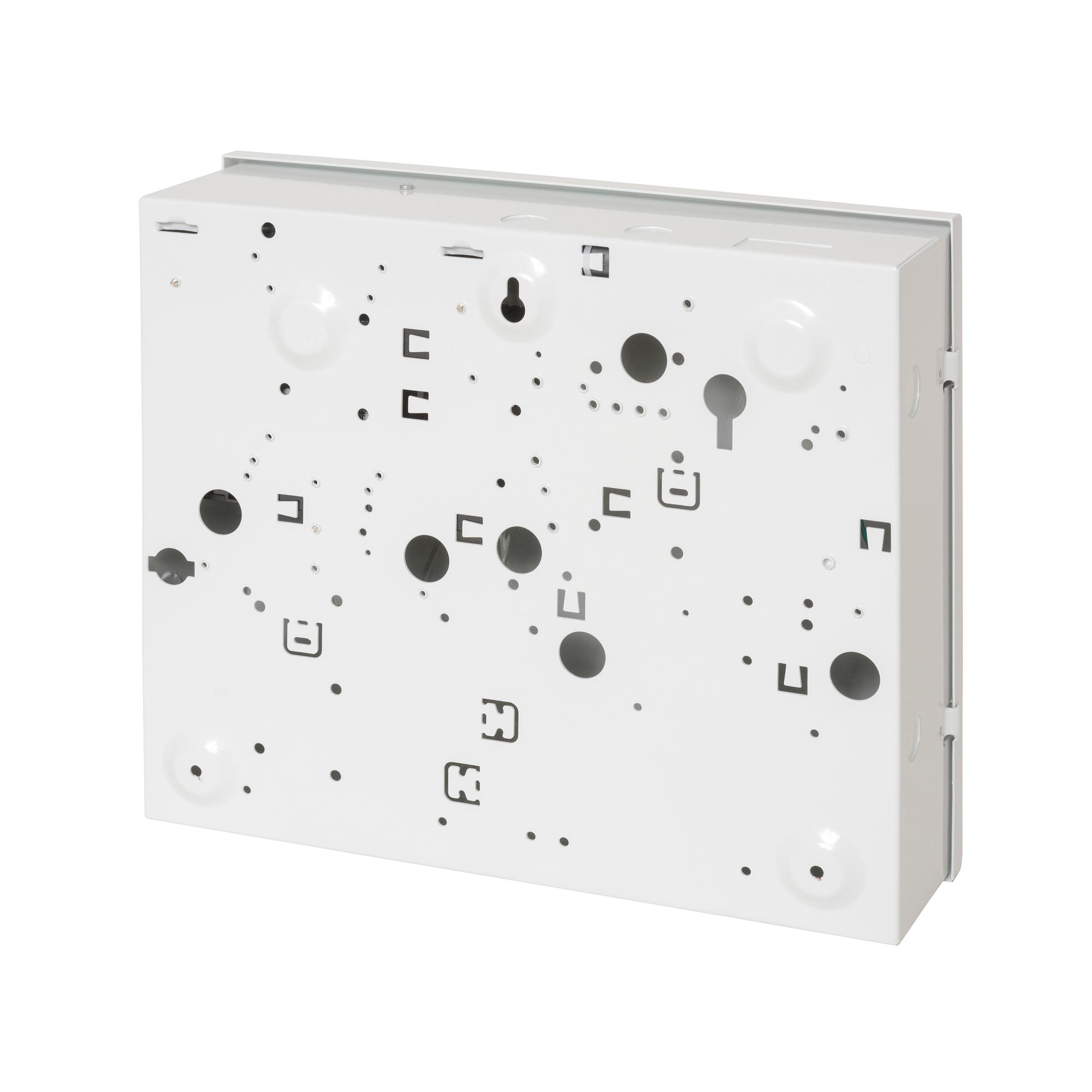

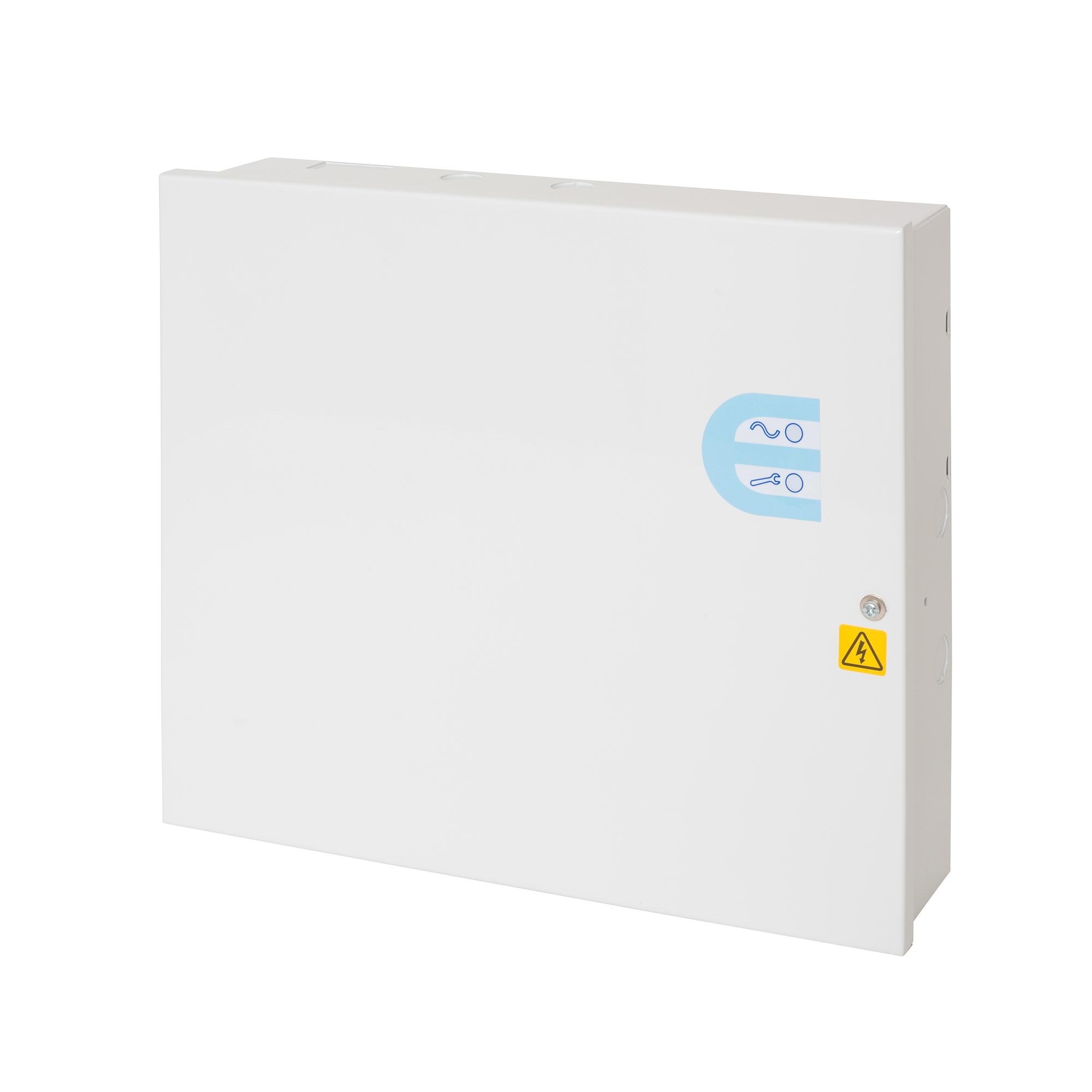

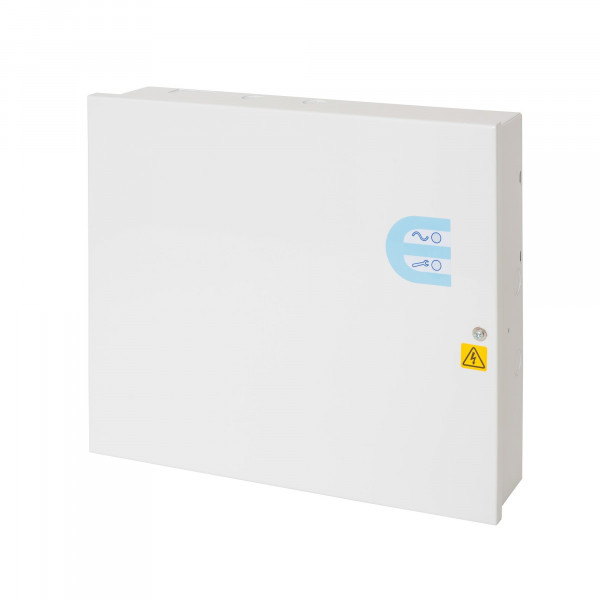

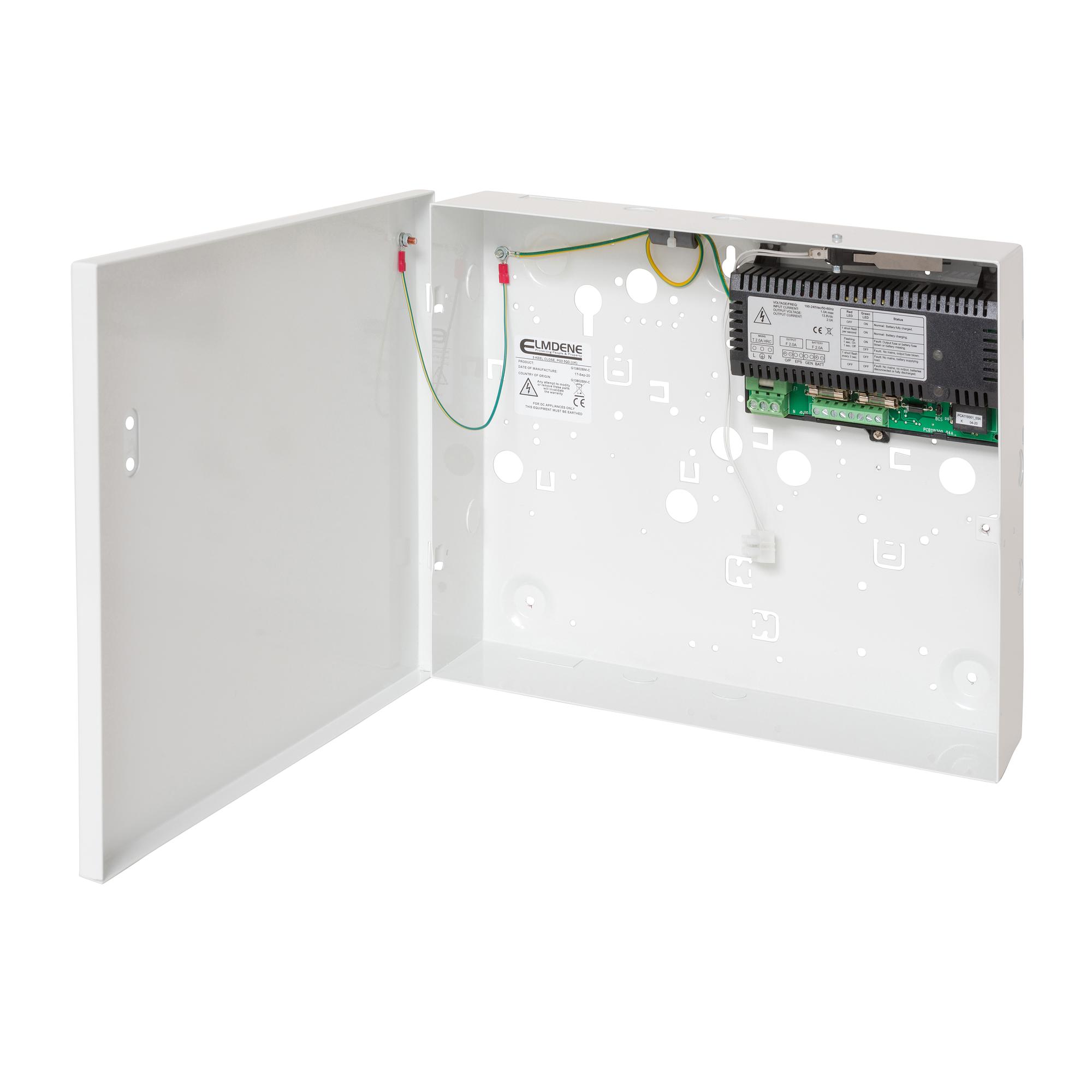

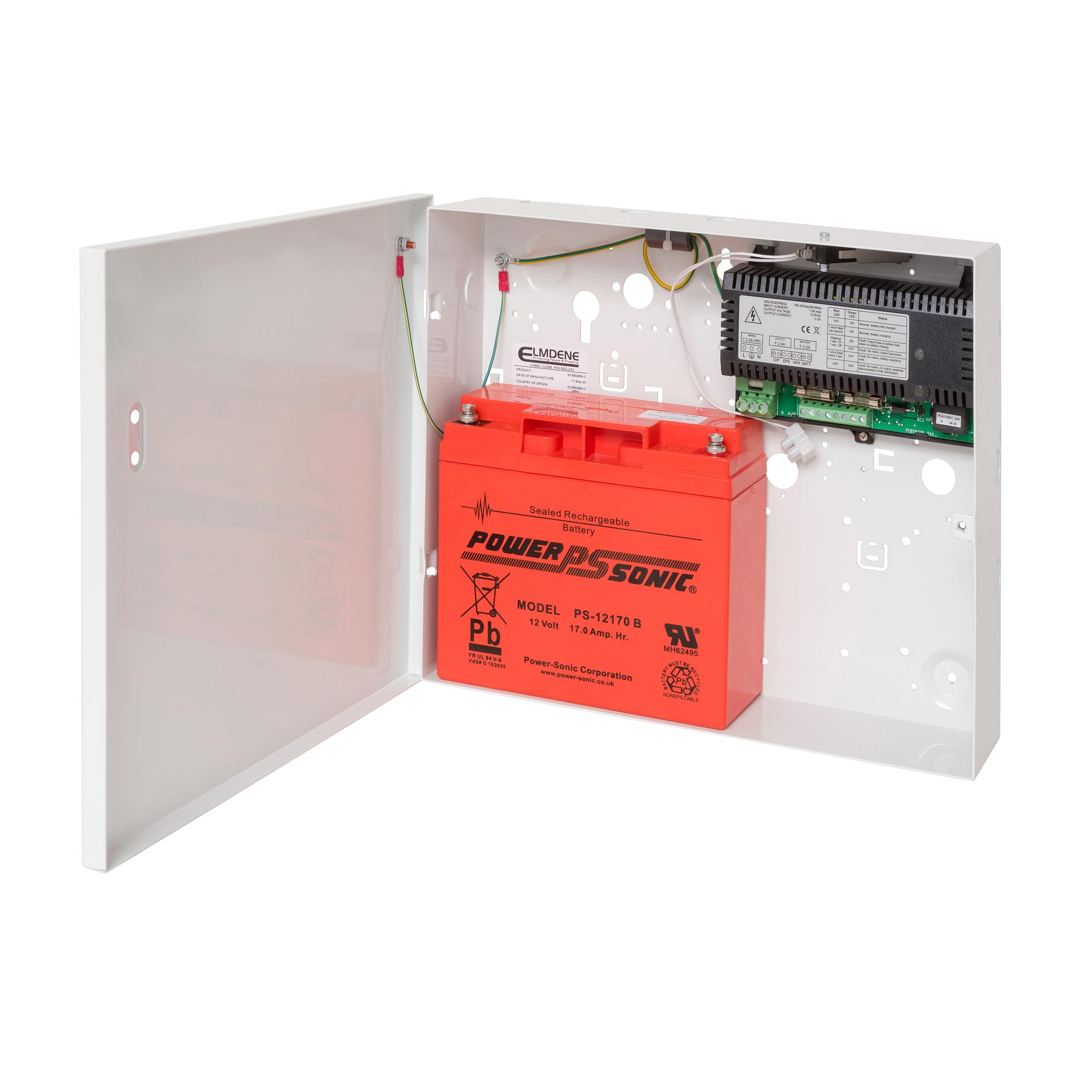

The PSU120217 is a self contained switch mode 12v 2.0 A switch mode power supply, plus 0.5A for battery recharge. Additional features include; deep discharge protection, selection of fault outputs, external LED's for fault diagnosis, tamper protection and space for a 17Ah sealed lead acid battery. Housed in a mild steel enclosure with space for various interface cards.

Close menu

Gross weight (KG)	3.28
Purchase unit	PCE
Minimum order	1
ECCN	N
Material code	N54545-Z165-A100
Statistical code	85044060
Country of origin	CN
Net weight	3.120

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Operating temperature:	-10°C ~ +40°C, 95% RH
Dimensions (W x H x D):	180 x 335 x 80 (mm)
Weight (without battery):	3.28Kg (Gross) / 3.12Kg (Nett)
Output voltage:	12v DC
Battery:	1 x 12v 17Ah Max Capacity
Material:	1.2mm mild steel
LED Indicators:	External
Installation:	Internal
Input voltage:	100-240vAC
Storage temperature:	-20°C ~ +80°C
