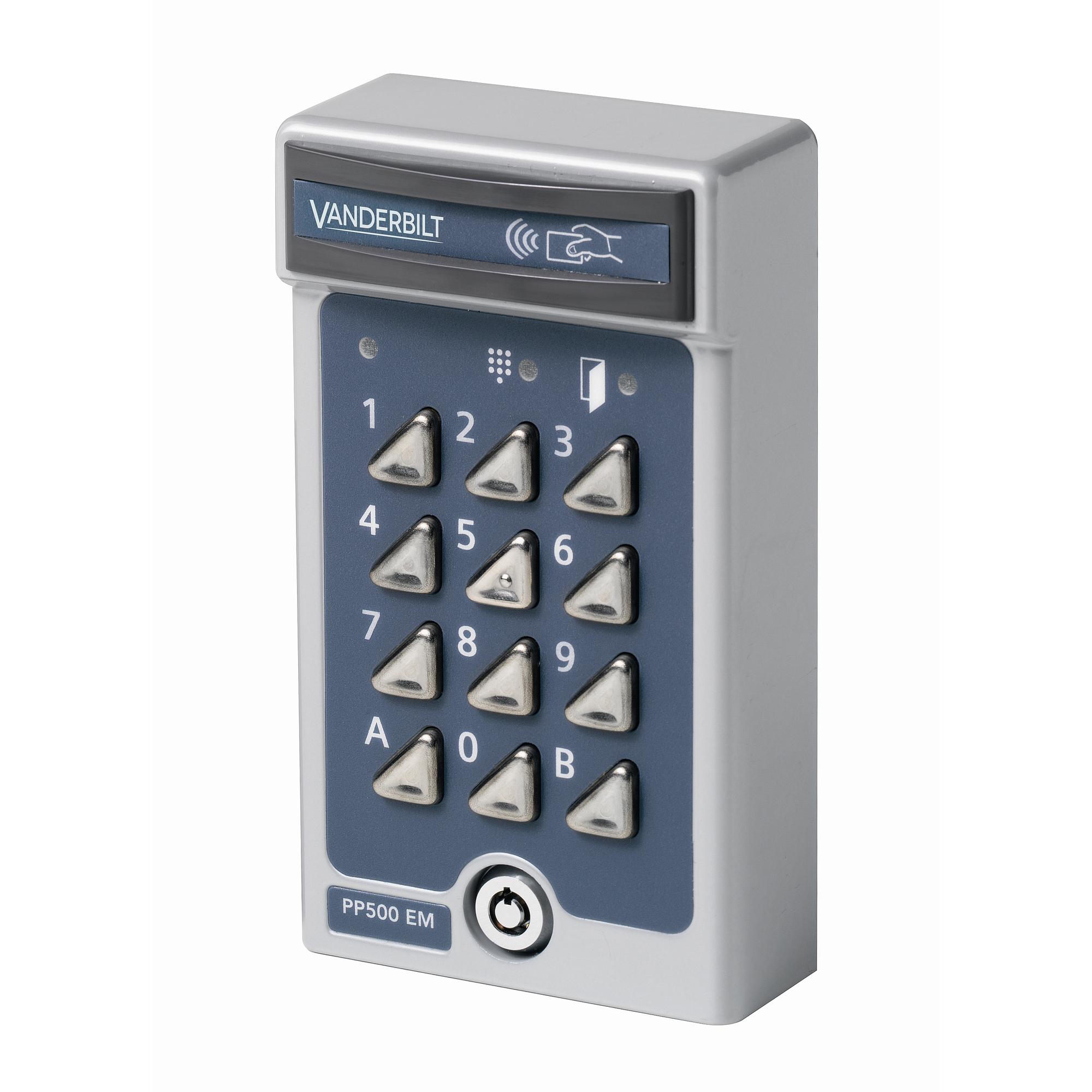

PP500-EM Prox 125kHz Reader with keypad
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54501-F1-A1
- EAN/UPC-Code: 4025515473206
Product information "PP500-EM Prox 125kHz Reader with keypad"
The PP500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It has a position indicator light and an illuminated keypad
which makes it easy to use in dark places. It also includes a tamper switch for enhanced security.
When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An
additional benefit of BC-Link is that it supports online status monitoring.
Housing material: | Cast metal with stainless steel keys and security lock |
Card read distance: | Up to 5 cm |
Interface to controller: | BC-Link, Clock&Data or Wiegand |
Keypad: | Stainless steel keys 0-9, A, B |
Tamper switch: | Yes |
Housing: | Cast metal with stainless steel keys and security lock |
Tamper protection: | Yes |
Housing protection (EN 60529): | IP54 |
Colour: | Grey |
Card compatibility: | IB41-EM, IB42-EM, IB44-EM, IB45-EM |
Current consumption: | 30 mA @ 12 VDC 17 mA @ 24 VDC |
Weight: | 1.35 kg |
Dimensions (W x H x D): | 80 x 140 x 40 (mm) |
Operation temperature: | -30°C ~ +50°C |
Operating temperature: | -30 ~ +50 °C |
Card technology: | EM4102 (also known as Miro or UNIQUE 125 KHz) |
Housing protection: | IP54 |
Environment: | Indoor or outdoor use |
Indicators: | 3 x LED (red/yellow/green) 1 x Buzzer |
Operating voltage: | 12 ~ 24 VDC |
- Datasheet - (English) - pp500em
- Installation Manual - (Multilingual) - pp500em
- Product Support Guide - (English) - SPCA210 Card reader wiring
- Product Support Guide - (English) - Readers wiring and Configuration
- Product Support Guide - (English) - How to connect 2 PP500 readers to one E200 node
- Product Support Guide - (Swedish) - Hur man kopplar två PP500 till en E200 nod
- Application Note - (English) - PP500 Cotag EM connected to SPCA210 100 via Clock Data
- Application Note - (English) - PP500 Cotag EM to SPCA210 100 via Wiegand 26bit
- Application Note - (English) - PP500 Cotag EM to SPCA210 100 via Wiegand 48bit
