PM500-EM Prox 125kHz Reader panel mount

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V24246-F3903-A1
  • 4025515473510
Product information "PM500-EM Prox 125kHz Reader panel mount"

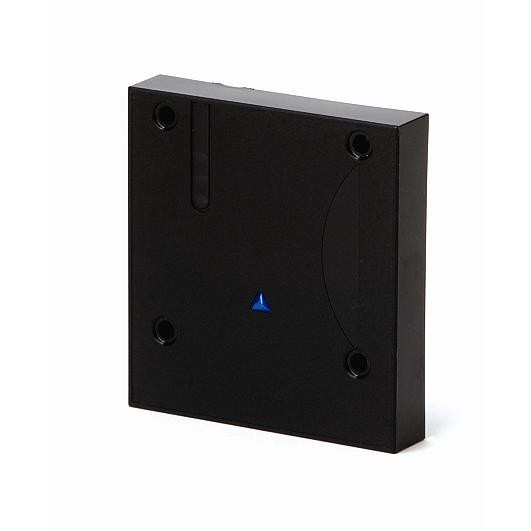

The PM500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It is designed to fit most remote call point enclosures. It is supplied with a custom-machined perspex front panel for increased aesthetic appeal. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Gross weight (KG) 0.18
Purchase unit PCE
EAN/UPC-Code: 4025515473510
Minimum order 1
Country of origin PH
ECCN EAR99
Statistical code 84716070
Net weight 0.171
Material code V24246-F3903-A1
Housing protection (EN 60529): IP55
Colour: Black
Weight: 0.15 kg
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility: IB41-EM, IB42-EM IB44-EM, IB45-EM
Tamper protection: No
Card read distance: Up to 5 cm
Tamper switch: No
Current consumption: 20 mA @ 12V DC 24 mA @ 24V DC
Housing material: High impact polycarbonate outer casing, with encapsulated electronics
Housing: High impact polycarbonate outer casing, with encapsulated electronics
Operation temperature: -30°C ~ +50°C
Operating temperature: -30 ~ +50 °C
Operating voltage: 10.6 ~ 32 VDC
Environment: Indoor or outdoor use
Keypad: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Housing protection: IP55
Dimensions (W x H x D): 68 x 73 x 13.5 (mm)
