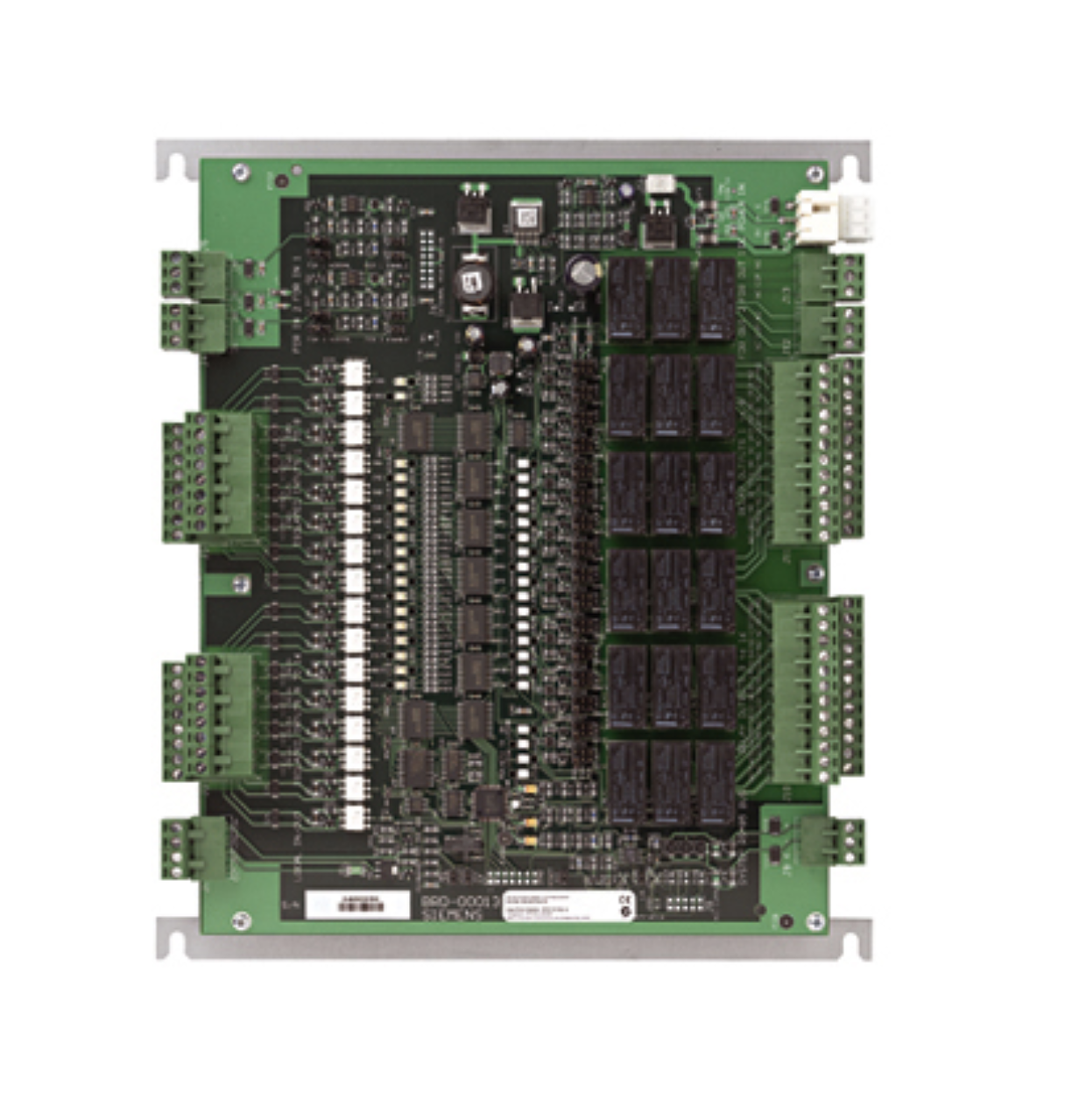

AFO5100 Output Module

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V6FL7820-8CC10
  • 4025515475132
Product information "AFO5100 Output Module"
The AFO5100 is an advanced‚ multi-purpose module that provides an interface between powered field-level input contact devices (such as elevator buttons) and output devices (such as override mechanisms) to the advanced central controller (AC5100‚ AC5102 or AC5200). It is designed for use in elevators that are integrated within an access control environment. A single AFO5100 can provide access control for up to 16 floors and multiple AFO5100 modules can be combined in an elevator system to provide access control for all floors. The fire override mechanism allows floors to be made automatically accessible during an emergency situation‚ a critical feature for sites where legislation requires strict emergency responses.
Gross weight (KG) 1.47
Purchase unit PCE
EAN/UPC-Code: 4025515475132
Minimum order 1
Country of origin HU
Material code V6FL7820-8CC10
Net weight 1.392
Statistical code 84733020
Dimensions (W x H x D): 216 x 267 x 30 mm
Weight: 1.3 kg
Outputs: 16 x Relays (30 VDC‚ 2 A) 1 x Tamper (open-collector 12 VDC‚ 100 mA) 2 x Fire override relays (30 VDC‚ 2 A)
Inputs: 16 x Isolated (unsupervised external voltage required) 1 x Tamper (internally supplied) 2 x Fire override (potential-free or internally supplied)
Indicators: Power‚ Activity‚ Communication Inputs‚ Output Peripheral supplies Fire override
Power consumption: 50 W
Operating voltage: 12 VDC ±10% or 24 VDC ±10%
Interface: To controller: RS485
Interfaces: Al controllore: RS485
Operating temperature: 0 to +50 °C
Approval: CE‚ UL294‚ C-Tick
Firmware: Flash upgradeable
