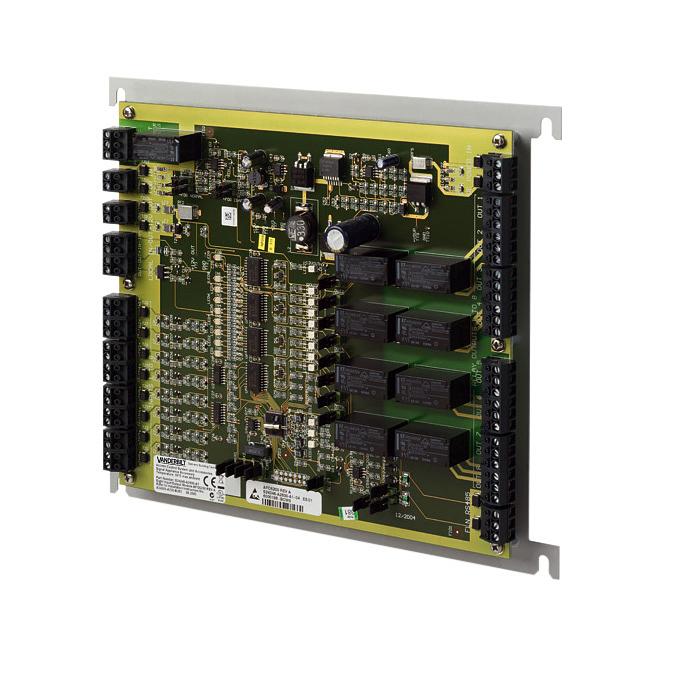

AFO5200 8-Input/Output Module

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V24246-A2600-A1
EAN/UPC-Code: 4025515475323

Close menu

Product information "AFO5200 8-Input/Output Module"

The AFO5200 is an advanced‚ multi-purpose module that provides an interface between field-level input devices (such as passive infrared detectors) and output devices (such as locking devices) to the advanced central controller (AC5100‚ AC5102 or AC5200).

Close menu

Gross weight (KG)	1.1
Purchase unit	PCE
EAN/UPC-Code:	4025515475323
Minimum order	1
Country of origin	HU
Material code	V24246-A2600-A1
Net weight	1.045
Statistical code	84733020
ECCN	EAR99

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Dimensions (W x H x D):	250 x 210 x 40 mm
Weight:	1 kg
Operating temperature:	0 to +50 °C (32 to 122 °F)
Indicators:	Power, Activity, Communication Inputs, Output Peripheral supplies Fire override
Outputs:	8 x Relays (30 VDC, 2 A) 1 x Local output (open-collector 9.7-12 VDC, 100 mA) 1 x Fire override relays (30 VDC, 2 A)
Inputs:	8 x Isolated (internally supplied, unsupervised or supervised) 1 x Local input 1 x Fire override (potential-free or internally supplied)
Approval:	CE, UL294, C-Tick
Current consumption:	Max. 2 A at 12 V, max. 1.5 A at 24 V
Operating voltage:	12 VDC ±10% or 24 VDC ±10%
Interface:	To controller: RS485
Interfaces:	Al controllore: RS485
Firmware:	Flash upgradeable
