ACT5 Codelock - 1 Door, 10 Codes

ACT5 Codelock - 1 Door, 10 Codes
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54521-C110-A100
  • EAN/UPC-Code: 7330082004409
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "ACT5 Codelock - 1 Door, 10 Codes"

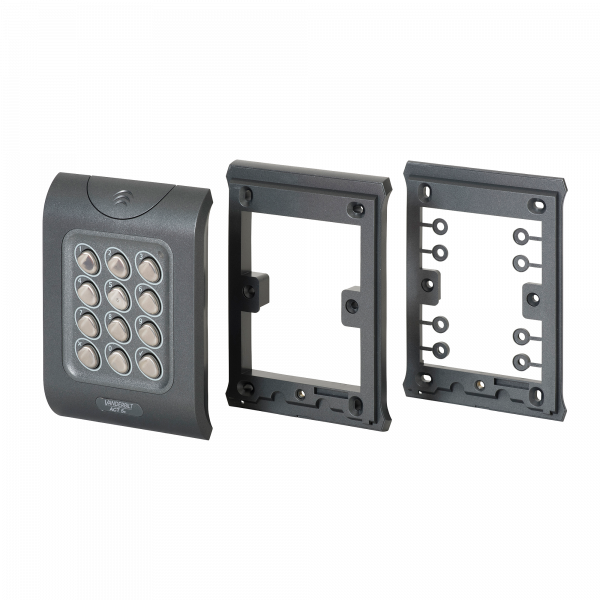

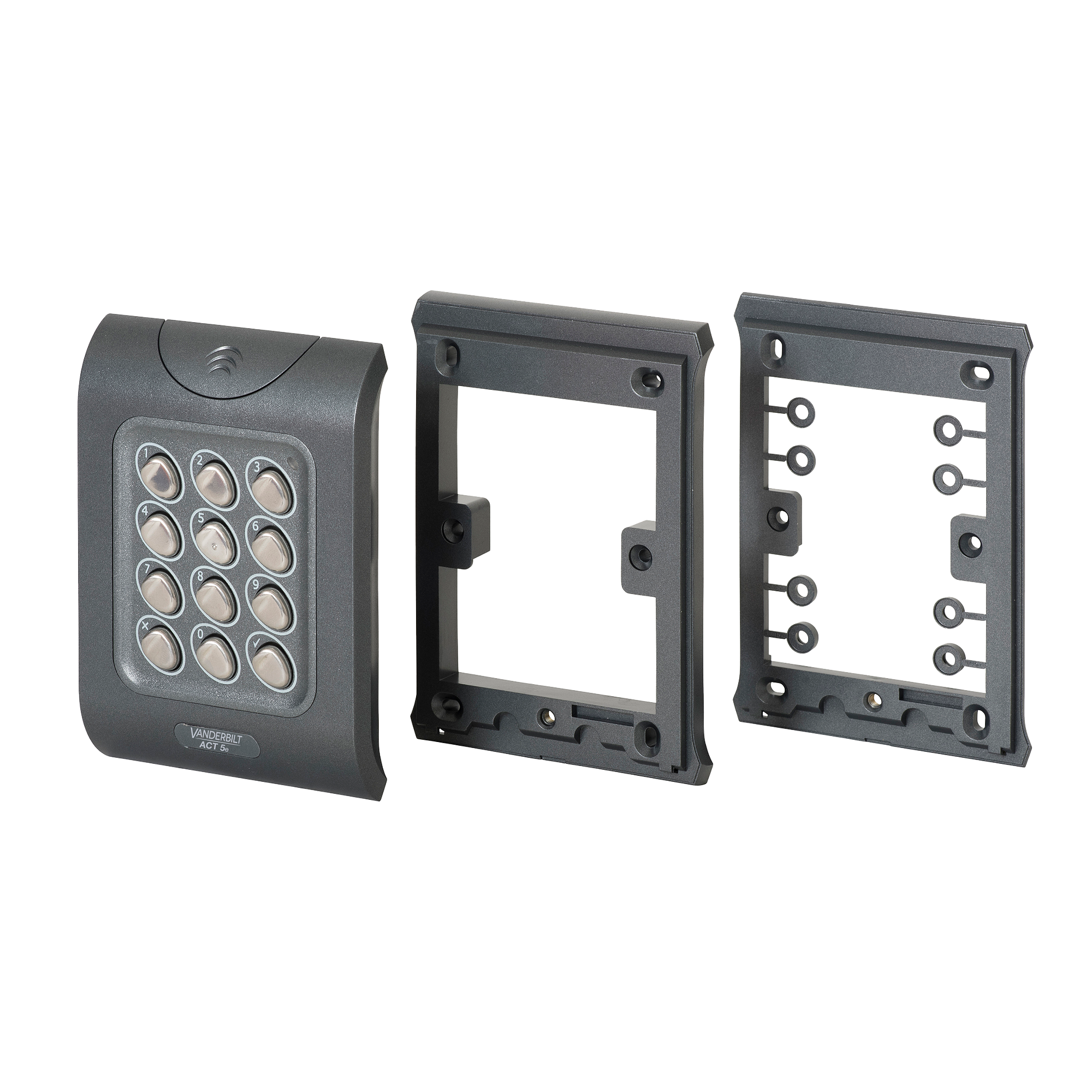

The ACT 5e keypad supports 10 user PIN codes in a stylish IP 55 rated polycarbonate housing with stainless steel keys and potted electronics, allowing for indoor and outdoor installation.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.312
Purchase unit PCE
EAN/UPC-Code: 7330082004409
Minimum order 1
Statistical code 84719000
Material code V54521-C110-A100
ECCN EAR99
Net weight 0.270
Country of origin CN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -40 to +70°C
Weight: 0.225kg
Door capacity: 1
Users: 10
Operating voltage: 12 - 24 Volts AC/DC
Mounting: Surface / flush
Installation: Indoor / outdoor
Current consumption: 30mA (nominal), 120mA (max)
Tamper protection: No
Housing protection: IP55
Dimensions (L x W x H): 94 x 130 x 25mm
